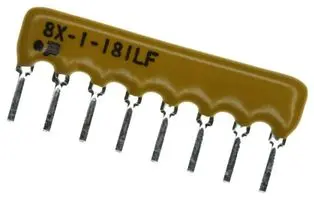

4608X Series
Manufacturer: Bourns Inc.
Beta
⌘K

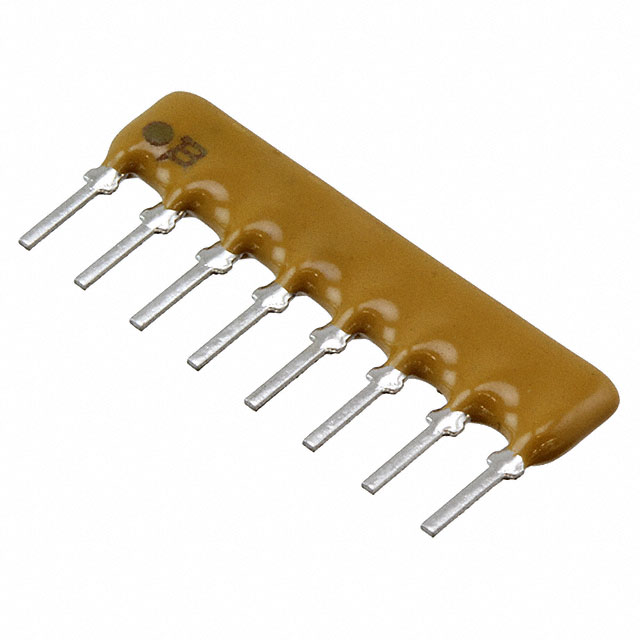

RES THICK FILM NET 1K OHM 2% 1W ±100PPM/°C ISOL CONFORMAL COATED 8-PIN SIP PIN THRU-HOLE BULK
| Part | Temperature Coefficient | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Number of Pins | Package / Case | Power Per Element | Resistance (Ohms) | Number of Resistors | Mounting Type | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Circuit Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 ppm/°C | -55 C | 125 °C | 8-SIP | 8 | 8-SIP | 300 mW | 1k | 4 | Through Hole | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | Isolated | 5.08 mm | 0.2 in | ||
 Bourns Inc. | 100 ppm/°C | -55 C | 125 °C | 8-SIP | 8 | 8-SIP | 300 mW | 4 | Through Hole | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | Isolated | 5.08 mm | 0.2 in | 330 Ohms | ||
Bourns Inc. | 100 ppm/°C | -55 C | 125 °C | 8-SIP | 8 | 8-SIP | 200 mW | 7 | Through Hole | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | Bussed | 5.08 mm | 0.2 in | 270 Ohms | ||
 Bourns Inc. | 100 ppm/°C | -55 C | 125 °C | 8-SIP | 8 | 8-SIP | 200 mW | 7 | Through Hole | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | Bussed | 5.08 mm | 0.2 in | 180 Ohms | ||
 Bourns Inc. | 100 ppm/°C | -55 C | 125 °C | 8-SIP | 8 | 8-SIP | 300 mW | 18k | 4 | Through Hole | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | Isolated | 5.08 mm | 0.2 in | ||
Bourns Inc. | 100 ppm/°C | -55 C | 125 °C | 8-SIP | 8 | 8-SIP | 300 mW | 4 | Through Hole | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | Isolated | 5.08 mm | 0.2 in | 1.5 k | ||
Bourns Inc. | 100 ppm/°C | -55 C | 125 °C | 8-SIP | 8 | 8-SIP | 300 mW | 4 | Through Hole | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | Isolated | 5.08 mm | 0.2 in | 1.2 MΩ | ||
Bourns Inc. | 100 ppm/°C | -55 C | 125 °C | 8-SIP | 8 | 8-SIP | 200 mW | Through Hole | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | Dual Terminator | 5.08 mm | 0.2 in | 470 Ohms 680 Ohms | |||
Bourns Inc. | 100 ppm/°C | -55 C | 125 °C | 8-SIP | 8 | 8-SIP | 300 mW | 4 | Through Hole | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | Isolated | 5.08 mm | 0.2 in | 47 kOhms | ||
Bourns Inc. | 100 ppm/°C | -55 C | 125 °C | 8-SIP | 8 | 8-SIP | 200 mW | 7 | Through Hole | 2 % | 20.27 mm | 0.098 in | 2.49 mm | 0.798 in | Bussed | 5.08 mm | 0.2 in | 560 kOhms |
