396-047 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 47POS 0.125

Part	Material - Insulation	Termination Rows	Card Thickness [Max]	Card Thickness [Min]	Number of Rows	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Color	Pitch	Pitch	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions/Bay/Row	Contact Type	Read Out	Number of Positions	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

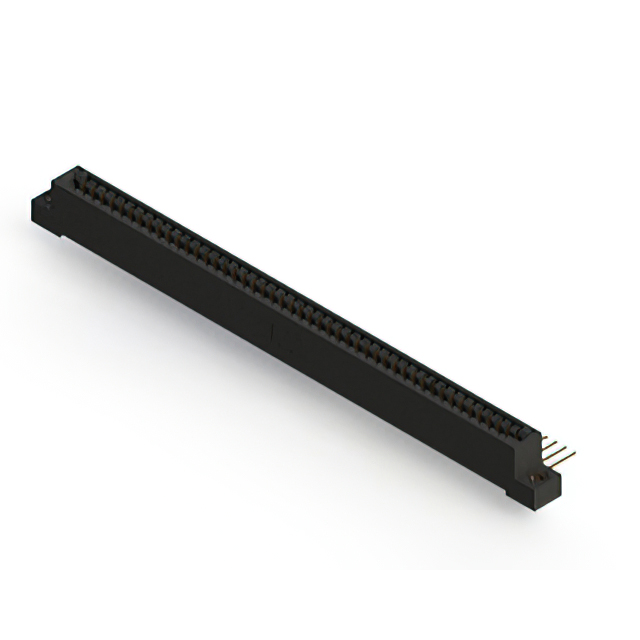

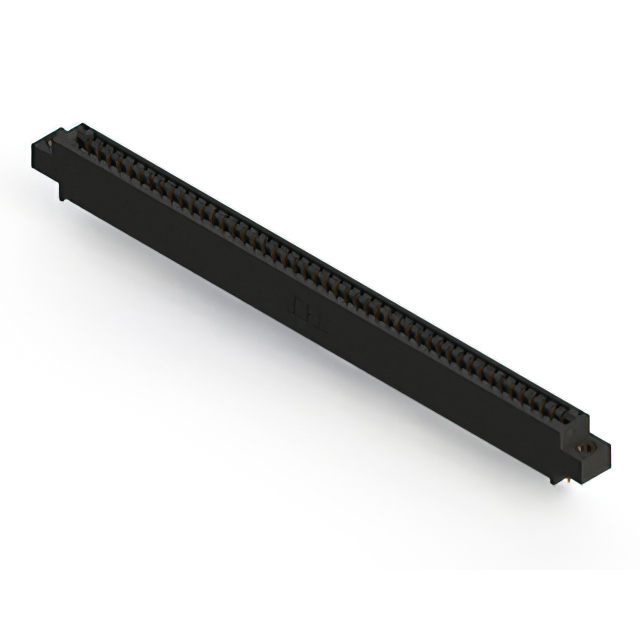

EDAC Inc. 396-047-520-607	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	0.25 Ám	10 Áin	Gold	Through Hole	Black	3.18 mm	0.125 in	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	47	Cantilever	Single	47	Solder	M3 Threaded Insert Top Mount Opening

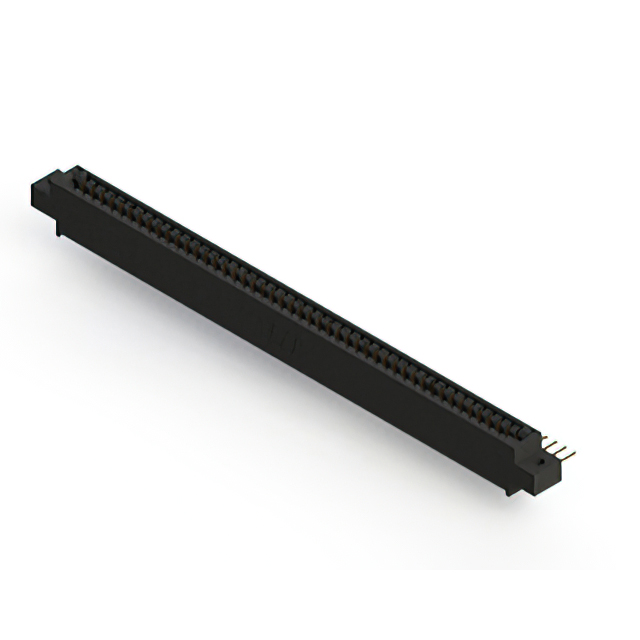

EDAC Inc. 396-047-559-602	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	0.25 Ám	10 Áin	Gold	Right Angle Through Hole	Black	3.18 mm	0.125 in	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	47	Cantilever	Single	47	Solder Wire Wrap		3.25 mm	0.128 "

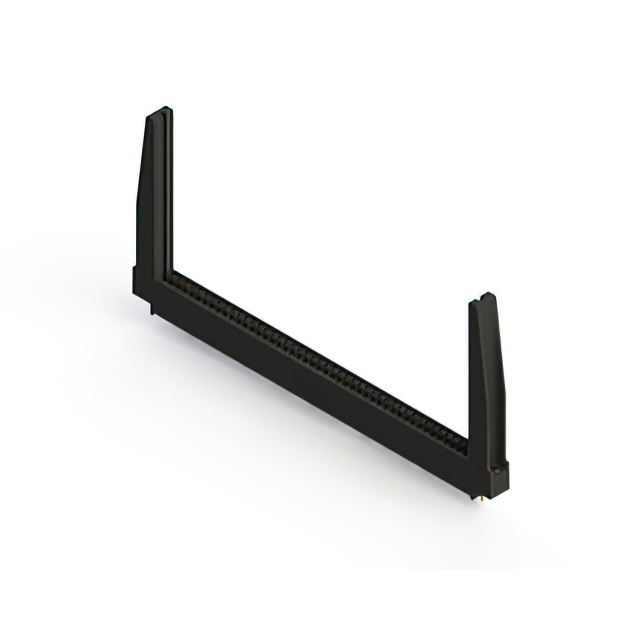

EDAC Inc. 396-047-540-678	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	0.25 Ám	10 Áin	Gold	Through Hole	Black	3.18 mm	0.125 in	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	47	Cantilever	Single	47	Wire Wrap	4-40 Threaded Insert Top Mount Opening

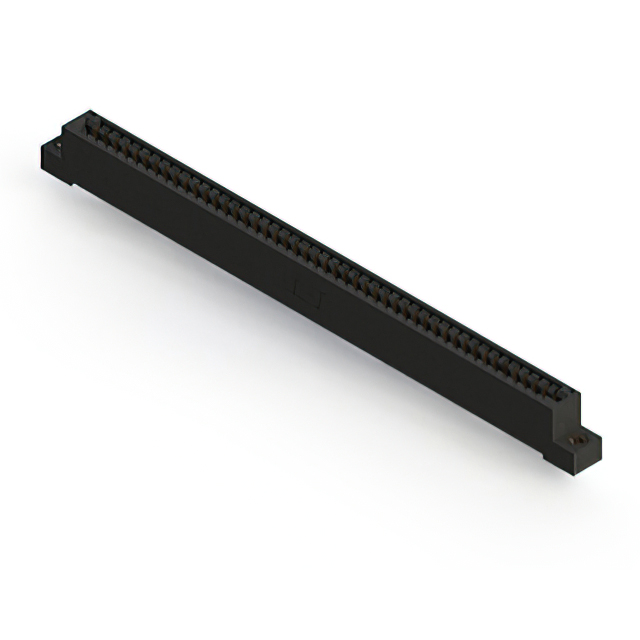

EDAC Inc. 396-047-541-107	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	0.25 Ám	10 Áin	Gold	Through Hole	Black	3.18 mm	0.125 in	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	47	Cantilever	Single	47	Wire Wrap	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 396-047-526-604	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	0.25 Ám	10 Áin	Gold	Through Hole	Black	3.18 mm	0.125 in	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	47	Cantilever	Single	47	Solder		3.96 mm	0.156 "
EDAC Inc. 396-047-558-107	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	0.25 Ám	10 Áin	Gold	Right Angle Through Hole	Black	3.18 mm	0.125 in	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	47	Cantilever	Single	47	Solder Wire Wrap	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 396-047-526-602	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	0.25 Ám	10 Áin	Gold	Through Hole	Black	3.18 mm	0.125 in	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	47	Cantilever	Single	47	Solder		3.25 mm	0.128 "
EDAC Inc. 396-047-559-101	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	0.25 Ám	10 Áin	Gold	Right Angle Through Hole	Black	3.18 mm	0.125 in	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	47	Cantilever	Single	47	Solder Wire Wrap

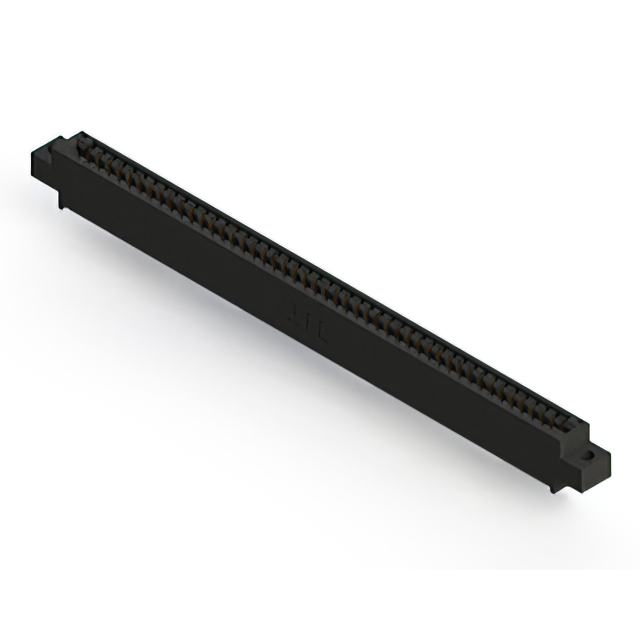

EDAC Inc. 396-047-521-604	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	0.25 Ám	10 Áin	Gold	Through Hole	Black	3.18 mm	0.125 in	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	47	Cantilever	Single	47	Solder		3.96 mm	0.156 "
EDAC Inc. 396-047-526-104	Polyester Thermoplastic	1	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Female	0.25 Ám	10 Áin	Gold	Through Hole	Black	3.18 mm	0.125 in	Non Specified - Single Edge	-40 C	105 ░C	Copper Alloy	47	Cantilever	Single	47	Solder	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "
