5859/10 Series

Catalog

HU WIRE PTFE /1000 FT /EACH ROHS COMPLIANT: YES

Part	Cable Type	Conductor Material	Voltage	Jacket Color	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Qualification	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
ALPHA WIRE 5859/10 WH001	Hook-Up	Copper Silver Coated	600 V	White	304.8 m	1000 ft	-60 °C	200 °C	0.3 mm	0.012 in	Polytetrafluoroethylene (PTFE)	MIL-W-16878/4 Type E	10 AWG	37	26 AWG
ALPHA WIRE 5859/10 BK002	Hook-Up	Copper Silver Coated	600 V	Black	152.4 m	500 ft	-60 °C	200 °C	0.3 mm	0.012 in	Polytetrafluoroethylene (PTFE)	MIL-W-16878/4 Type E	10 AWG	37	26 AWG
ALPHA WIRE 5859/10 RD002	Hook-Up	Copper Silver Coated	600 V	Red	152.4 m	500 ft	-60 °C	200 °C	0.3 mm	0.012 in	Polytetrafluoroethylene (PTFE)	MIL-W-16878/4 Type E	10 AWG	37	26 AWG
ALPHA WIRE 5859/10 GR002	Hook-Up	Copper Silver Coated	600 V	Green	152.4 m	500 ft	-60 °C	200 °C	0.3 mm	0.012 in	Polytetrafluoroethylene (PTFE)	MIL-W-16878/4 Type E	10 AWG	37	26 AWG

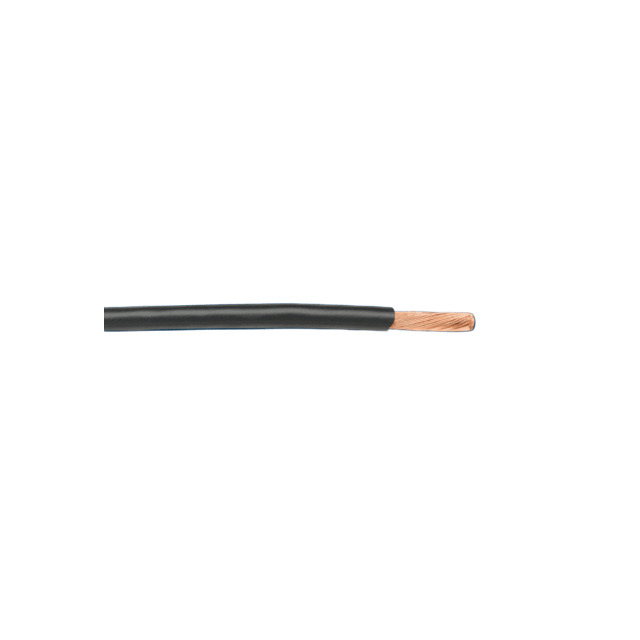

ALPHA WIRE 5859/10 BK005	Hook-Up	Copper Silver Coated	600 V	Black			-60 °C	200 °C	0.3 mm	0.012 in	Polytetrafluoroethylene (PTFE)	MIL-W-16878/4 Type E	10 AWG	37	26 AWG	100 ft	30.5 m
