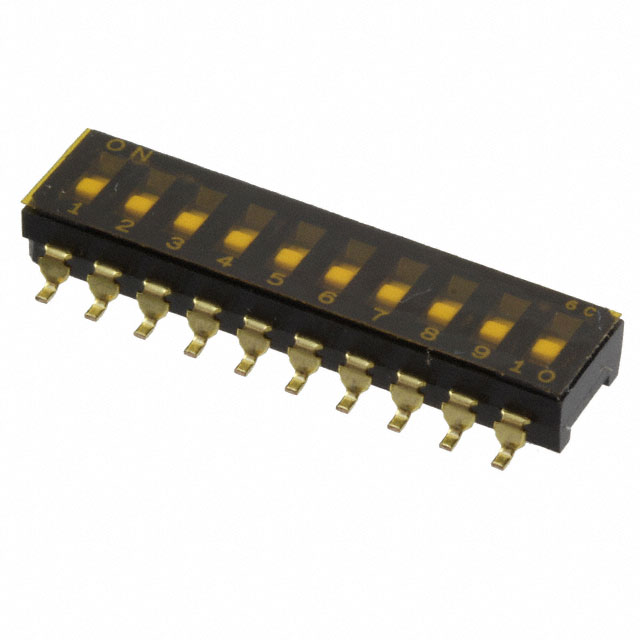

CFS-1000 Series

Catalog

DIP SWITCH, 10PST-NO, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Body Material	Length [x]	Length [x]	Electrical Life	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Circuit	Contact Finish	Mounting Type	Actuator Level	Pitch	Pitch	Features	Number of Positions	Termination Style	Actuator Type	Voltage Rating	Height Above Board [z]	Height Above Board [z]
Nidec Components Corporation CFS-1000TB	Polyphenylene Sulfide (PPS)	26.9 mm	1.059 "	1000 Cycles	Copper Alloy	85 °C	-40 C	100 mA	SPST	Gold	Surface Mount	Flush Recessed	2.54 mm	0.1 "	Tape Seal	10	Gull Wing	Slide (Standard)	6 V	3.7 mm	0.146 in
Nidec Components Corporation CFS-1000TA	Polyphenylene Sulfide (PPS)	26.9 mm	1.059 "	1000 Cycles	Copper Alloy	85 °C	-40 C	100 mA	SPST	Gold	Surface Mount	Flush Recessed	2.54 mm	0.1 "	Tape Seal	10	J Lead	Slide (Standard)	6 V	3.9 mm	0.154 in
Nidec Components Corporation CFS-1000MB	Polyphenylene Sulfide (PPS)	26.9 mm	1.059 "	1000 Cycles	Copper Alloy	85 °C	-40 C	100 mA	SPST	Gold	Surface Mount	Flush Recessed	2.54 mm	0.1 "	Tape Seal	10	Gull Wing	Slide (Standard)	6 V	3.7 mm	0.146 in

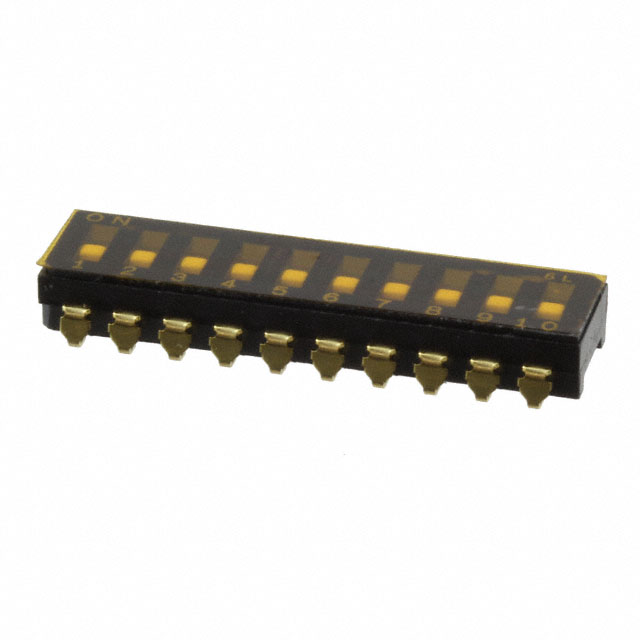

Nidec Components Corporation CFS-1000MA	Polyphenylene Sulfide (PPS)	26.9 mm	1.059 "	1000 Cycles	Copper Alloy	85 °C	-40 C	100 mA	SPST	Gold	Surface Mount	Flush Recessed	2.54 mm	0.1 "	Tape Seal	10	J Lead	Slide (Standard)	6 V	3.9 mm	0.154 in
