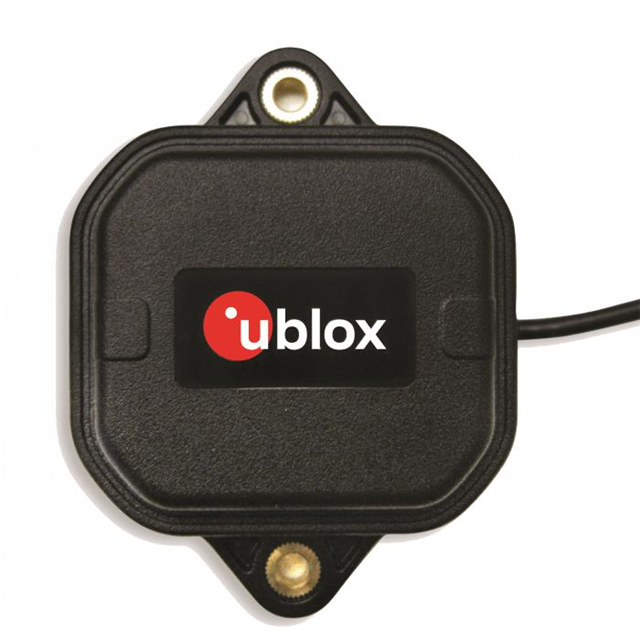

ANN-MB Series
Manufacturer: u-blox
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF ANT GNSS/GPS 1.197-1.249GHZ
| Part | Height (Max) | Applications | Frequency Range (Band 2) Minimum | Frequency Range (Band 1) Minimum | Frequency Range (Band 1) Maximum | Frequency Range (Band 2) Maximum | RF Family/Standard | Frequency (Center) | Frequency (Band) | Frequency Group Minimum (UHF) | Frequency Group | Frequency Group Maximum (UHF) | Antenna Type | Number of Bands | Termination | Mounting Type | Gain | VSWR | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 u-blox | 0.886 in | BEIDOU Galileo GLONASS GNSS GPS | 1.559 GHz | 1.197 GHz | 1.249 GHz | 1.606 GHz | Navigation | 1.223 GHz | 1.582 GHz | 1 GHz | UHF | 2 GHz | Module | 2 | MCX | Magnetic | 28 dB | 2 | 5m Cable LNA |
u-blox | 0.886 in | BEIDOU Galileo GLONASS GNSS GPS | 1.559 GHz | 1.197 GHz | 1.249 GHz | 1.606 GHz | Navigation | 1.223 GHz | 1.582 GHz | 1 GHz | UHF | 2 GHz | Module | 2 | SMA | Magnetic | 28 dB | 2 | 5m Cable LNA |
