MRS2 Series

Manufacturer: Adam Tech

Catalog

RECEPTACLE STRIP, 10P 1.0MM PITC

Part	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Applications	Contact Material	Fastening Type	Mounting Type	Contact Type	Number of Positions	Termination	Contact Finish - Mating	Contact Finish - Post	Material Flammability Rating	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Rows [custom]	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness - Mating

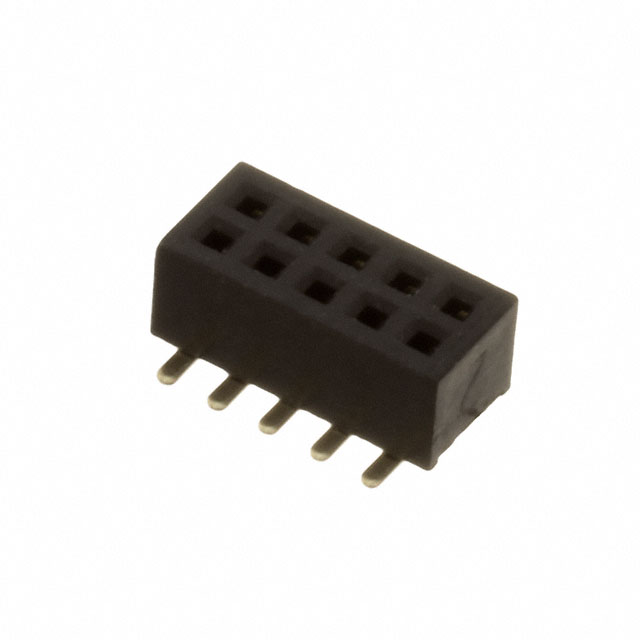

Adam Tech MRS2-10-U-SMT	Flash	Square	Thermoplastic	General Purpose	Phosphor Bronze	Push-Pull	Surface Mount	Female Socket	10	Solder	Gold	Gold	UL94 V-0	250 VAC	0.039 in	1 mm	1 mm	0.039 in	Black	2	All	-40 C	105 ░C	Header	Flash

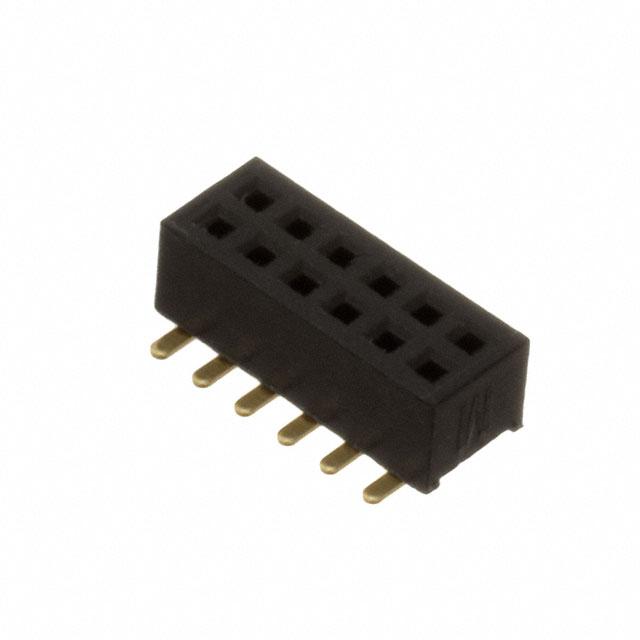

Adam Tech MRS2-12-U-SMT	Flash	Square	Thermoplastic	General Purpose	Phosphor Bronze	Push-Pull	Surface Mount	Female Socket	12	Solder	Gold	Gold	UL94 V-0	250 VAC	0.039 in	1 mm	1 mm	0.039 in	Black	2	All	-40 C	105 ░C	Header	Flash

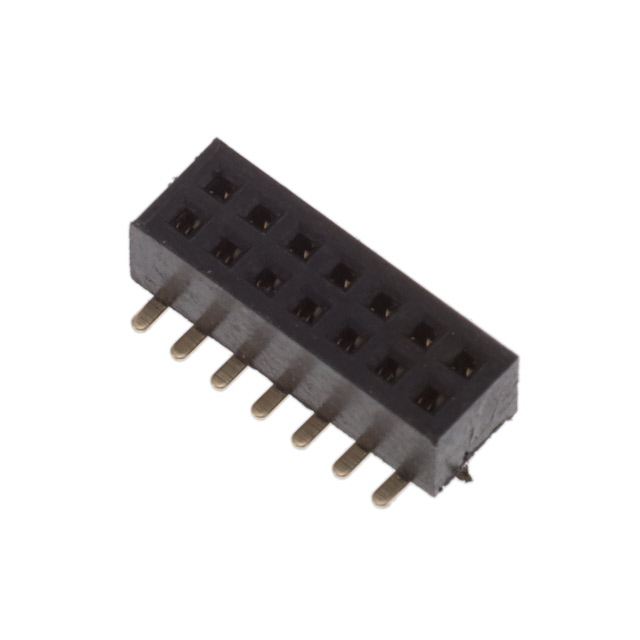

Adam Tech MRS2-14-U-SMT	Flash	Square	Thermoplastic	General Purpose	Phosphor Bronze	Push-Pull	Surface Mount	Female Socket	14	Solder	Gold	Gold	UL94 V-0	250 VAC	0.039 in	1 mm	1 mm	0.039 in	Black	2	All	-40 C	105 ░C	Header	Flash

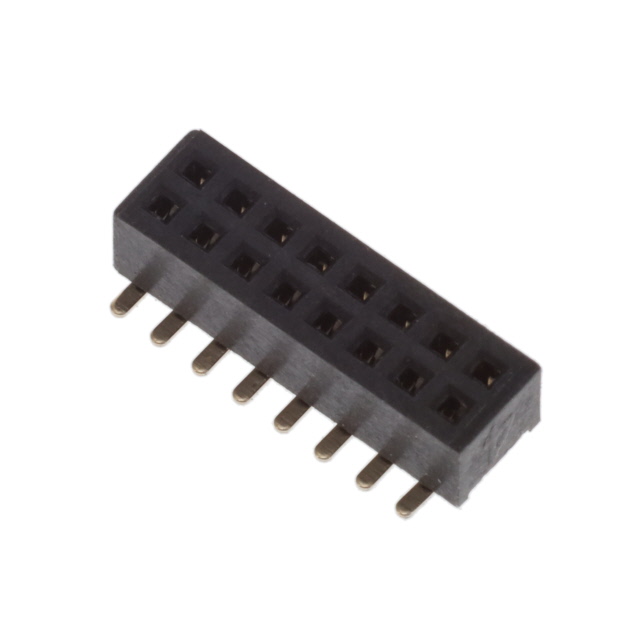

Adam Tech MRS2-16-U-SMT	Flash	Square	Thermoplastic	General Purpose	Phosphor Bronze	Push-Pull	Surface Mount	Female Socket	16	Solder	Gold	Gold	UL94 V-0	250 VAC	0.039 in	1 mm	1 mm	0.039 in	Black	2	All	-40 C	105 ░C	Header	Flash

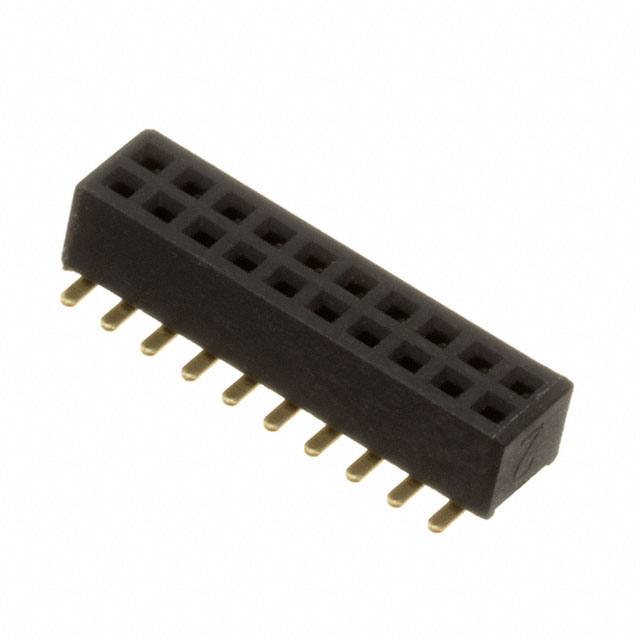

Adam Tech MRS2-20-U-SMT	Flash	Square	Thermoplastic	General Purpose	Phosphor Bronze	Push-Pull	Surface Mount	Female Socket	20	Solder	Gold	Gold	UL94 V-0	250 VAC	0.039 in	1 mm	1 mm	0.039 in	Black	2	All	-40 C	105 ░C	Header	Flash
