PYBJ6 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 5V 6W

Part	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Isolation	Applications	Voltage - Input (Min) [Min]	Approval Agency	Power (Watts)	Efficiency	Mounting Type	Type	Standard Number	Package / Case	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Features
CUI Inc. PYBJ6-D24-S5-OM	36 V	1	1.5 kV	ITE (Commercial)	18 V	CB Scheme IEC UL	6 W	83 %	Surface Mount	Isolated Module	62368-1	6-SMD Module	1.2 A	0.25 "	31.6 mm	6.3 mm	18.1 mm	0.71 in	1.24 in	85 °C	-40 C	5 V	OCP OVP Remote On/Off SCP

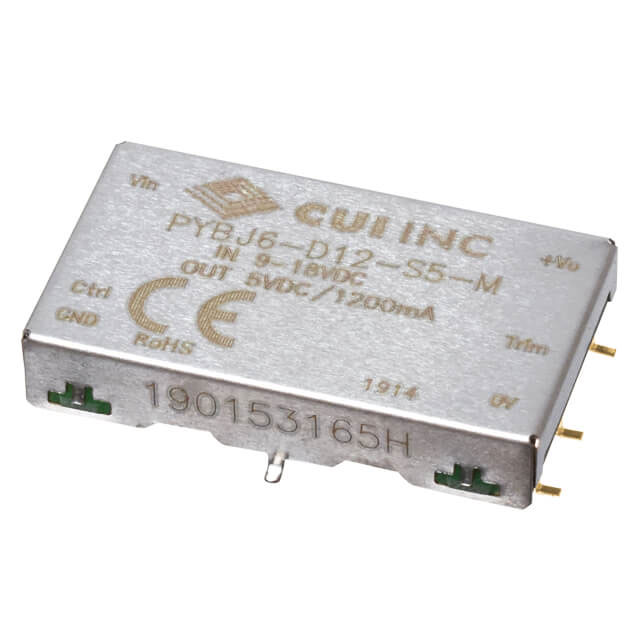

CUI Inc. PYBJ6-D12-S5-M	18 V	1	1.5 kV	ITE (Commercial)	9 V	CB Scheme IEC UL	6 W	81 %	Surface Mount	Isolated Module	62368-1	6-SMD Module	1.2 A	0.28 "	32.6 mm	7 mm	19.1 mm	0.75 in	1.28 in	85 °C	-40 C	5 V	OCP OVP Remote On/Off SCP
CUI Inc. PYBJ6-D24-S5-D	36 V	1	1.5 kV	ITE (Commercial)	18 V	CB Scheme IEC UL	6 W	83 %	Through Hole	Isolated Module	62368-1	6-DIP Module	1.2 A							85 °C	-40 C	5 V	OCP OVP Remote On/Off SCP
CUI Inc. PYBJ6-D24-S12-M	36 V	1	1.5 kV	ITE (Commercial)	18 V	CB Scheme IEC UL	6 W	85 %	Surface Mount	Isolated Module	62368-1	6-SMD Module	500 mA	0.28 "	32.6 mm	7 mm	19.1 mm	0.75 in	1.28 in	85 °C	-40 C	12 V	OCP OVP Remote On/Off SCP
CUI Inc. PYBJ6-D24-S5-OD	36 V	1	1.5 kV	ITE (Commercial)	18 V	CB Scheme IEC UL	6 W	83 %	Through Hole	Isolated Module	62368-1	6-DIP Module	1.2 A	0.24 in	31.6 mm	6.1 mm	18.1 mm	0.71 in	1.24 in	85 °C	-40 C	5 V	OCP OVP Remote On/Off SCP
CUI Inc. PYBJ6-D24-S15-OD	36 V	1	1.5 kV	ITE (Commercial)	18 V	CB Scheme IEC UL	6 W	86 %	Through Hole	Isolated Module	62368-1	6-DIP Module	400 mA	0.24 in	31.6 mm	6.1 mm	18.1 mm	0.71 in	1.24 in	85 °C	-40 C	15 V	OCP OVP Remote On/Off SCP
CUI Inc. PYBJ6-D12-S5-OM	18 V	1	1.5 kV	ITE (Commercial)	9 V	CB Scheme IEC UL	6 W	81 %	Surface Mount	Isolated Module	62368-1	6-SMD Module	1.2 A	0.25 "	31.6 mm	6.3 mm	18.1 mm	0.71 in	1.24 in	85 °C	-40 C	5 V	OCP OVP Remote On/Off SCP
CUI Inc. PYBJ6-D24-S3-OM	36 V	1	1.5 kV	ITE (Commercial)	18 V	CB Scheme IEC UL	5 W	79 %	Surface Mount	Isolated Module	62368-1	6-SMD Module	1.5 A	0.25 "	31.6 mm	6.3 mm	18.1 mm	0.71 in	1.24 in	85 °C	-40 C	3.3 V	OCP OVP Remote On/Off SCP
CUI Inc. PYBJ6-D12-S12-M	18 V	1	1.5 kV	ITE (Commercial)	9 V	CB Scheme IEC UL	6 W	84 %	Surface Mount	Isolated Module	62368-1	6-SMD Module	500 mA	0.28 "	32.6 mm	7 mm	19.1 mm	0.75 in	1.28 in	85 °C	-40 C	12 V	OCP OVP Remote On/Off SCP
CUI Inc. PYBJ6-D12-S15-OD	18 V	1	1.5 kV	ITE (Commercial)	9 V	CB Scheme IEC UL	6 W	85 %	Through Hole	Isolated Module	62368-1	6-DIP Module	400 mA	0.24 in	31.6 mm	6.1 mm	18.1 mm	0.71 in	1.24 in	85 °C	-40 C	15 V	OCP OVP Remote On/Off SCP
