20ETF12 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

DIODE GEN PURP 1.2KV 20A TO263AB

Part	Current - Reverse Leakage @ Vr	Speed	Supplier Device Package	Reverse Recovery Time (trr)	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Technology	Qualification	Grade
Vishay General Semiconductor - Diodes Division VS-20ETF12STRLPBF	100 µA	200 mA 500 ns	TO-263AB (D2PAK)	95 ns	-40 °C	150 °C	1.31 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1.2 kV	Surface Mount	Standard

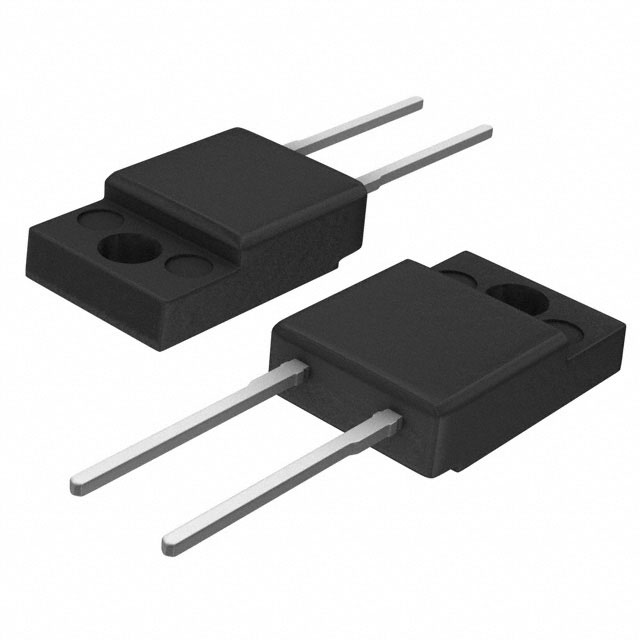

Vishay General Semiconductor - Diodes Division VS-20ETF12FP-M3	100 µA	200 mA 500 ns	TO-220-2 Full Pack	400 ns	-40 °C	150 °C	1.31 V	TO-220-2 Full Pack	1.2 kV	Through Hole	Standard
Vishay General Semiconductor - Diodes Division VS-20ETF12SPBF	100 µA	200 mA 500 ns	TO-263AB (D2PAK)	400 ns	-40 °C	150 °C	1.31 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1.2 kV	Surface Mount	Standard
Vishay General Semiconductor - Diodes Division 20ETF12	100 µA	200 mA 500 ns	TO-220AC	400 ns	-40 °C	150 °C	1.31 V	TO-220-2	1.2 kV	Through Hole	Standard
Vishay General Semiconductor - Diodes Division VS-20ETF12THM3	100 µA	200 mA 500 ns	TO-220AC	400 ns	-40 °C	150 °C	1.31 V	TO-220-2	1.2 kV	Through Hole	Standard	AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division VS-20ETF12STRRPBF	100 µA	200 mA 500 ns	TO-263AB (D2PAK)	95 ns	-40 °C	150 °C	1.31 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1.2 kV	Surface Mount	Standard
Vishay General Semiconductor - Diodes Division VS-20ETF12SLHM3	100 µA	200 mA 500 ns	TO-263AB (D2PAK)	400 ns	-40 °C	150 °C	1.31 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1.2 kV	Surface Mount	Standard	AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division VS-20ETF12-M3	100 µA	200 mA 500 ns	TO-220AC	400 ns	-40 °C	150 °C	1.31 V	TO-220-2	1.2 kV	Through Hole	Standard
Vishay General Semiconductor - Diodes Division VS-20ETF12STRR-M3	100 µA	200 mA 500 ns	TO-263AB (D2PAK)	400 ns	-40 °C	150 °C	1.31 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	1.2 kV	Surface Mount	Standard
Vishay General Semiconductor - Diodes Division VS-20ETF12PBF	100 µA	200 mA 500 ns	TO-220AC	400 ns	-40 °C	150 °C	1.3 V	TO-220-2	1.2 kV	Through Hole	Standard
