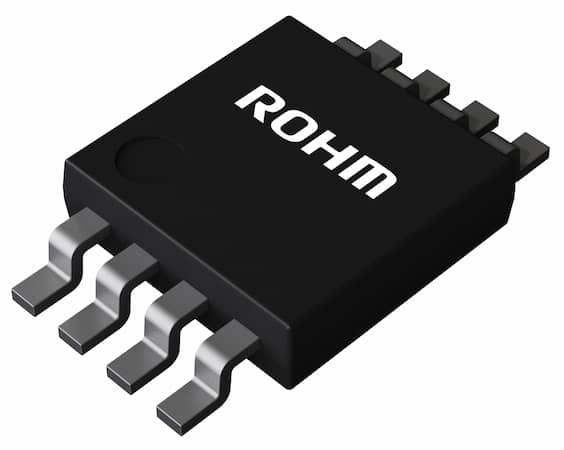

BD14215FVJ-LA Series

Current Sense Amplifier

Catalog

Current Sense Amplifier

Part	Supplier Device Package	Number of Circuits	Mounting Type	Current - Supply	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	Operating Temperature [Max]	Operating Temperature [Min]	Amplifier Type	Voltage - Supply Span (Min) [Min]	Output Type	Current - Input Bias	Package / Case	Package / Case [custom]	Package / Case

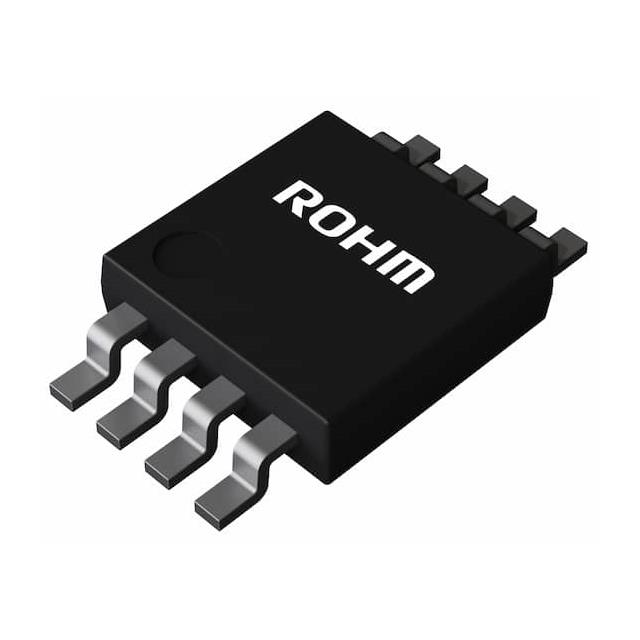

Rohm Semiconductor BD14215FVJ-LAE2	8-TSSOP-BJ	2	Surface Mount	310 µA	5.5 V	600 µV	125 °C	-40 °C	Current Sense	2.7 V	Push-Pull	1 µA	8-MSOP 8-TSSOP	0.118 in	3 mm

Catalog

Current Sense Amplifier

Key Features

• Long Time Support Product for Industrial Applications, Wide Common Mode Voltage Range, High Accuracy, Low Offset Voltage, Low Input Bias Current

Description

The BD14215FVJ-LA current sense amplifier. This is the product guarantees long time support in Industrial market. This device operates from a single 2.7V to 5.5V power supply. It has wide common mode voltage range from -0.2V to +26V, outputs analog voltage. The gain is 20V/V. The matched gain resistor minimizes gain error and realizes low offset voltage. The input bias current is 1µA (Typ) at typical condition. There is no need to adjust the gain error.
