TPS61282 Series

Catalog

EVAL MODULE FOR TPS61282

Part	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Contents	Frequency - Switching	Voltage - Output	Main Purpose	Current - Output	Regulator Topology	Utilized IC / Part	Number of Outputs	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Function	Topology	Voltage - Output (Max) [Max]	Supplier Device Package	Output Type	Output Configuration	Voltage - Input (Max) [Max]

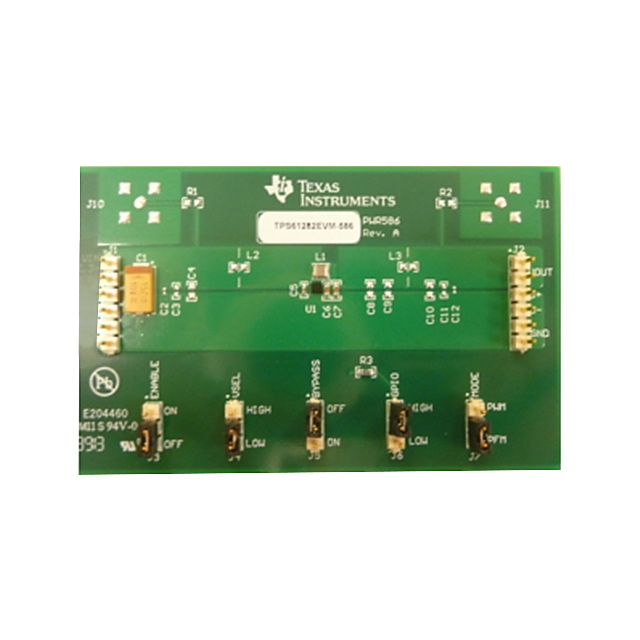

Texas Instruments TPS61282EVM-586	Board(s)	1	1 Non-Isolated Output Non-Isolated	Fully Populated	4.8 V	2.3 V	Board(s)	2.3 MHz	3.3 V 3.5 V	DC/DC Step Down	4 A	Buck	TPS61282
Texas Instruments TPS61282AYFFT								2.3 MHz			4 A			1	2.3 V	16-UFBGA DSBGA	Surface Mount	85 C	-40 ¯C	2.85 V	Step-Up	Boost	4.4 V	16-DSBGA (1.67x1.67)	Programmable	Positive	4.85 V
Texas Instruments TPS61282DYFFT								2.3 MHz			4 A			1	2.3 V	16-UFBGA DSBGA	Surface Mount	85 C	-40 ¯C	3.15 V	Step-Up	Boost	4.4 V	16-DSBGA (1.67x1.67)	Programmable	Positive	4.85 V
Texas Instruments TPS61282AYFFR								2.3 MHz			4 A			1	2.3 V	16-UFBGA DSBGA	Surface Mount	85 C	-40 ¯C	2.85 V	Step-Up	Boost	4.4 V	16-DSBGA (1.67x1.67)	Programmable	Positive	4.85 V
Texas Instruments TPS61282YFFR								2.3 MHz			4 A			1	2.3 V	16-UFBGA DSBGA	Surface Mount	85 C	-40 ¯C	2.85 V	Step-Up	Boost	4.4 V	16-DSBGA (1.67x1.67)	Programmable	Positive	4.85 V
Texas Instruments TPS61282YFFT								2.3 MHz			4 A			1	2.3 V	16-UFBGA DSBGA	Surface Mount	85 C	-40 ¯C	2.85 V	Step-Up	Boost	4.4 V	16-DSBGA (1.67x1.67)	Programmable	Positive	4.85 V
Texas Instruments TPS61282DYFFR								2.3 MHz			4 A			1	2.3 V	16-UFBGA DSBGA	Surface Mount	85 C	-40 ¯C	3.15 V	Step-Up	Boost	4.4 V	16-DSBGA (1.67x1.67)	Programmable	Positive	4.85 V
