TX24-50R Series

Catalog

CONN RCPT 50POS VERT GOLD

Part	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Connector Type	Number of Rows [custom]	Mounting Type	Number of Positions	Contact Finish	Features

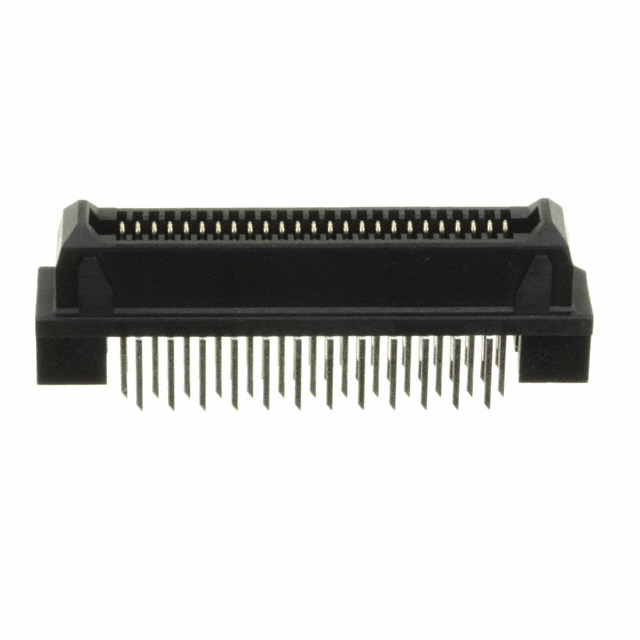

JAE Electronics TX24-50R-10ST-N1E	14.3 mm	0.563 in	16 mm 18 mm 22 mm	0.1 Ám	4 Áin	0.05 in	1.27 mm	Receptacle Outer Shroud Contacts	2	Through Hole	50	Gold

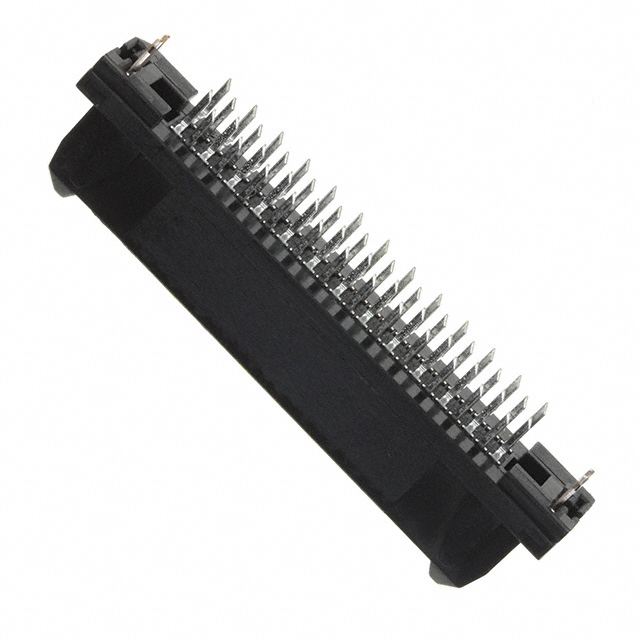

JAE Electronics TX24-50R-6ST-H1E	10.3 mm	0.406 in	12 mm 14 mm 18 mm	0.1 Ám	4 Áin	0.05 in	1.27 mm	Receptacle Outer Shroud Contacts	2	Through Hole	50	Gold	Board Lock

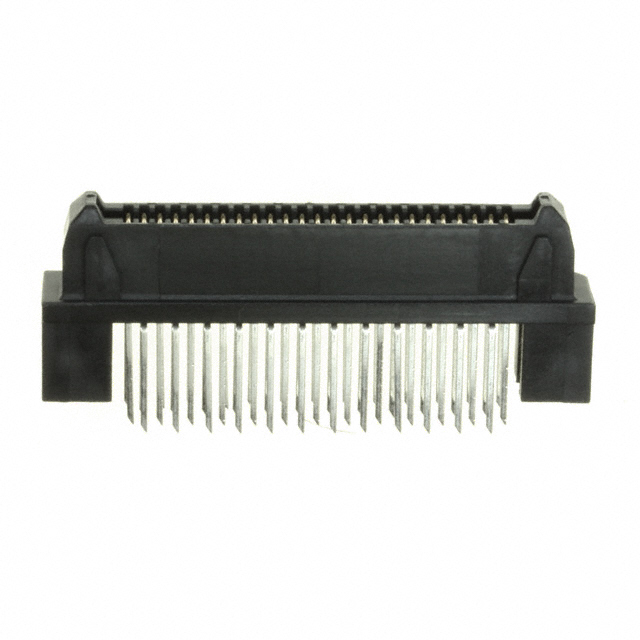

JAE Electronics TX24-50R-12ST-N1E	16.3 mm	0.642 in	18 mm 20 mm 24 mm	0.1 Ám	4 Áin	0.05 in	1.27 mm	Receptacle Outer Shroud Contacts	2	Through Hole	50	Gold

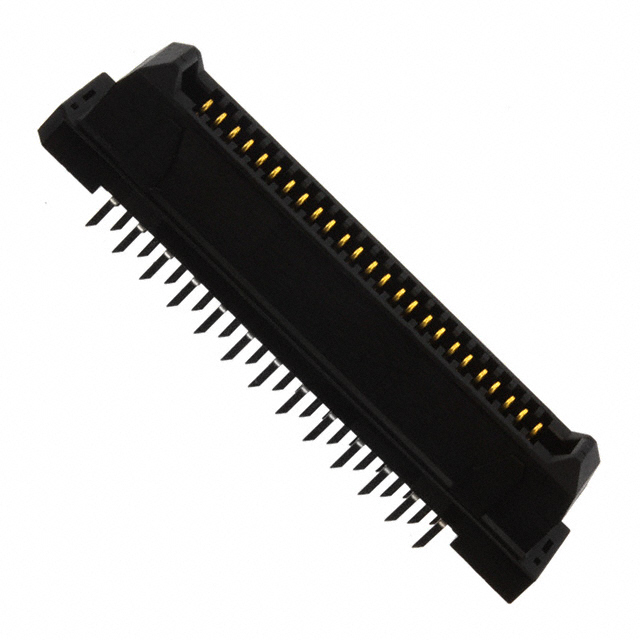

JAE Electronics TX24-50R-6ST-N1E	10.3 mm	0.406 in	12 mm 14 mm 18 mm	0.1 Ám	4 Áin	0.05 in	1.27 mm	Receptacle Outer Shroud Contacts	2	Through Hole	50	Gold

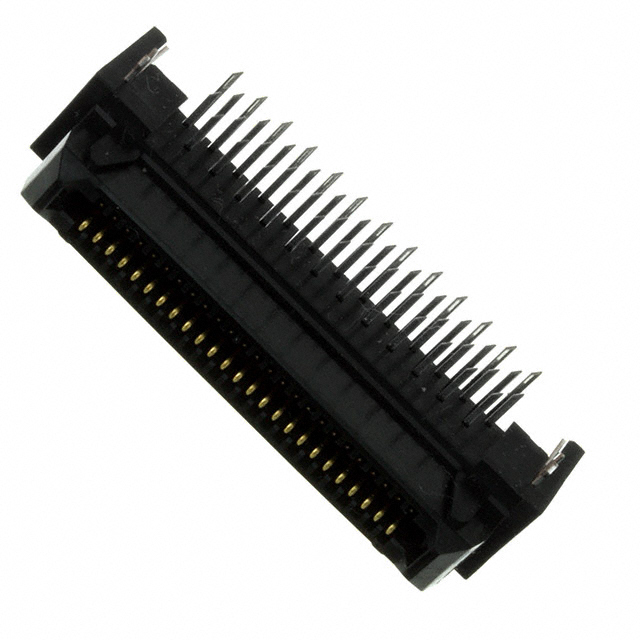

JAE Electronics TX24-50R-LT-H1E	9 mm	0.354 in		0.1 Ám	4 Áin	0.05 in	1.27 mm	Receptacle Outer Shroud Contacts	2	Right Angle Through Hole	50	Gold	Board Lock
