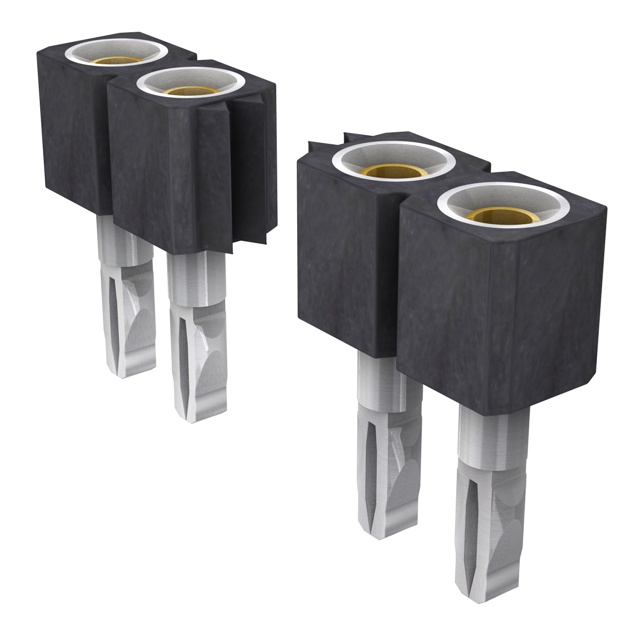

346-83 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 47POS 0.1 GOLD PCB

Part	Contact Material	Contact Shape	Insulation Material	Number of Positions Loaded	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Termination	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Finish - Post	Insulation Color	Contact Type	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Number of Positions	Number of Rows	Number of Positions	Insulation Height	Contact Length - Post [custom]	Contact Length - Post	Number of Positions [custom]
Preci-Dip 346-83-147-41-035101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Gold	0.1 "	2.54 mm	Push-Pull	-55 C	125 °C	4.4 mm	0.173 in	Press-Fit Solder	Socket	3.81 mm	0.15 in	3 A	Tin	Black	Female Socket	Through Hole	UL94 V-0	29.5 µin	0.75 µm	47	1
Preci-Dip 346-83-144-41-035101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Gold	0.1 "	2.54 mm	Push-Pull	-55 C	125 °C	4.4 mm	0.173 in	Press-Fit Solder	Socket	3.81 mm	0.15 in	3 A	Tin	Black	Female Socket	Through Hole	UL94 V-0	29.5 µin	0.75 µm		1	44
Preci-Dip 346-83-132-41-036101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Gold	0.1 "	2.54 mm	Push-Pull	-55 C	125 °C		2.95 mm	Press-Fit Solder	Socket			3 A	Tin	Black	Female Socket	Through Hole	UL94 V-0	29.5 µin	0.75 µm		1		0.116 "	0.11 in	2.79 mm
Preci-Dip 346-83-144-41-036101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Gold	0.1 "	2.54 mm	Push-Pull	-55 C	125 °C		2.95 mm	Press-Fit Solder	Socket			3 A	Tin	Black	Female Socket	Through Hole	UL94 V-0	29.5 µin	0.75 µm		1	44	0.116 "	0.11 in	2.79 mm
Preci-Dip 346-83-129-41-036101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Gold	0.1 "	2.54 mm	Push-Pull	-55 C	125 °C		2.95 mm	Press-Fit Solder	Socket			3 A	Tin	Black	Female Socket	Through Hole	UL94 V-0	29.5 µin	0.75 µm		1	29	0.116 "	0.11 in	2.79 mm
Preci-Dip 346-83-145-41-035101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Gold	0.1 "	2.54 mm	Push-Pull	-55 C	125 °C	4.4 mm	0.173 in	Press-Fit Solder	Socket	3.81 mm	0.15 in	3 A	Tin	Black	Female Socket	Through Hole	UL94 V-0	29.5 µin	0.75 µm		1	45
Preci-Dip 346-83-122-41-036101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Gold	0.1 "	2.54 mm	Push-Pull	-55 C	125 °C		2.95 mm	Press-Fit Solder	Socket			3 A	Tin	Black	Female Socket	Through Hole	UL94 V-0	29.5 µin	0.75 µm		1	22	0.116 "	0.11 in	2.79 mm
Preci-Dip 346-83-111-41-035101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Gold	0.1 "	2.54 mm	Push-Pull	-55 C	125 °C	4.4 mm	0.173 in	Press-Fit Solder	Socket	3.81 mm	0.15 in	3 A	Tin	Black	Female Socket	Through Hole	UL94 V-0	29.5 µin	0.75 µm		1	11
Preci-Dip 346-83-134-41-035101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Gold	0.1 "	2.54 mm	Push-Pull	-55 C	125 °C	4.4 mm	0.173 in	Press-Fit Solder	Socket	3.81 mm	0.15 in	3 A	Tin	Black	Female Socket	Through Hole	UL94 V-0	29.5 µin	0.75 µm		1					34
Preci-Dip 346-83-131-41-036101	Beryllium Copper	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	All	Gold	0.1 "	2.54 mm	Push-Pull	-55 C	125 °C		2.95 mm	Press-Fit Solder	Socket			3 A	Tin	Black	Female Socket	Through Hole	UL94 V-0	29.5 µin	0.75 µm		1		0.116 "	0.11 in	2.79 mm	31
