745-049 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 49POS 0.100

Part	Termination Rows	Material - Insulation	Read Out	Gender	Card Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Contact Type	Termination	Contact Material	Mounting Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch	Pitch	Number of Positions/Bay/Row	Color	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 745-049-540-101	1	Polyester Thermoplastic	Single	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Through Hole	Gold	-40 C	105 ░C	1	0.1 "	2.54 mm	49	Black	30 Áin	0.76 Ám
EDAC Inc. 745-049-545-101	1	Polyester Thermoplastic	Single	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Cantilever	Press-Fit	Copper Alloy	Through Hole	Gold	-40 C	105 ░C	1	0.1 "	2.54 mm	49	Black	30 Áin	0.76 Ám

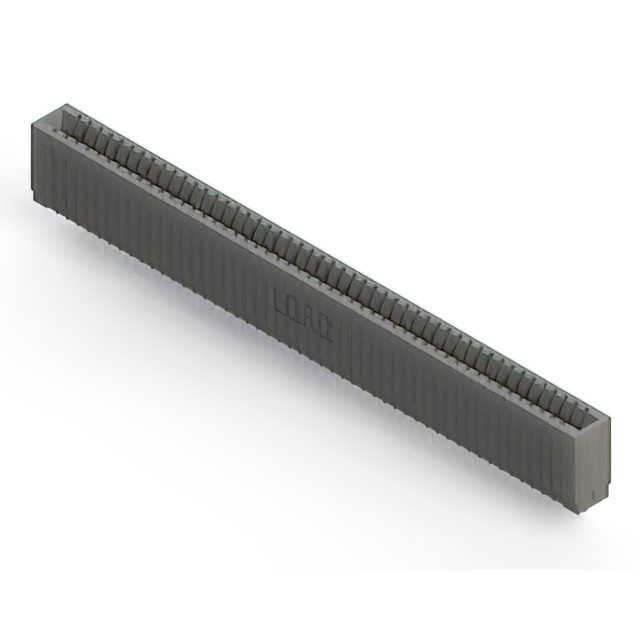

EDAC Inc. 745-049-525-101	1	Polyester Thermoplastic	Single	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Cantilever	Press-Fit	Copper Alloy	Through Hole	Gold	-40 C	105 ░C	1	0.1 "	2.54 mm	49	Black	30 Áin	0.76 Ám
EDAC Inc. 745-049-541-106	1	Polyester Thermoplastic	Single	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Through Hole	Gold	-40 C	105 ░C	1	0.1 "	2.54 mm	49	Black	30 Áin	0.76 Ám
EDAC Inc. 745-049-522-106	1	Polyester Thermoplastic	Single	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Cantilever	Press-Fit	Copper Alloy	Through Hole	Gold	-40 C	105 ░C	1	0.1 "	2.54 mm	49	Black	30 Áin	0.76 Ám
EDAC Inc. 745-049-520-101	1	Polyester Thermoplastic	Single	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Cantilever	Press-Fit	Copper Alloy	Through Hole	Gold	-40 C	105 ░C	1	0.1 "	2.54 mm	49	Black	30 Áin	0.76 Ám
EDAC Inc. 745-049-545-106	1	Polyester Thermoplastic	Single	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Cantilever	Press-Fit	Copper Alloy	Through Hole	Gold	-40 C	105 ░C	1	0.1 "	2.54 mm	49	Black	30 Áin	0.76 Ám
EDAC Inc. 745-049-540-106	1	Polyester Thermoplastic	Single	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Cantilever	Press-Fit Wire Wrap	Copper Alloy	Through Hole	Gold	-40 C	105 ░C	1	0.1 "	2.54 mm	49	Black	30 Áin	0.76 Ám
EDAC Inc. 745-049-522-101	1	Polyester Thermoplastic	Single	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Cantilever	Press-Fit	Copper Alloy	Through Hole	Gold	-40 C	105 ░C	1	0.1 "	2.54 mm	49	Black	30 Áin	0.76 Ám

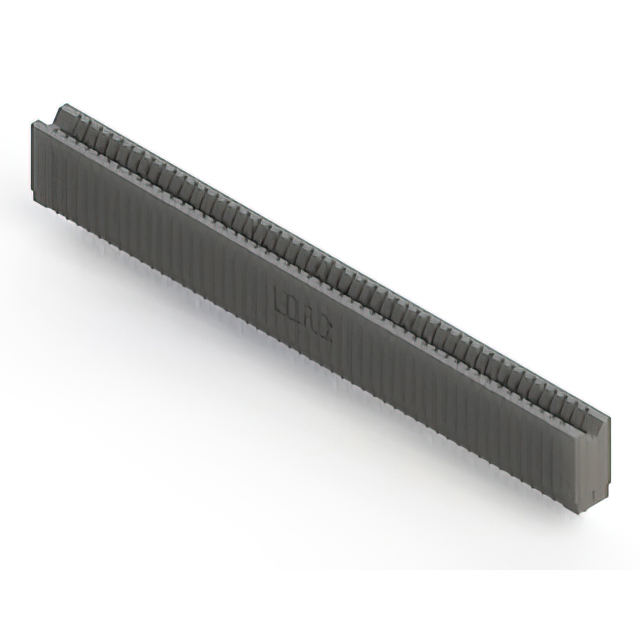

EDAC Inc. 745-049-520-106	1	Polyester Thermoplastic	Single	Female	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	49	Cantilever	Press-Fit	Copper Alloy	Through Hole	Gold	-40 C	105 ░C	1	0.1 "	2.54 mm	49	Black	30 Áin	0.76 Ám
