284514 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

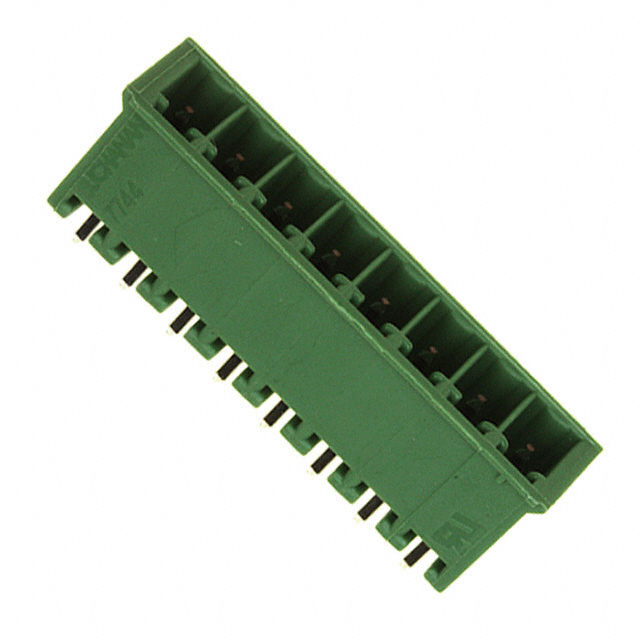

8 POS TERMI-BLOK HDR DIR. POL.
| Part | Pitch [x] | Pitch [x] | Number of Levels | Current - UL | Voltage - UL | Number of Positions | Contact Material | Material Flammability Rating | Positions Per Level | Contact Mating Finish | Header Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination Style | Type | Insulation Height | Insulation Height | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 3.5 mm | 0.138 in | 1 | 11 A | 300 V | 8 | Phosphor Bronze | UL94 V-0 | 8 | Tin | Vertical | -40 °C | 110 °C | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 0.362 in | 9.2 mm | Green |
 TE Connectivity Raychem Cable Protection | 3.5 mm | 0.138 in | 1 | 11 A | 300 V | 4 | Phosphor Bronze | UL94 V-0 | 4 | Tin | Vertical | -40 °C | 110 °C | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 0.362 in | 9.2 mm | Green |

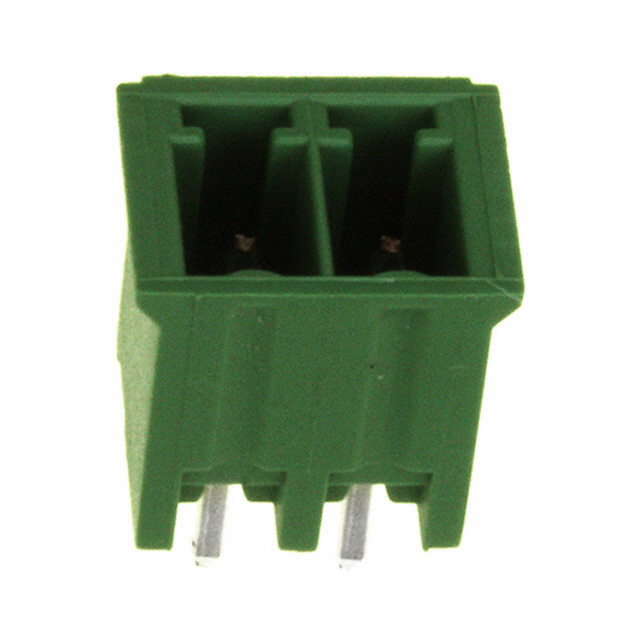

 TE Connectivity Raychem Cable Protection | 3.5 mm | 0.138 in | 1 | 11 A | 300 V | 2 | Phosphor Bronze | UL94 V-0 | 2 | Tin | Vertical | -40 °C | 110 °C | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 0.362 in | 9.2 mm | Green |

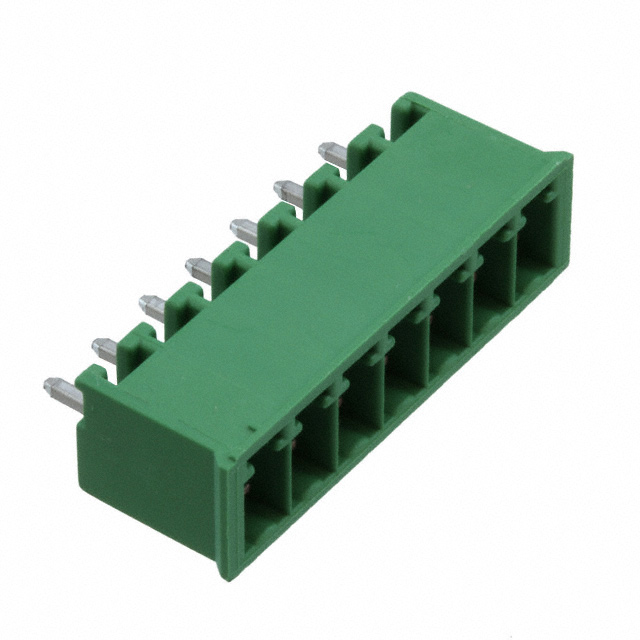

 TE Connectivity Raychem Cable Protection | 3.5 mm | 0.138 in | 1 | 11 A | 300 V | 7 | Phosphor Bronze | UL94 V-0 | 7 | Tin | Vertical | -40 °C | 110 °C | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 0.362 in | 9.2 mm | Green |
TE Connectivity Raychem Cable Protection | 3.5 mm | 0.138 in | 1 | 11 A | 300 V | 19 | Phosphor Bronze | UL94 V-0 | 19 | Tin | Vertical | -40 °C | 110 °C | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 0.362 in | 9.2 mm | Green |

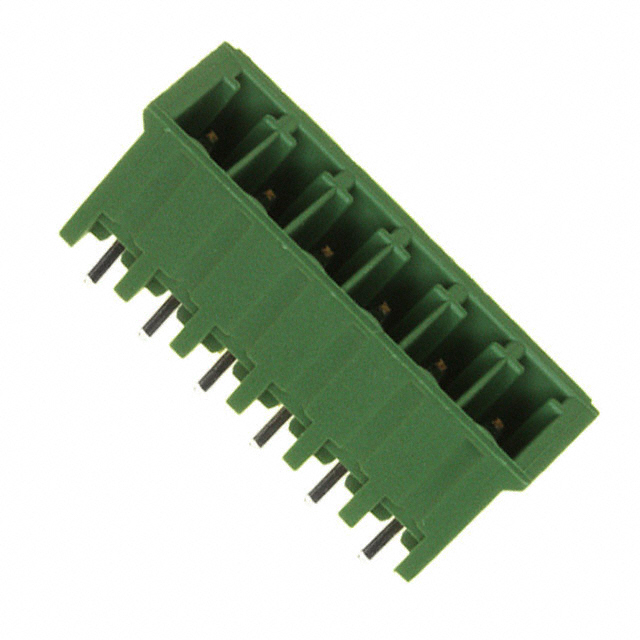

 TE Connectivity Raychem Cable Protection | 3.5 mm | 0.138 in | 1 | 11 A | 300 V | 6 | Phosphor Bronze | UL94 V-0 | 6 | Tin | Vertical | -40 °C | 110 °C | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 0.362 in | 9.2 mm | Green |
TE Connectivity Raychem Cable Protection | 3.5 mm | 0.138 in | 1 | 11 A | 300 V | 13 | Phosphor Bronze | UL94 V-0 | 13 | Tin | Vertical | -40 °C | 110 °C | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 0.362 in | 9.2 mm | Green |
 TE Connectivity Raychem Cable Protection | 3.5 mm | 0.138 in | 1 | 11 A | 300 V | 11 | Phosphor Bronze | UL94 V-0 | 11 | Tin | Vertical | -40 °C | 110 °C | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 0.362 in | 9.2 mm | Green |
TE Connectivity Raychem Cable Protection | 3.5 mm | 0.138 in | 1 | 11 A | 300 V | 20 | Phosphor Bronze | UL94 V-0 | 20 | Tin | Vertical | -40 °C | 110 °C | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 0.362 in | 9.2 mm | Green |

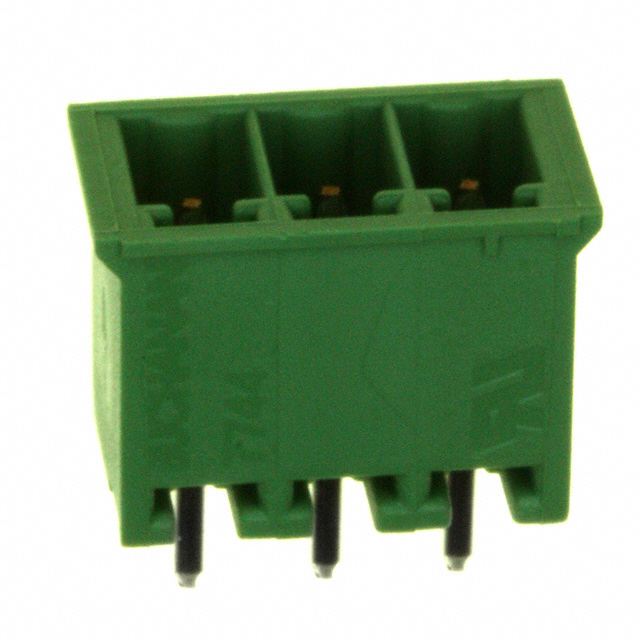

 TE Connectivity Raychem Cable Protection | 3.5 mm | 0.138 in | 1 | 11 A | 300 V | Phosphor Bronze | UL94 V-0 | 3 | Tin | Vertical | -40 °C | 110 °C | Through Hole | Solder | Header Male Pins Shrouded (4 Side) | 0.362 in | 9.2 mm | Green |
