320861 Series

Catalog

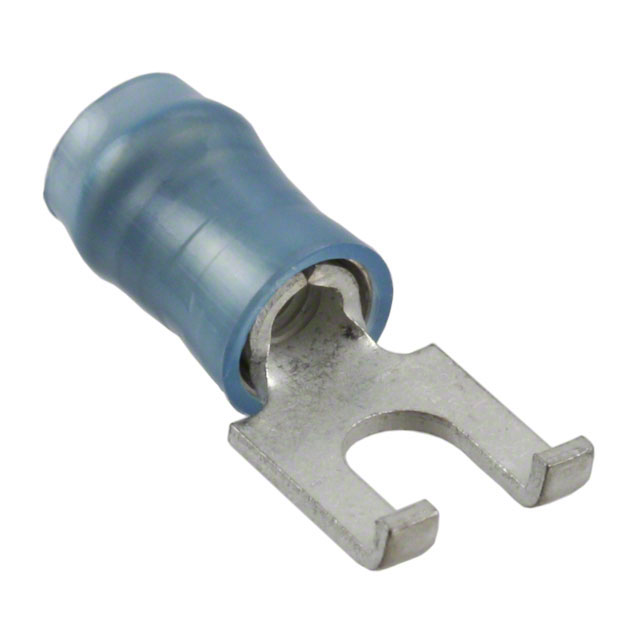

TERMINAL,PIDG SPD FLG 16-14 6

Part	Contact Finish	Insulation	Length - Termination	Length - Termination	Stud/Tab Size	Termination	Material - Insulation	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Overall [x]	Length - Overall [x]	Contact Material	Terminal Type	Mounting Type	Width - Outer Edges	Width - Outer Edges [custom]	Features	Color
TE Connectivity Raychem Cable Protection 8-320861-1	Tin	Insulated	0.404 "	10.26 mm	6 Stud	Crimp	Nylon Polyamide (PA)	0.203 in	5.16 mm	0.115 in 2.92 mm	0.17 " 4.32 mm	3.68 mm	0.145 in	19.51 mm	0.768 "	Copper	Flanged	Free Hanging (In-Line)	7.47 mm	0.294 in	Serrated Termination	Blue
