HDF-S15 Series
Manufacturer: NorComp Inc.
Beta
⌘K
D SUB CONNECTOR, IP67, HIGH DENSITY, RECEPTACLE, NANOOK SERIES, 15 CONTACTS, DE, SOLDER CUP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Color | Dielectric Material | Connector Style | Contact Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Contact Finish | Shell Material, Finish | Current Rating (Amps) | Connector Type | Material Flammability Rating | Ingress Protection | Number of Rows [custom] | Features | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

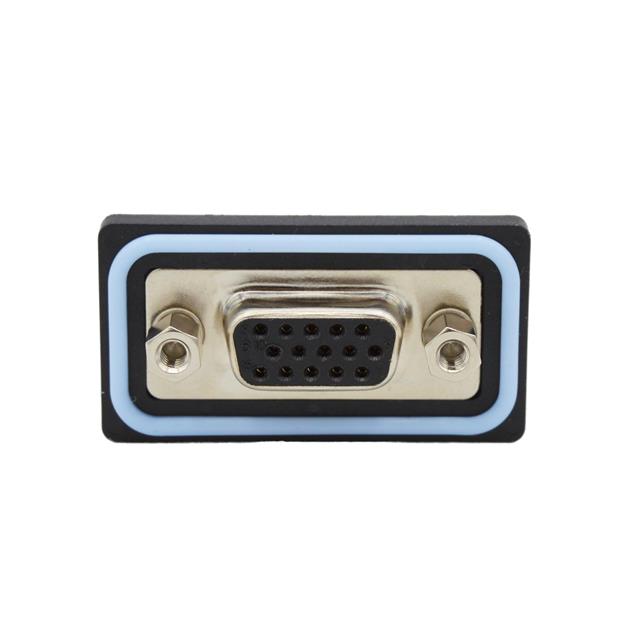

 NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | D-Sub High Density | Signal | Panel Mount | 30 Áin | 0.76 Ám | 4-40 Mating Side Female Screwlock | (DE E) High Density | 1 | 15 | Gold | Nickel Plated Steel | 3 A | Receptacle Female Sockets | UL94 V-0 | IP67 - Dust Tight Waterproof | 3 | ||

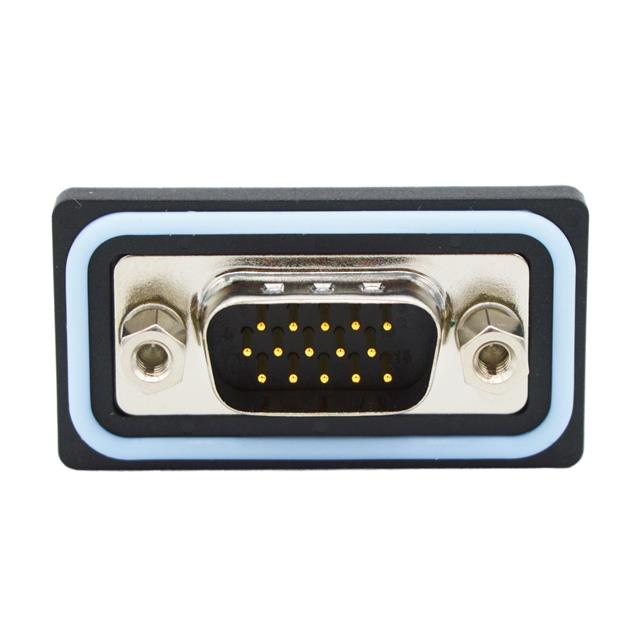

 NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | D-Sub High Density | Signal | Panel Mount | 30 Áin | 0.76 Ám | 4-40 Mating Side Female Screwlock | (DE E) High Density | 1 | 15 | Gold | Nickel Plated Steel | 3 A | Plug Male Pins | UL94 V-0 | IP67 - Dust Tight Waterproof | 3 | Grounding Indents | |
 NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | D-Sub High Density | Signal | Panel Mount | 4-40 Mating Side Female Screwlock | (DE E) High Density | 1 | 15 | Gold | Nickel Plated Steel | 3 A | Receptacle Female Sockets | UL94 V-0 | IP67 - Dust Tight Waterproof | 3 | Flash | |||
 NorComp Inc. | 85 °C | -25 °C | Brass | Black | Polybutylene Terephthalate (PBT) | D-Sub High Density | Signal | Panel Mount | 4-40 Mating Side Female Screwlock | (DE E) High Density | 1 | 15 | Gold | Nickel Plated Steel | 3 A | Plug Male Pins | UL94 V-0 | IP67 - Dust Tight Waterproof | 3 | Grounding Indents | Flash |
