043879 Series

Manufacturer: Molex

Catalog

CONN WIRE TO BOARD HDR 14 POS 4.2MM PRESS FIT ST TOP ENTRY THRU-HOLE MINI-FIT BMI TRAY

Part	Fastening Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Mounting Type	Style	Insulation Color	Number of Positions Loaded	Contact Type	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Shape	Connector Type	Insulation Material	Contact Material	Contact Finish - Post	Applications	Features	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0438790027	Push-Pull	Shrouded - 4 Wall	2.54 çm	100 çin	6.25 mm	0.246 in	UL94 V-0	4.2 mm	0.165 in	Press-Fit Solder	2.54 µm	100 µin	2	Through Hole	Board to Board Cable	Black	All	Male Pin	14	4.2 mm	0.165 in	Square	Header	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	Tin	General Purpose Industrial Medical Telecommunications	Blind Mating	0.587 in	14.91 mm
Molex 0438790057	Latch Holder	Shrouded - 4 Wall	0.076 µm	3 µin	6.25 mm	0.246 in	UL94 V-0	4.2 mm	0.165 in	Press-Fit Solder	2.54 µm	100 µin	2	Through Hole	Board to Board Cable	Black	All	Male Pin	8	4.2 mm	0.165 in	Square	Header	Nylon Polyamide (PA)	Phosphor Bronze	Tin	General Purpose Industrial Medical Telecommunications	Blind Mating	0.587 in	14.91 mm	Varies by Wire Gauge	600 VAC	Gold	-40 °C	105 ░C
Molex 0438796009	Latch Holder	Shrouded - 4 Wall	2.54 çm	100 çin	6.25 mm	0.246 in	UL94 V-0	4.2 mm	0.165 in	Press-Fit Solder	2.54 µm	100 µin	2	Through Hole	Board to Board Cable	Black	All	Male Pin	18	4.2 mm	0.165 in	Square	Header	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	Tin	General Purpose Industrial Medical Telecommunications	Blind Mating	0.587 in	14.91 mm
Molex 0438796016	Latch Holder	Shrouded - 4 Wall	0.76 Ám	30 Áin	6.25 mm	0.246 in	UL94 V-0	4.2 mm	0.165 in	Press-Fit Solder	2.54 µm	100 µin	2	Through Hole	Board to Board Cable	Black	All	Male Pin	10	4.2 mm	0.165 in	Square	Header	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	Tin	General Purpose Industrial Medical Telecommunications	Blind Mating	0.587 in	14.91 mm			Gold
Molex 0438796010	Latch Holder	Shrouded - 4 Wall	2.54 çm	100 çin	6.25 mm	0.246 in	UL94 V-0	4.2 mm	0.165 in	Press-Fit Solder	2.54 µm	100 µin	2	Through Hole	Board to Board Cable	Black	All	Male Pin	6	4.2 mm	0.165 in	Square	Header	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	Tin	General Purpose Industrial Medical Telecommunications	Blind Mating	0.587 in	14.91 mm
Molex 0438796039	Latch Holder	Shrouded - 4 Wall	2.54 çm	100 çin	6.25 mm	0.246 in	UL94 V-0	4.2 mm	0.165 in	Press-Fit Solder	2.54 µm	100 µin	2	Through Hole	Board to Board Cable	Black	All	Male Pin	10	4.2 mm	0.165 in	Square	Header	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	Tin	General Purpose Industrial Medical Telecommunications	Blind Mating	0.587 in	14.91 mm

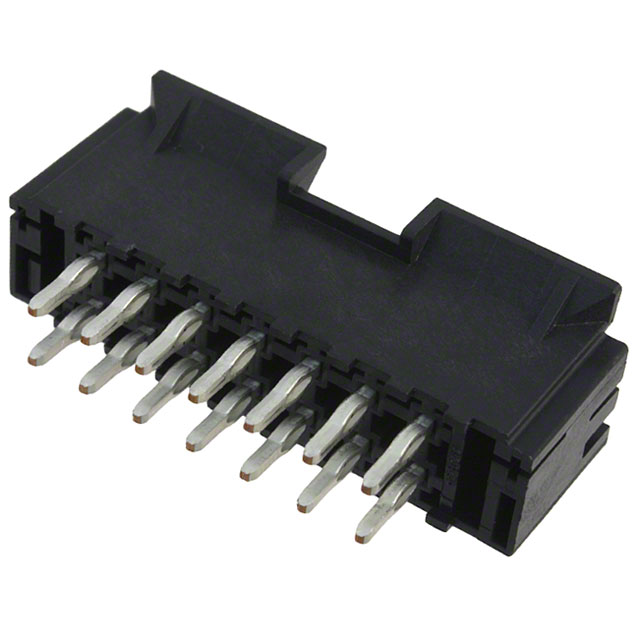

Molex 0438790038	Latch Holder	Shrouded - 4 Wall	0.76 Ám	30 Áin	5.82 mm	0.229 in	UL94 V-0	4.2 mm	0.165 in	Press-Fit Solder	2.54 µm	100 µin	2	Through Hole	Board to Board Cable	Black	All	Male Pin	14	4.2 mm	0.165 in	Square	Header	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	Tin	General Purpose Industrial Medical Telecommunications	Blind Mating	0.587 in	14.91 mm			Gold
Molex 0438796032	Latch Holder	Shrouded - 4 Wall	2.54 çm	100 çin	6.25 mm	0.246 in	UL94 V-0	4.2 mm	0.165 in	Press-Fit Solder	2.54 µm	100 µin	2	Through Hole	Board to Board Cable	Black	All	Male Pin	24	4.2 mm	0.165 in	Square	Header	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	Tin	General Purpose Industrial Medical Telecommunications	Blind Mating	0.587 in	14.91 mm
Molex 0438796041	Latch Holder	Shrouded - 4 Wall	2.54 çm	100 çin	6.25 mm	0.246 in	UL94 V-0	4.2 mm	0.165 in	Press-Fit Solder	2.54 µm	100 µin	2	Through Hole	Board to Board Cable	Black	All	Male Pin	24	4.2 mm	0.165 in	Square	Header	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	Tin	General Purpose Industrial Medical Telecommunications	Blind Mating	0.587 in	14.91 mm
Molex 0438796014	Latch Holder	Shrouded - 4 Wall	0.76 Ám	30 Áin	6.25 mm	0.246 in	UL94 V-0	4.2 mm	0.165 in	Press-Fit Solder	2.54 µm	100 µin	2	Through Hole	Board to Board Cable	Black	All	Male Pin	10	4.2 mm	0.165 in	Square	Header	Glass Filled Nylon Polyamide (PA)	Phosphor Bronze	Tin	General Purpose Industrial Medical Telecommunications	Blind Mating	0.587 in	14.91 mm			Gold
