2823107 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

3P,2MM,BRK HDR,SRVT,SMD,0.1AU,TR

Part	Current Rating (Amps)	Fastening Type	Contact Material	Mounting Type	Features	Contact Finish - Post	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Insulation Height	Insulation Height	Voltage Rating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Type	Termination	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Shrouding	Number of Rows	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions

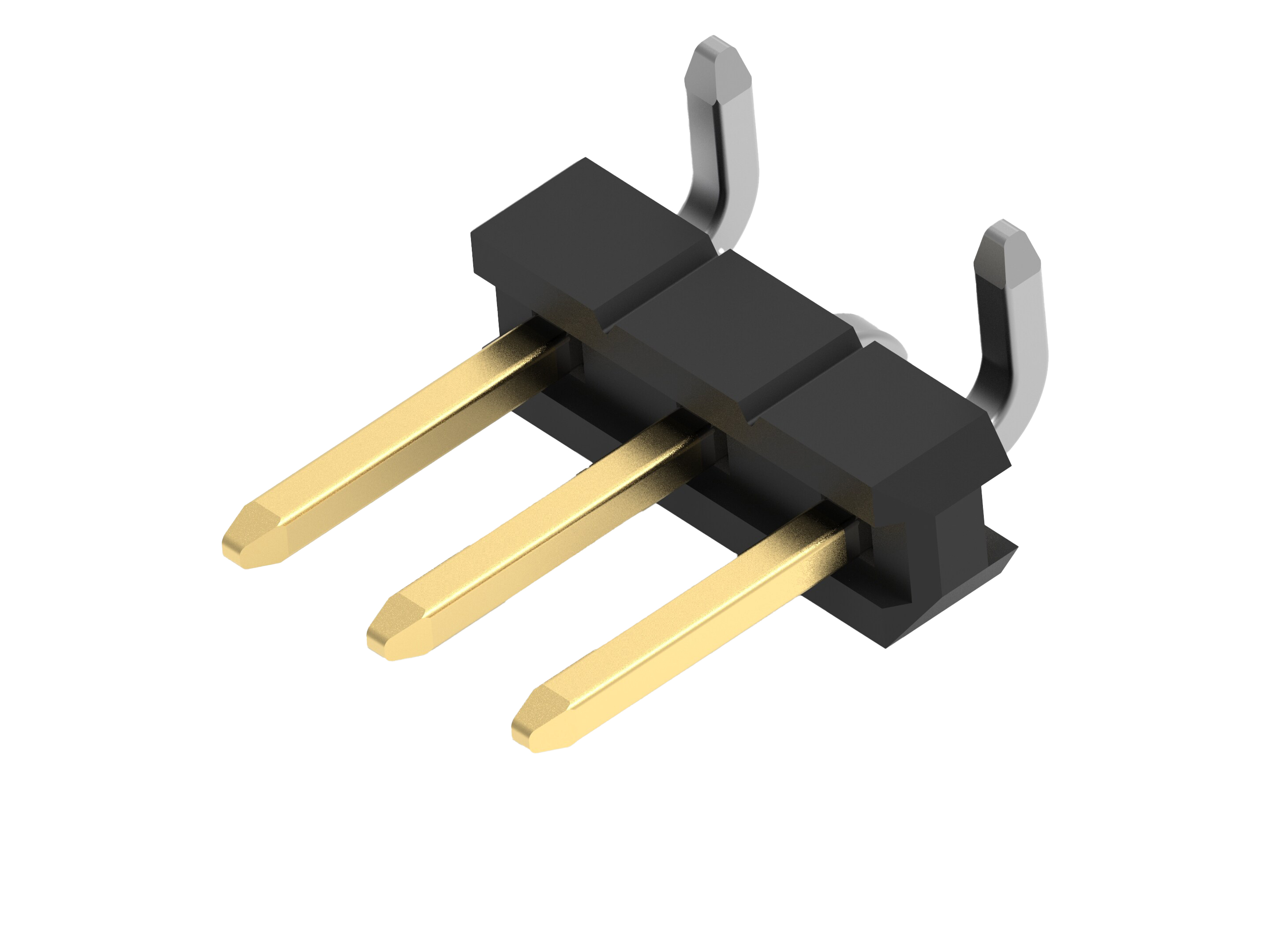

TE Connectivity Raychem Cable Protection 2823107-3	2 A	Push-Pull	Phosphor Bronze	Surface Mount	Pick and Place	Tin	All	0.079 in	2 mm	Black	1.5 mm	0.059 "	125 VAC	UL94 V-0	157.5 Áin	4 Ám	125 °C	-40 °C	Breakaway Header	Male Pin	Solder	Square	3.94 µin	0.1 µm	Thermoplastic	Unshrouded	1	Gold	4 mm	0.157 in

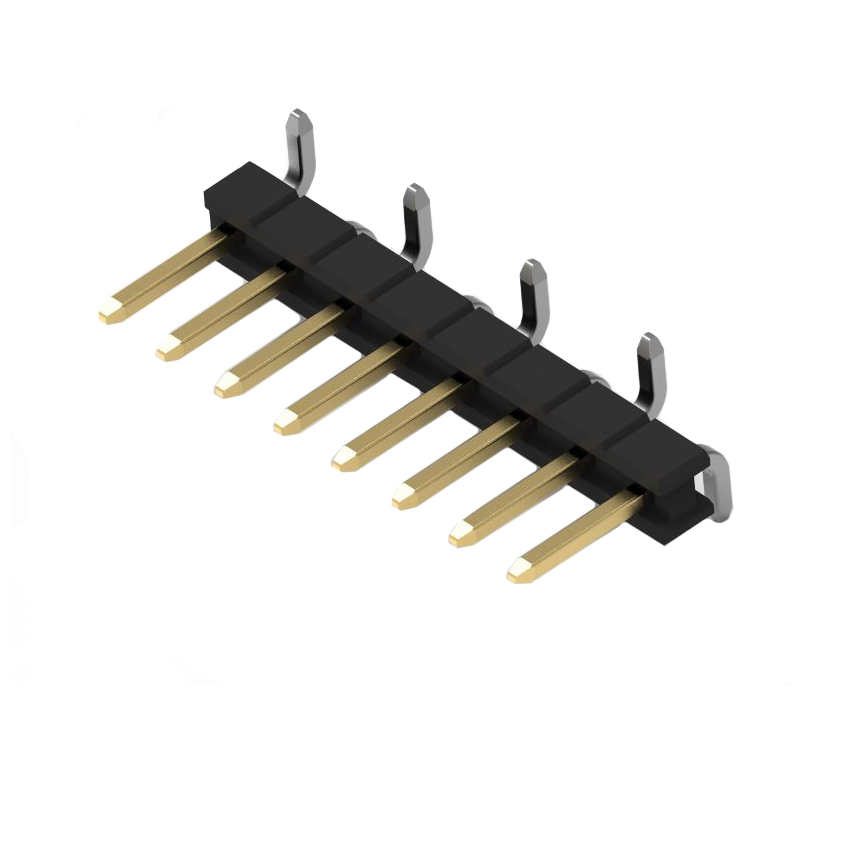

TE Connectivity Raychem Cable Protection 2-2823107-5	2 A	Push-Pull	Phosphor Bronze	Surface Mount	Pick and Place	Tin	All	0.079 in	2 mm	Black	1.5 mm	0.059 "	125 VAC	UL94 V-0	157.5 Áin	4 Ám	125 °C	-40 °C	Breakaway Header	Male Pin	Solder	Square	3.94 µin	0.1 µm	Thermoplastic	Unshrouded	1	Gold	4 mm	0.157 in
TE Connectivity Raychem Cable Protection 2823107-4	2 A	Push-Pull	Phosphor Bronze	Surface Mount	Pick and Place	Tin	All	0.079 in	2 mm	Black	1.5 mm	0.059 "	125 VAC	UL94 V-0	157.5 Áin	4 Ám	125 °C	-40 °C	Breakaway Header	Male Pin	Solder	Square	3.94 µin	0.1 µm	Thermoplastic	Unshrouded	1	Gold	4 mm	0.157 in	4

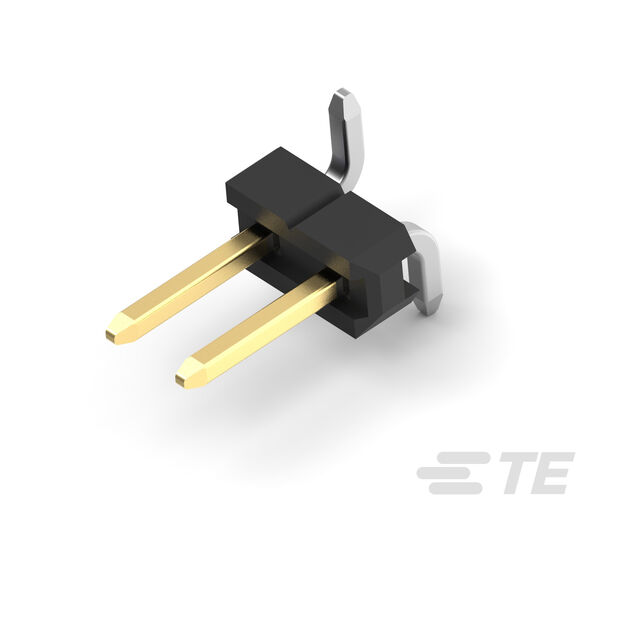

TE Connectivity Raychem Cable Protection 2823107-2	2 A	Push-Pull	Phosphor Bronze	Surface Mount	Pick and Place	Tin	All	0.079 in	2 mm	Black	1.5 mm	0.059 "	125 VAC	UL94 V-0	157.5 Áin	4 Ám	125 °C	-40 °C	Breakaway Header	Male Pin	Solder	Square	3.94 µin	0.1 µm	Thermoplastic	Unshrouded	1	Gold	4 mm	0.157 in	2
