002245 Series
Manufacturer: Molex
Beta
⌘K

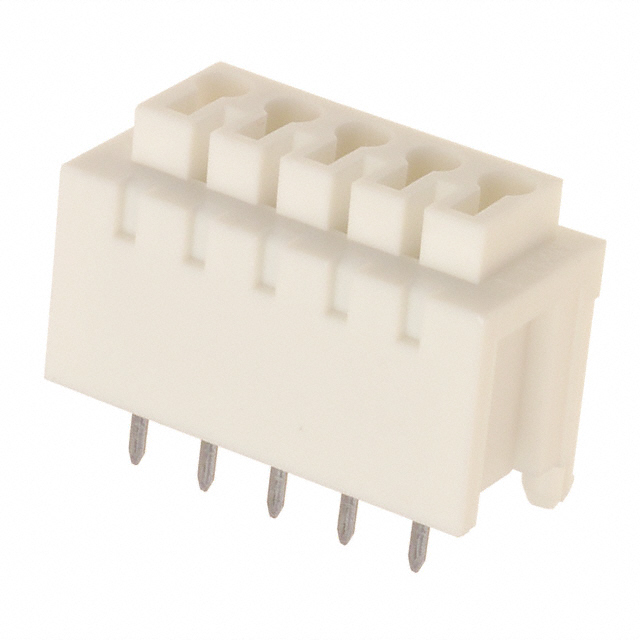

TERM BLK 5POS TOP ENT 4.57MM PCB
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material - Plating | Housing Material | Color | Mating Orientation | Positions Per Level | Number of Levels | Mounting Type | Pitch | Pitch | Wire Gauge [Max] | Wire Gauge [Min] | Voltage | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 70 °C | -10 °C | Phosphor Bronze - Tin Plated | Polyester Glass Filled | White | Vertical with Board | 5 | 1 | Through Hole | 4.57 mm | 0.18 in | 20 AWG | 16 AWG | 600 V | Leg Spring Push-In Spring |
