ALCOSWITCH TPD Series

Catalog

TPD11CGRA6=TINY BUSHBUTTON

Part	Electrical Life	Switch Function	Voltage Rating - DC	Mounting Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Color - Actuator/Cap	Termination Style	Type	Current Rating (Amps)	Actuator Type	Voltage Rating - AC
TE Connectivity AMP Connectors TPD11CGRA6
TE Connectivity AMP Connectors TPD21MGRA0	80000 Cycles	Off-Mom	20 V	Right Angle Through Hole	DPST-NO	-30 ░C	65 °C	No Marking	Black	PC Pin	Standard	0.4 VA	Plunger Round	20 V

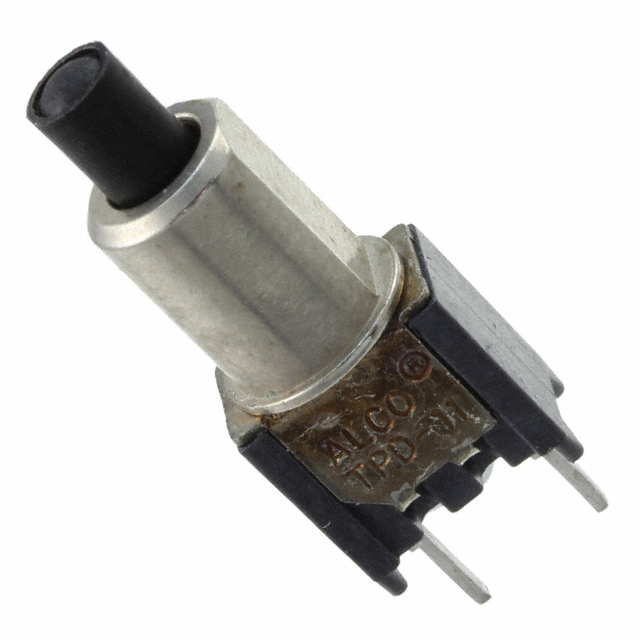

TE Connectivity AMP Connectors 1825099-1	100000 Cycles	Off-Mom	20 V	Through Hole	SPST-NO	-30 ░C	65 °C	No Marking	Black	PC Pin	Standard	0.4 VA	Plunger Round	20 V
TE Connectivity AMP Connectors TPD11CGPC2	100000 Cycles	Off-Mom	20 V	Through Hole	SPST-NO	-30 ░C	65 °C	No Marking	Red	PC Pin	Standard	0.4 VA	Plunger Round	20 V
TE Connectivity AMP Connectors TPD21RGPC0	80000 Cycles	On-Mom	20 V	Through Hole	DPDT	-30 ░C	65 °C	No Marking	Black	PC Pin	Standard	0.4 VA	Plunger Round	20 V
