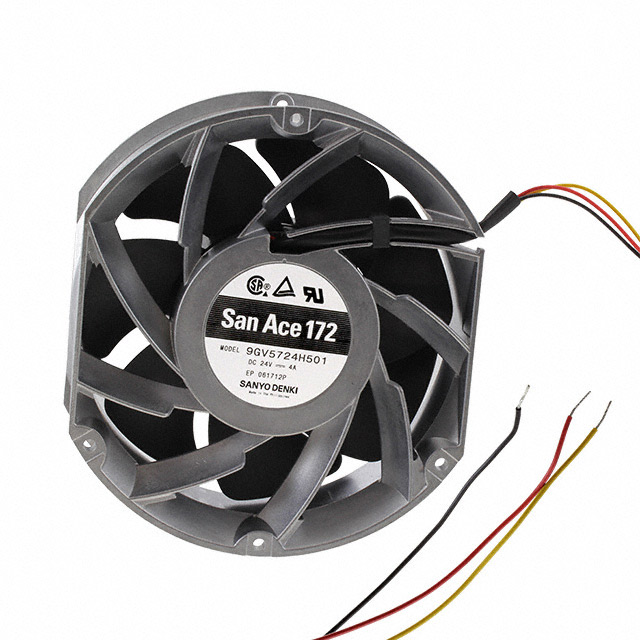

9GV5724 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K
FAN AXIAL 172X51MM 24VDC WIRE
| Part | Current Rating (Amps) | Lifetime @ Temp. | Material - Frame | Material - Blade | Features | Static Pressure | Static Pressure | Termination | Noise | Bearing Type | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | RPM | Size / Dimension | Size / Dimension [y] | Size / Dimension [x] | Air Flow | Air Flow | Power (Watts) | Width [x] | Fan Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 4 A | 40000 Hrs | Aluminum | Plastic | Speed Sensor (Tach) | 2.77 in H2O | 690 Pa | 3 Wire Leads | 74 dB(A) | Ball | 24 VDC | -20 ░C | 70 °C | 800 g | 1.8 lbs | 6300 RPM | Rectangular/Rounded | 150 mm | 172 mm | 400 CFM | 11.2 mł/min | 96 W | 51 mm | Tubeaxial | CSA TUV UL |
 Sanyo Denki America Inc. | 4 A | 40000 Hrs | Aluminum | Plastic | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 2.77 in H2O | 690 Pa | 4 Wire Leads | 74 dB(A) | Ball | 24 VDC | -20 ░C | 70 °C | 800 g | 1.8 lbs | 6300 RPM | Rectangular/Rounded | 150 mm | 172 mm | 400 CFM | 11.2 mł/min | 96 W | 51 mm | Tubeaxial | CSA TUV UL |
