FUS 250V F/A MIDGET 7A
Description
AI

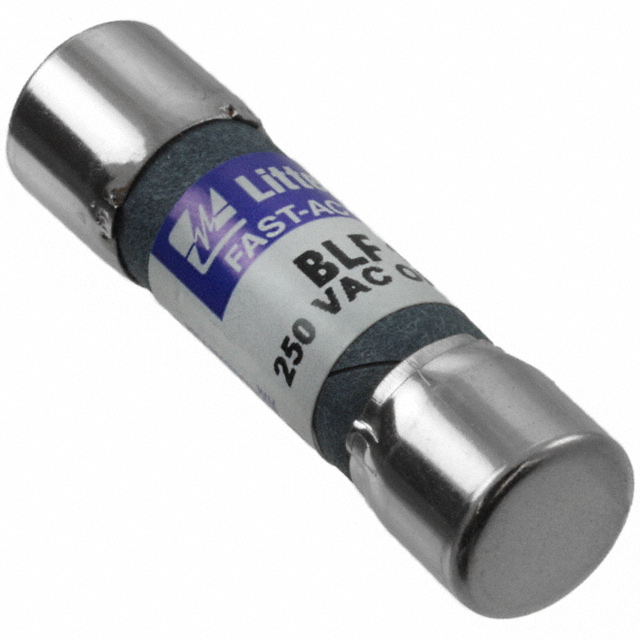

BLF007 is a Midget fuse with an ampere rating of 7 and 250 V ac.
Beta
⌘K
FUS 250V F/A MIDGET 7A
FUS 250V F/A MIDGET 7A
| Part | Current Rating (Amps) | Fuse Type | Mounting Type | Voltage Rating - AC | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Package / Case | Package / Case [y] | Package / Case [x] | Response Time | Applications | DC Cold Resistance | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 7 A | Cartridge | Requires Holder | 250 VAC | 0.406 in | 38.1 mm | 1.5 in | 10.31 mm | 5AG | 38 mm | 10 mm | Fast Blow | Electrical Industrial | 0.023 Ohms | CSA UR |
