177665 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

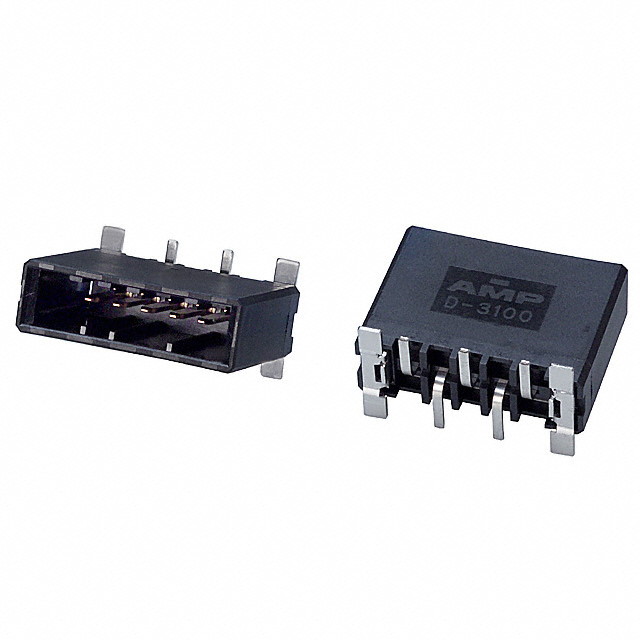

CONN HEADER SMD 5POS 3.81MM
| Part | Insulation Height | Insulation Height | Insulation Material | Material Flammability Rating | Connector Type | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Termination | Mounting Type | Fastening Type | Contact Material | Applications | Contact Finish - Mating | Insulation Color | Style | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Shrouding | Contact Shape | Contact Finish - Post | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.89 in | 22.61 mm | Glass Filled Polyester Thermoplastic | UL94 V-0 | Header | All | 3.81 mm | 0.15 in | Solder | Surface Mount | Detent Lock | Copper Alloy | General Purpose Industrial | Gold PdNi +Gold | Black | Board to Board Cable | Solder Retention | 105 ░C | -55 °C | 1 | 15 µin | 0.38 µm | Tab | Shrouded - 4 Wall | Rectangular | Tin | 250 VDC |
