1489715 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

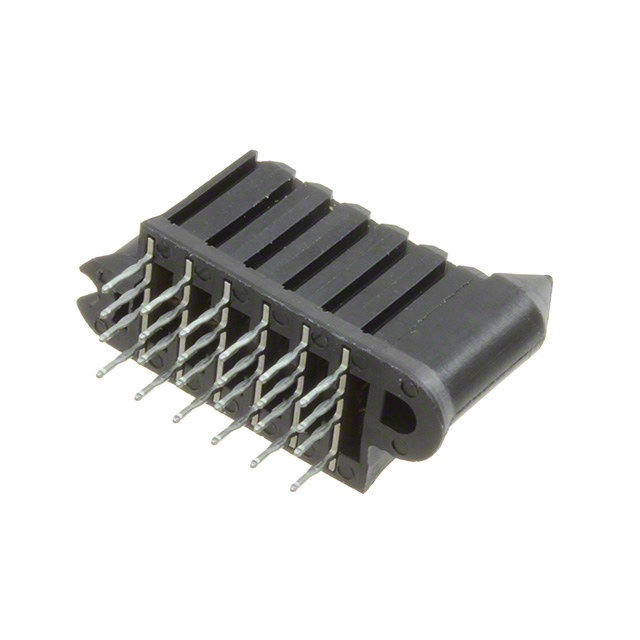

CONN RCPT MINI-DRAWER 6POS PCB
| Part | Number of Rows | Voltage Rating | Number of Positions | Material Flammability Rating | Connector Type | Color | Termination | Features | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Connector Style | Number of Positions Loaded | Mounting Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | 300 VDC | 6 | UL94 V-0 | Receptacle Female Blade Sockets | Black | Press-Fit | Guide Pin | Gold | 50 µin | 1.27 µm | 16 A | Mini-Drawer | All | Through Hole | 3 mm | 0.118 in | -55 °C | 125 °C | 6 Power |
