WB12T Series

Catalog

PUSHBUTTON SWITCH, SEALED, WB SERIES, 12.5 MM, SPDT, ON-ON, ROUND, BLACK

Part	Mechanical Life	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Panel Cutout Dimensions [diameter]	Features	Termination Style	Ingress Protection	Color - Actuator/Cap	Current Rating (Amps)	Circuit	Mounting Type	Type	Actuator Marking	Voltage Rating - AC	Switch Function	Voltage Rating - DC
NKK Switches WB12T-DA	30000 Steps	15000 Cycles	-30 ░C	70 °C	Button Round	12.5 mm	Stainless Steel	Screw Terminal	IP67 - Dust Tight Waterproof	Black	6 A	SPDT	Panel Mount Rear	Standard	No Marking	125 V	On-On	30 V

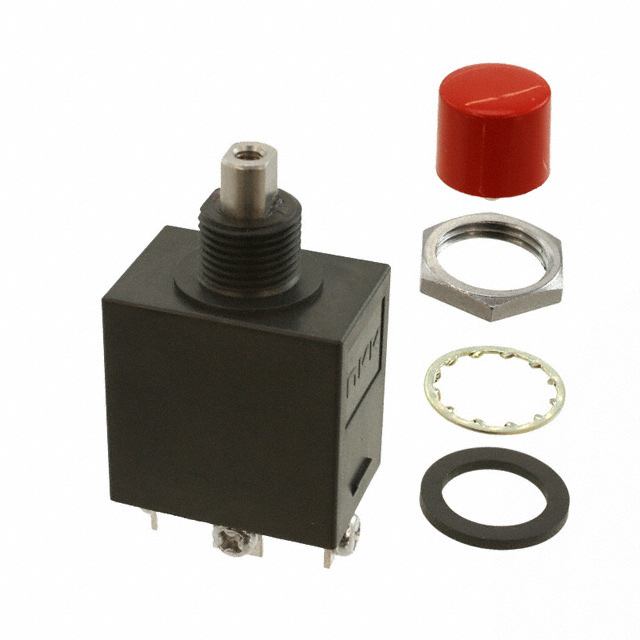

NKK Switches WB12T-DC	30000 Steps	15000 Cycles	-30 ░C	70 °C	Button Round	12.5 mm	Stainless Steel	Screw Terminal	IP67 - Dust Tight Waterproof	Red	6 A	SPDT	Panel Mount Rear	Standard	No Marking	125 V	On-On	30 V
NKK Switches WB12T-EA	30000 Steps	15000 Cycles	-30 ░C	70 °C	Button Round	12.5 mm	Stainless Steel	Screw Terminal	IP67 - Dust Tight Waterproof	Black	6 A	SPDT	Panel Mount Rear	Standard	No Marking	125 V	On-On	30 V
