HLMP-1301 Series

Catalog

LED RED DIFFUSED T-1 T/H

Part	Lens Transparency	Viewing Angle	Package / Case	Height (Max) [Max] [z]	Color	Lens Style	Current - Test	Wavelength - Dominant	Mounting Type	Voltage - Forward (Vf) (Typ)	Lens Color	Millicandela Rating	Wavelength - Peak	Supplier Device Package	Configuration	Lens Size	Lens Size	Current	Voltage Rating
Broadcom Limited HLMP-1301-G00FG	Diffused	60 °	Radial	6.35 mm	Red	Round with Domed Top	10 mA	626 nm	Through Hole	1.9 V	Red	8.6 mcd	635 nm	T-1	Standard	3 mm	T-1

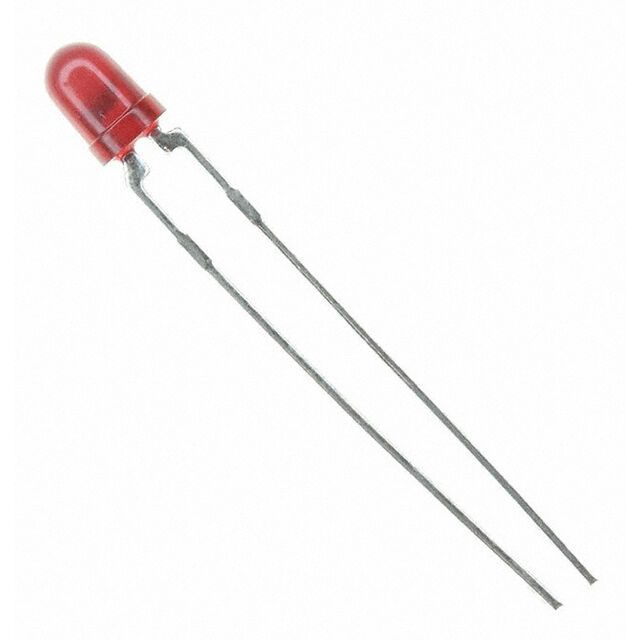

Broadcom Limited HLMP-1301-E0002	Diffused	60 °	Radial	6.35 mm	Red	Round with Domed Top	10 mA	626 nm	Through Hole	1.9 V	Red	3.4 mcd	635 nm	T-1 (3mm)	Standard	3 mm	T-1
Broadcom Limited HLMP-1301-G00A1		60 °			Red	Round with Domed Top			Through Hole Right Angle			3.4 mcd	635 nm		Single	3 mm	T-1	10 mA	1.9 V
Broadcom Limited HLMP-1301-G0002	Diffused	60 °	Radial	6.35 mm	Red	Round with Domed Top	10 mA	626 nm	Through Hole	1.9 V	Red	8.6 mcd	635 nm	T-1	Standard	3 mm	T-1
