24878 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

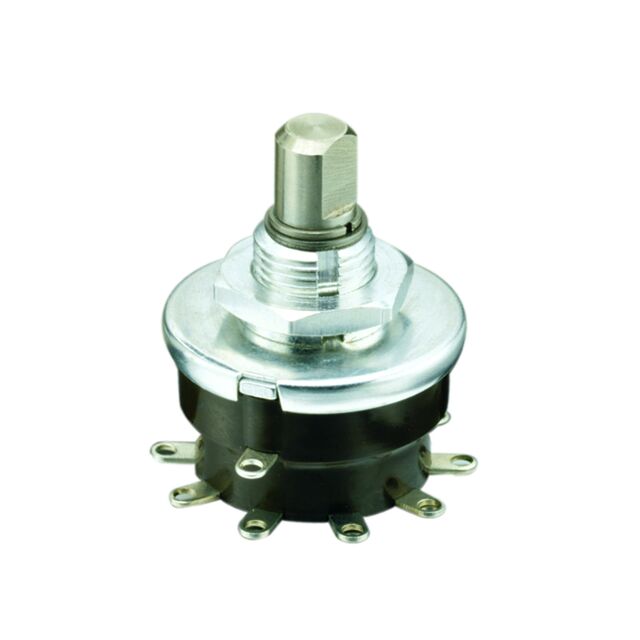

SWITCH ROTARY 3POS 1A 115V
| Part | Number of Decks [custom] | Mounting Type | Depth Behind Panel [z] | Contact Timing | Termination Style | Voltage Rating - AC | Circuit per Deck | Actuator Length [x] | Current Rating (Amps) | Contact Material | Angle of Throw | Index Stops | Actuator Type | Contact Finish | Number of Poles per Deck | Voltage Rating - DC | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 1 | Panel Mount Through Hole | 17.45 mm | Shorting (MBB) | PC Pin | 115 V | SP3T | 7.92 mm | 1 A | Phosphor Bronze | 36 ° | Fixed | Flatted (6.35mm Dia) | Silver | 1 | 28 V | |
 Grayhill Inc. | 1 | Panel Mount Through Hole | 17.45 mm | Non-Shorting (BBM) | PC Pin | 115 V | SP3T | 7.92 mm | 1 A | Phosphor Bronze | 36 ° | Fixed | Flatted (6.35mm Dia) | Silver | 1 | 28 V | |
 Grayhill Inc. | 1 | Panel Mount Through Hole | 17.45 mm | Shorting (MBB) | PC Pin | 115 V | SP7T | 7.92 mm | 1 A | Phosphor Bronze | 36 ° | Fixed | Flatted (6.35mm Dia) | Silver | 1 | 28 V | 7 |
Grayhill Inc. | 1 | Panel Mount Through Hole | 17.45 mm | Non-Shorting (BBM) | PC Pin | 115 V | SPDT | 7.92 mm | 1 A | Phosphor Bronze | 36 ° | Fixed | Flatted (6.35mm Dia) | Silver | 1 | 28 V | 2 |
Grayhill Inc. | 1 | Panel Mount Through Hole | 17.45 mm | Non-Shorting (BBM) | PC Pin | 115 V | SP10T | 7.92 mm | 1 A | Phosphor Bronze | 36 ° | Continuous | Flatted (6.35mm Dia) | Silver | 1 | 28 V | 10 |
Grayhill Inc. | 1 | Panel Mount Through Hole | 17.45 mm | Shorting (MBB) | PC Pin | 115 V | SP6T | 7.92 mm | 1 A | Phosphor Bronze | 36 ° | Fixed | Flatted (6.35mm Dia) | Silver | 1 | 28 V | 6 |
