UNHS20 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
IC CIRCUIT PROTECTR 1.2A SNMP 2P
| Part | DC Cold Resistance | Voltage Rating - DC | Response Time | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Fuse Type | Voltage Rating - AC | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

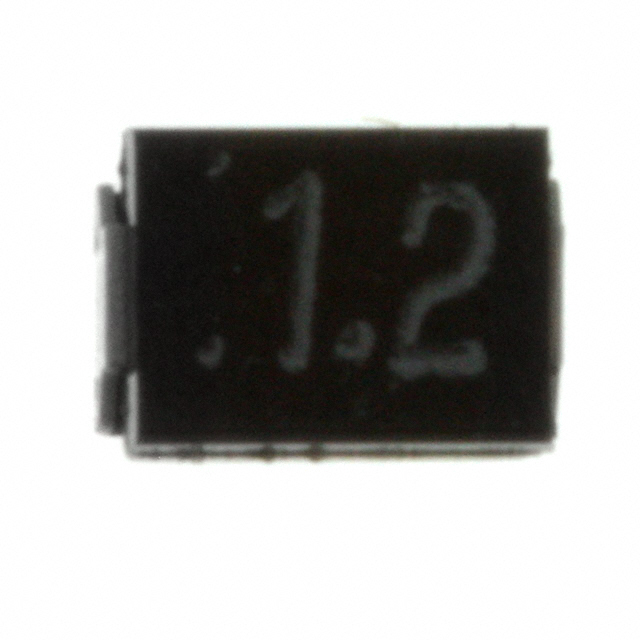

 Panasonic Electronic Components | 45 mOhms | 50 VDC | Fast Blow | 3 mm | 2.2 mm | 0.087 " | 2.3 mm | 0.091 in | 0.118 " | Board Mount (Cartridge Style Excluded) | 50 V | 1.2 A | -55 C | 125 °C | Surface Mount | 2-SMD J-Lead |

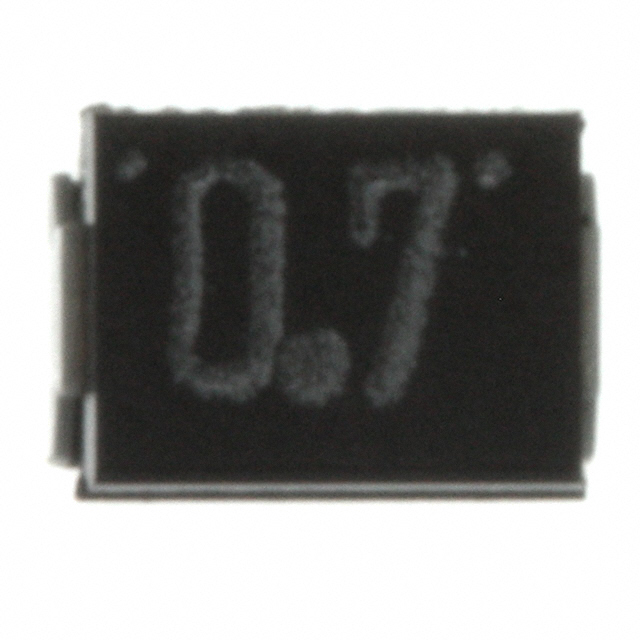

 Panasonic Electronic Components | 0.095 Ohms | 50 VDC | Fast Blow | 3 mm | 2.2 mm | 0.087 " | 2.3 mm | 0.091 in | 0.118 " | Board Mount (Cartridge Style Excluded) | 50 V | 700 mA | -55 C | 125 °C | Surface Mount | 2-SMD J-Lead |
