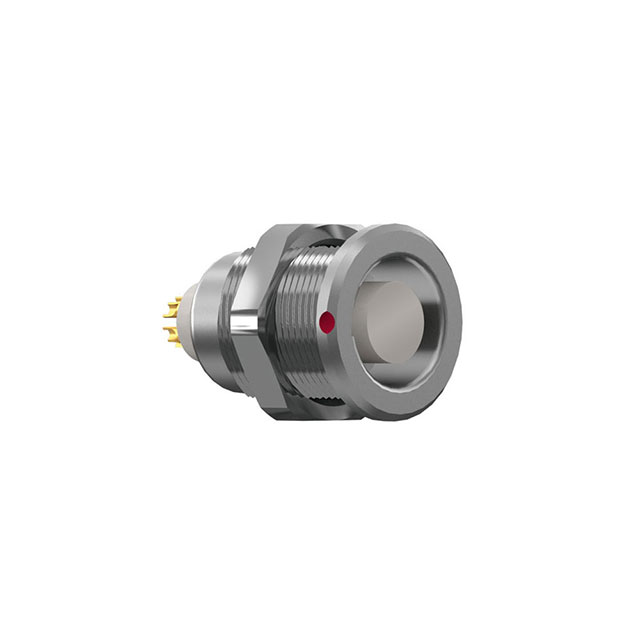

G1CL0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 4P GOLD SLDR CUP
| Part | Features | Shell Material | Current Rating (Amps) | Primary Material | Mounting Type | Orientation | Number of Positions | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Shell Size - Insert | Fastening Type | Ingress Protection | Insert Material | Contact Material | Mounting Feature | Applications | Color | Connector Type | Shielding | Voltage Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ground | Brass | 4 A | Metal | Panel Mount | 0 | 4 | Chrome over Nickel | 120 °C | -40 C | Gold | 00 | Push-Pull | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Brass | Bulkhead - Rear Side Nut | Industrial Medical Military Testing Equipment & Measurement | Silver | Receptacle Female Sockets | ||||
Ground | Brass | 4 A | Metal | Panel Mount Through Hole | 0 | 2 | Chrome over Nickel | 120 °C | -40 C | Gold | 00 | Push-Pull | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Brass | Bulkhead - Rear Side Nut | Industrial Medical Military Testing Equipment & Measurement | Silver | Receptacle Female Sockets | Unshielded | 366 V | Solder | |
Ground | Brass | 4 A | Metal | Panel Mount | 0 | 2 | Chrome over Nickel | 120 °C | -40 C | Gold | 00 | Push-Pull | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Brass | Bulkhead - Rear Side Nut | Industrial Medical Military Testing Equipment & Measurement | Silver | Receptacle Female Sockets |
