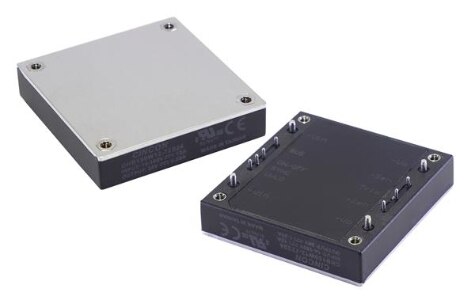

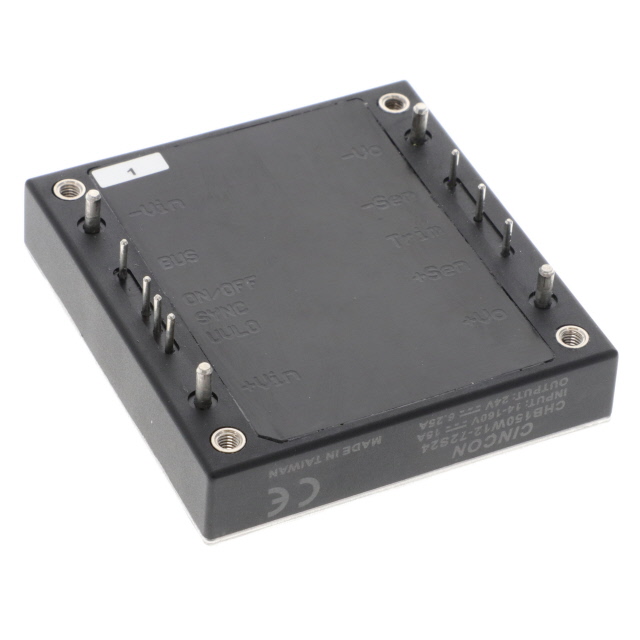

CHB150W12 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 150W 14-160VIN 24VOUT 6.25A

Part	Supplier Device Package	Efficiency	Voltage - Isolation	Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Mounting Type	Approval Agency	Voltage - Input (Max) [Max]	Control Features	Applications	Power (Watts)	Number of Outputs
Cincon Electronics Co. LTD CHB150W12-72S24	Half Brick	90 %	3000 V	Isolated Module	6.25 A	14 V	24 V	-40 C	100 °C	50155 62368-1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Through Hole	CB CE cURus	160 V	Active High Enable	ITE (Commercial) Railway	150 W	1
Cincon Electronics Co. LTD CHB150W12-72S05	Half Brick	90 %	3000 V	Isolated Module	25 A	14 V	5 V	-40 C	100 °C	50155 62368-1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Through Hole	CB CE cURus	160 V	Active High Enable	ITE (Commercial) Railway	150 W	1
Cincon Electronics Co. LTD CHB150W12-72S24N	Half Brick	90 %	3000 V	Isolated Module	6.25 A	14 V	24 V	-40 C	100 °C	50155 62368-1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Through Hole	CB CE cURus	160 V	Active Low Enable	ITE (Commercial) Railway	150 W	1
Cincon Electronics Co. LTD CHB150W12-72S48N	Half Brick	90 %	3000 V	Isolated Module	3.2 A	14 V	48 V	-40 C	100 °C	50155 62368-1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Through Hole	CB CE cURus	160 V	Active Low Enable	ITE (Commercial) Railway	150 W	1
Cincon Electronics Co. LTD CHB150W12-72S12N	Half Brick	90 %	3000 V	Isolated Module	12.5 A	14 V	12 V	-40 C	100 °C	50155 62368-1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Through Hole	CB CE cURus	160 V	Active Low Enable	ITE (Commercial) Railway	150 W	1
Cincon Electronics Co. LTD CHB150W12-72S05N	Half Brick	90 %	3000 V	Isolated Module	25 A	14 V	5 V	-40 C	100 °C	50155 62368-1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Through Hole	CB CE cURus	160 V	Active Low Enable	ITE (Commercial) Railway	150 W	1
Cincon Electronics Co. LTD CHB150W12-72S48	Half Brick	90 %	3000 V	Isolated Module	3.2 A	14 V	48 V	-40 C	100 °C	50155 62368-1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Through Hole	CB CE cURus	160 V	Active High Enable	ITE (Commercial) Railway	150 W	1
Cincon Electronics Co. LTD CHB150W12-72S15	Half Brick	90 %	3000 V	Isolated Module	10 A	14 V	15 V	-40 C	100 °C	50155 62368-1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Through Hole	CB CE cURus	160 V	Active High Enable	ITE (Commercial) Railway	150 W	1
Cincon Electronics Co. LTD CHB150W12-72S12	Half Brick	90 %	3000 V	Isolated Module	12.5 A	14 V	12 V	-40 C	100 °C	50155 62368-1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Through Hole	CB CE cURus	160 V	Active High Enable	ITE (Commercial) Railway	150 W	1
Cincon Electronics Co. LTD CHB150W12-72S15N	Half Brick	90 %	3000 V	Isolated Module	10 A	14 V	15 V	-40 C	100 °C	50155 62368-1	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	Through Hole	CB CE cURus	160 V	Active Low Enable	ITE (Commercial) Railway	150 W	1
