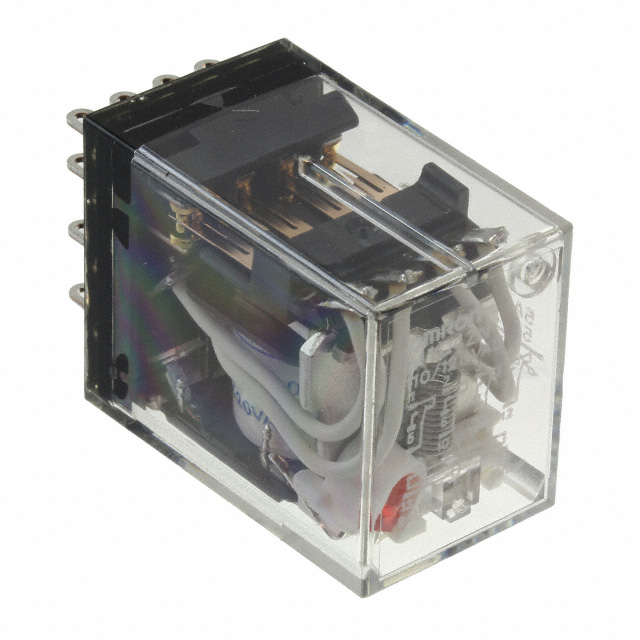

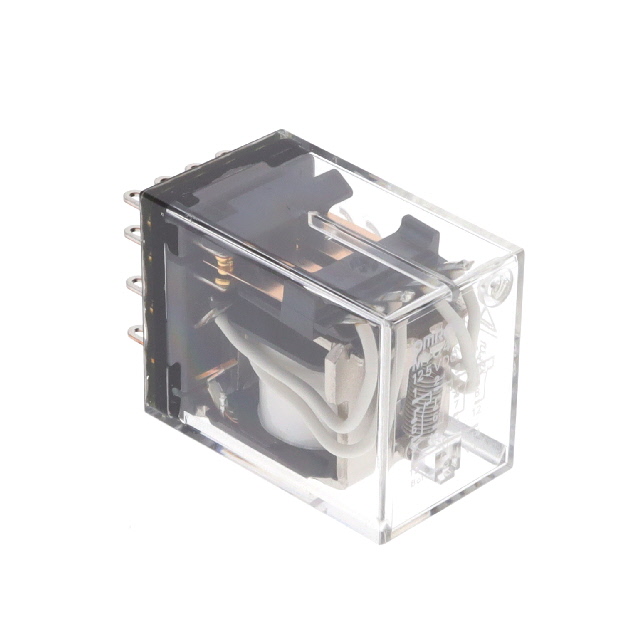

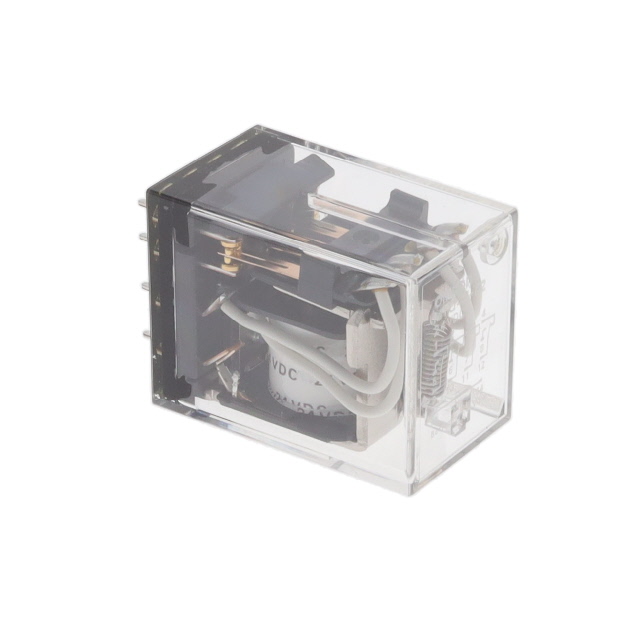

MYQ4 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 4PDT 1A 24V
| Part | Operate Time | Contact Form | Coil Resistance | Features | Mounting Type | Seal Rating | Contact Rating (Current) | Release Time | Coil Voltage | Termination Style | Must Operate Voltage | Relay Type | Contact Material | Coil Current | Switching Voltage | Must Release Voltage | Load - Max Switching | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 20 ms | 4PDT (4 Form C) | 650 Ohms | Lighted Indicator | Socketable | Sealed - Fully | 1 A | 20 ms | 24 VDC | Plug In | 19.2 VDC | General Purpose | Gold (Au) Silver (Ag) | 36.9 mA | 125 VDC 250 VAC | 2.4 VDC | 125 W 250 VA | -55 °C | 60 °C | Non Latching | CSA UR |
 Omron Electronics Inc-EMC Div | 20 ms | 4PDT (4 Form C) | 650 Ohms | Through Hole | Sealed - Fully | 1 A | 20 ms | 24 VDC | PC Pin | 19.2 VDC | General Purpose | Gold (Au) Silver (Ag) | 36.9 mA | 125 VDC 250 VAC | 2.4 VDC | 125 W 250 VA | -55 °C | 60 °C | Non Latching | CSA UR | |
 Omron Electronics Inc-EMC Div | 20 ms | 4PDT (4 Form C) | 4.43 kOhms | Socketable | Sealed - Fully | 1 A | 20 ms | 120 VAC | Plug In | 96 VAC | General Purpose | Gold (Au) Silver (Ag) | 9.2 mA | 125 VDC 250 VAC | 36 VAC | 125 W 250 VA | -55 °C | 60 °C | Non Latching | CSA UR | |
Omron Electronics Inc-EMC Div | 20 ms | 4PDT (4 Form C) | 12.95 kOhms | Through Hole | Sealed - Fully | 1 A | 20 ms | 220 VAC/DC | PC Pin | 176 VAC | General Purpose | Gold (Au) Silver (Ag) | 5.8 mA | 125 VDC 250 VAC | 66 VAC | 125 W 250 VA | -55 °C | 60 °C | Non Latching | CSA UR | |
Omron Electronics Inc-EMC Div | 20 ms | 4PDT (4 Form C) | 3.75 kOhms | Through Hole | Sealed - Fully | 1 A | 20 ms | 110 VAC/DC | PC Pin | 88 VAC/DC | General Purpose | Gold (Au) Silver (Ag) | 11 mA | 125 VDC 250 VAC | 33 VAC | 125 W 250 VA | -55 °C | 60 °C | Non Latching | CSA UR | |
Omron Electronics Inc-EMC Div | 20 ms | 4PDT (4 Form C) | 18.79 kOhms | Through Hole | Sealed - Fully | 1 A | 20 ms | 240 VAC | PC Pin | 192 VAC | General Purpose | Gold (Au) Silver (Ag) | 4.6 mA | 125 VDC 250 VAC | 72 VAC/DC | 125 W 250 VA | -55 °C | 60 °C | Non Latching | CSA UR | |
 Omron Electronics Inc-EMC Div | 20 ms | 4PDT (4 Form C) | 4.43 kOhms | Lighted Indicator | Socketable | Sealed - Fully | 1 A | 20 ms | 120 VAC | Plug In | 96 VAC | General Purpose | Gold (Au) Silver (Ag) | 9.2 mA | 125 VDC 250 VAC | 36 VAC | 125 W 250 VA | -55 °C | 60 °C | Non Latching | CSA UR |
 Omron Electronics Inc-EMC Div | 20 ms | 4PDT (4 Form C) | 12.95 kOhms | Through Hole | Sealed - Fully | 1 A | 20 ms | 220 VAC/DC | PC Pin | 176 VAC | General Purpose | Gold (Au) Silver (Ag) | 5.8 mA | 125 VDC 250 VAC | 66 VAC | 125 W 250 VA | -55 °C | 60 °C | Non Latching | CSA UR | |
 Omron Electronics Inc-EMC Div | 20 ms | 4PDT (4 Form C) | 650 Ohms | Lighted Indicator | Socketable | Sealed - Fully | 1 A | 20 ms | 24 VDC | Plug In | 19.2 VDC | General Purpose | Gold (Au) Silver (Ag) | 36.9 mA | 125 VDC 250 VAC | 2.4 VDC | 125 W 250 VA | -55 °C | 60 °C | Non Latching | CSA UR |
 Omron Electronics Inc-EMC Div | 20 ms | 4PDT (4 Form C) | 17.36 kOhms | Socketable | Sealed - Fully | 1 A | 20 ms | 125 VDC | Plug In | 100 VDC | General Purpose | Gold (Au) Silver (Ag) | 7.2 mA | 125 VDC 250 VAC | 12.5 VDC | 125 W 250 VA | -55 °C | 60 °C | Non Latching | CSA UR |
