HYW08025012 Series
Manufacturer: YS TECH USA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

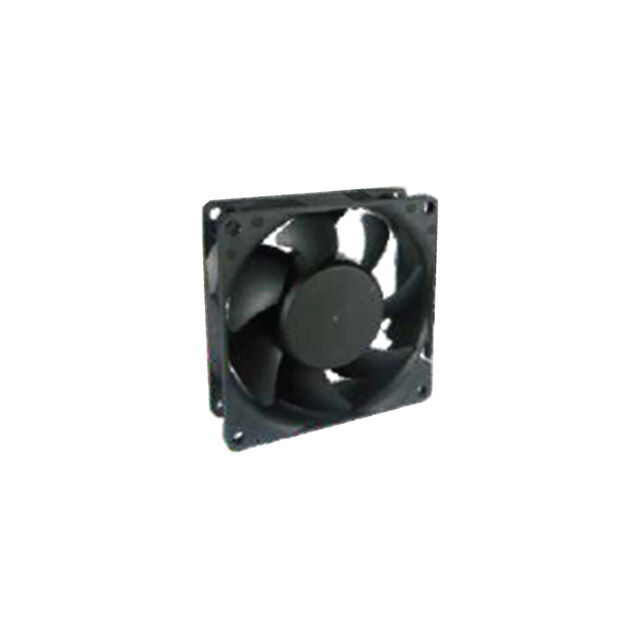

FAN AXIAL 80X25.4MM 12VDC WIRE
| Part | Material - Blade | Voltage Range (Min) | Voltage Range (Max) | Material - Frame | Lifetime | Current Rating | Power (Watts) | RPM | Width | Air Flow | Noise | Bearing Type | Size / Dimension Length | Size / Dimension Shape | Size / Dimension Height | Termination Leads Count | Termination Type | Termination | Voltage - Rated | Fan Type | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | PBT Polybutylene Terephthalate | 7 V | 13.2 VDC | Polybutylene Terephthalate (PBT) | 80000 Hrs | 0.26 A | 3.12 W | 4400 RPM | 1 in | 55.6 CFM | 43.5 dB | Ball | 80 mm | Square | 80 mm | 2 leads | Wire Leads | 2 Wire Leads | 12 VAC | Tubeaxial | 0.354 in H2O |
YS TECH USA | PBT Polybutylene Terephthalate | 7 V | 13.2 VDC | Polybutylene Terephthalate (PBT) | 65000 Hrs | 600 mA | 7.2 W | 6200 RPM | 1 in | 80 CFM | 53.5 dB | Ball | 80 mm | Square | 80 mm | 2 leads | Wire Leads | 2 Wire Leads | 12 VAC | Tubeaxial | 0.7 in H2O |
