90233 Series
Manufacturer: Preci-Dip
Beta
⌘K

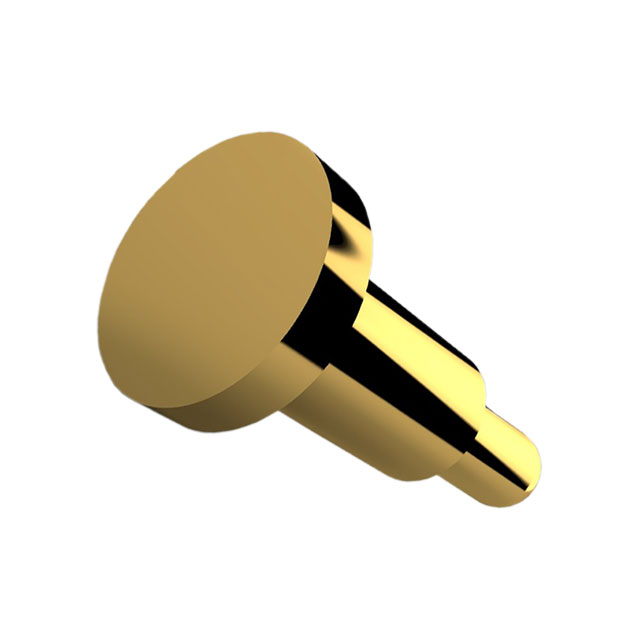

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Mid Compression | Contact Type | Mounting Type | Plunger Size [diameter] | Plunger Size [diameter] | Mating Cycles | Contact Material | Maximum Working Height [Max] | Maximum Working Height | Contact Finish | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 40.79 gf | Sleeve & Plunger (Pogo Pins) | Surface Mount | 0.042 in | 1.07 mm | 40000 | Brass Alloy | 0.236 in | 6 mm | Gold | 0.11 in | 2.8 mm | 2 A | 30 Áin | 0.76 Ám | 20.39 gf |
