DRA1-C Series

Catalog

SSR RELAY SPST-NO 5A 1-60V

Part	Load Current	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output Type	Termination Style	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	On-State Resistance (Max) [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Approval Agency
Sensata-Crydom DRA1-CMX60D5	5 A	80 °C	-20 ░C	DIN Rail	DC	Screw Terminal	Module	10 VDC	3 V	100 mOhm	60 V	1 V	CE cURus

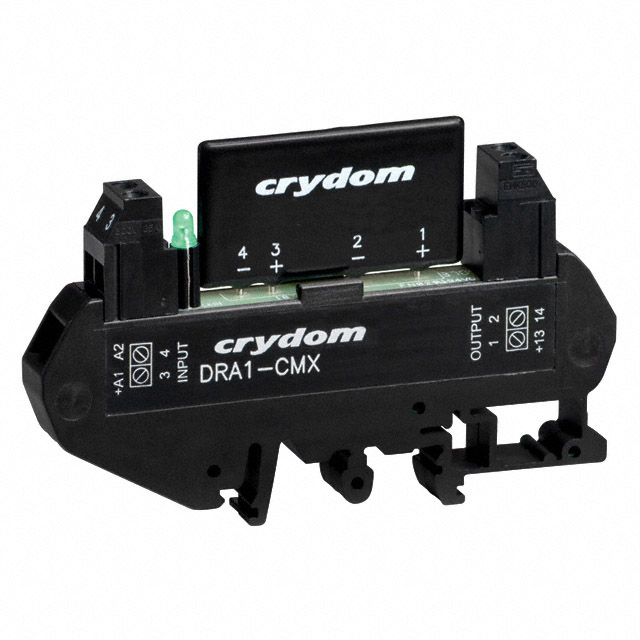

Sensata-Crydom DRA1-CMX100D10	8 A	80 °C	-20 ░C	DIN Rail	DC	Screw Terminal	Module	10 VDC	3 V	10 mOhms	100 V	1 V	CE cURus

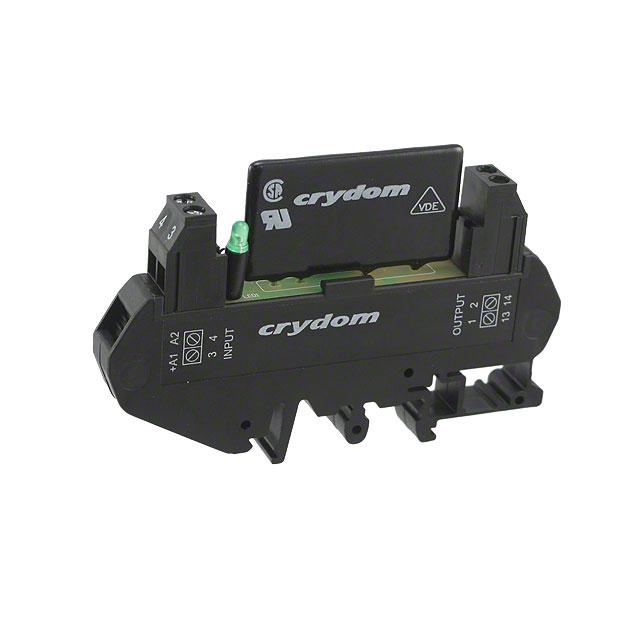

Sensata-Crydom DRA1-CMX60D10	8 A	80 °C	-20 ░C	DIN Rail	DC	Screw Terminal	Module	10 VDC	3 V	18 mOhms	60 V	1 V	CE cURus
Sensata-Crydom DRA1-CXE240D5	5 A	80 °C	-20 ░C	DIN Rail	AC Zero Cross	Screw Terminal	Module	32 VDC	15 V		280 V	12 V	CE cURus
Sensata-Crydom DRA1-CXE240D5R	5 A	80 °C	-20 ░C	DIN Rail	AC	Screw Terminal	Module	32 VDC	15 V		280 V	12 V	CE cURus
Sensata-Crydom DRA1-CX241R	5 A	80 °C	-20 ░C	DIN Rail	AC	Screw Terminal	Module	15 V	3 V				CE cURus
Sensata-Crydom DRA1-CMXE100D10	8 A	80 °C	-20 ░C	DIN Rail	DC	Screw Terminal	Module	28 V	20 V	10 mOhms	100 V	1 V	CE cURus
Sensata-Crydom DRA1-CMXE200D3	3 A	80 °C	-20 ░C	DIN Rail	DC	Screw Terminal	Module	28 V	20 V	0.2 Ohms	200 V	1 V	CE cURus
