SZSMF6.0AT1G Series

Zen TVS 200W 36V UNI SOD-123FL TR7

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Zen TVS 200W 36V UNI SOD-123FL TR7

Part	Package / Case	Unidirectional Channels [custom]	Supplier Device Package	Type	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp	Qualification	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Mounting Type	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000çs)

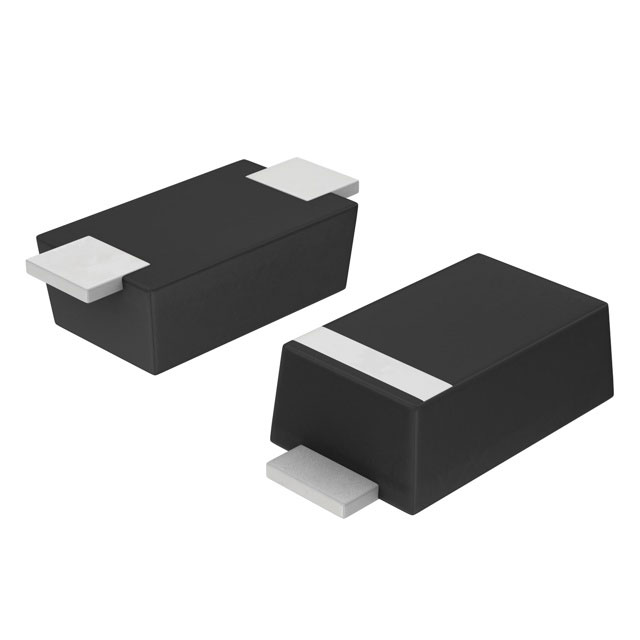

Littelfuse/Commercial Vehicle Products SZSMF33AT1G	SOD-123F	1	SOD-123F	Zener	200 W	53.3 V	AEC-Q101	36.7 V	3.8 A	33 V	Surface Mount	Automotive	-55 °C	150 °C
Littelfuse/Commercial Vehicle Products SZSMF12AT1G	SOD-123F	1	SOD-123F	Zener	200 W		AEC-Q101	13.3 V	10.1 A	12 V	Surface Mount	Automotive	-55 °C	150 °C	19.9 V
Littelfuse/Commercial Vehicle Products SZSMF6.0AT1G	SOD-123F	1	SOD-123FL	Zener	200 W		AEC-Q101	6.67 V	19.4 A	6 V	Surface Mount	Automotive	-55 °C	150 °C	10.3 V
Littelfuse/Commercial Vehicle Products SZSMF36AT1G	SOD-123F	1	SOD-123F	Zener	200 W		AEC-Q101	40 V	3.4 A	36 V	Surface Mount	Automotive	-55 °C	150 °C	58.1 V
Littelfuse/Commercial Vehicle Products SZSMF48AT1G	SOD-123F	1	SOD-123F	Zener	200 W		AEC-Q101	53.3 V	2.6 A	48 V	Surface Mount	Automotive	-55 °C	150 °C	77.4 V
Littelfuse/Commercial Vehicle Products SZSMF26AT1G	SOD-123F	1	SOD-123F	Zener	200 W		AEC-Q101	28.9 V	4.8 A	26 V	Surface Mount	Automotive	-55 °C	150 °C	42.1 V
Littelfuse/Commercial Vehicle Products SZSMF5.0AT1G	SOD-123F	1	SOD-123FL	Zener	200 W	9.2 V	AEC-Q101	6.4 V		5 V	Surface Mount	Automotive	-55 °C	150 °C		21.7 A
Littelfuse/Commercial Vehicle Products SZSMF13AT1G	SOD-123F	1	SOD-123FL	Zener	200 W		AEC-Q101	14.4 V	9.3 A	13 V	Surface Mount	Automotive	-55 °C	150 °C	21.5 V
Littelfuse/Commercial Vehicle Products SZSMF28AT1G	SOD-123F	1	SOD-123F	Zener	200 W		AEC-Q101	31.1 V	4.4 A	28 V	Surface Mount	Automotive	-55 °C	150 °C	45.4 V
Littelfuse/Commercial Vehicle Products SZSMF22AT1G	SOD-123F	1	SOD-123F	Zener	200 W	35.5 V	AEC-Q101			22 V	Surface Mount	Automotive	-55 °C	150 °C

Catalog

Zen TVS 200W 36V UNI SOD-123FL TR7

Key Features

• Zener Transient Overvoltage Suppressors

• Standoff Voltage Ratings Ranging from 5 V to 58 V

• Peak Power Ratings of 200 W at 1 Ams

• Low Leakage

• Response Time Is Typically Below 1 ns

• ESD Rating of Class 3 (>16 kV) per Human Body Model

• ESD Rating of Level 4 (8 kV Contact Discharge) per IEC 61000-4-2

• EFT (Electrical Fast Transients) Rating of 40 Aper IEC 61000-4-4

• Low Profile: Maximum Height of 1.0 mm

• Small Footprint: Footprint Area of 8.45 mm2

Description

The SZSMF series is designed to protect sensitive systems or components from high voltage, high energy transients. It offers a fast response time, low Zener impedance, high surge and excellent clamping capabilities. Because of its small size, it is ideal for use in cellular phones, portable devices, business machines, power supplies and other industrial and consumer applications.
