191-037 Series
Manufacturer: NorComp Inc.
Beta
⌘K

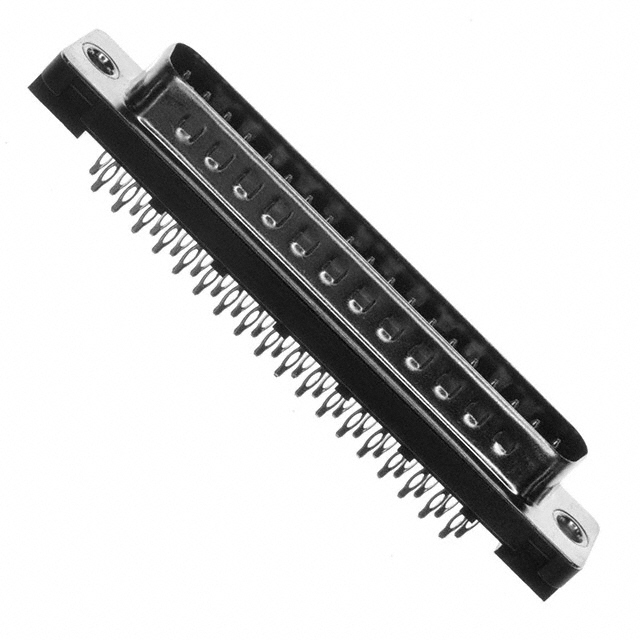

CONN D-SUB RCPT 37P PNL MNT SLDR
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Termination | Connector Type | Contact Finish | Contact Finish Thickness | Features | Number of Rows [custom] | Contact Type | Connector Style | Number of Positions | Material Flammability Rating | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout | Shell Material, Finish | Mounting Type | Current Rating (Amps) | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Phosphor Bronze | Black | Solder | Receptacle Female Sockets | Gold | Flash | Board Lock | 2 | Signal | D-Sub | 37 | UL94 V-0 | 4-40 Mating Side Female Screwlock | 4 | DC C | Nickel Plated Steel | Panel Mount Through Hole | 5 A | |
NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Phosphor Bronze | Black | Solder | Receptacle Female Sockets | Gold | Flash | Board Lock Shielded | 2 | Signal | D-Sub | 37 | UL94 V-0 | Housing/Shell | 4 | DC C | Nickel Plated Steel | Panel Mount Through Hole | 5 A | 4-40 |
 NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Brass | Black | Press-Fit | Plug Male Pins | Gold | Flash | Grounding Indents Shielded | 2 | Signal | D-Sub | 37 | UL94 V-0 | Housing/Shell (Unthreaded) | 4 | DC C | Nickel Plated Steel | Panel Mount | 5 A | |
NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Brass | Black | Solder | Plug Male Pins | Gold | Flash | Grounding Indents Shielded | 2 | Signal | D-Sub | 37 | UL94 V-0 | Housing/Shell | 4 | DC C | Nickel Plated Steel | Panel Mount Through Hole | 5 A | 4-40 |
NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Brass | Black | Solder | Plug Male Pins | Gold | Flash | Grounding Indents Shielded | 2 | Signal | D-Sub | 37 | UL94 V-0 | 4-40 Mating Side Female Screwlock | 4 | DC C | Nickel Plated Steel | Panel Mount Through Hole | 5 A | |
NorComp Inc. | Polyester Thermoplastic | -55 C | 125 °C | Brass | Black | Solder | Plug Male Pins | Gold | Flash | Grounding Indents | 2 | Signal | D-Sub | 37 | UL94 V-0 | Housing/Shell | 4 | DC C | Nickel Plated Steel | Panel Mount Through Hole | 5 A | 4-40 |
