TR060 Series

Catalog

TEM TRITON ICE 40.13X40.13X3.9MM

Part	Delta Tmax @ Th	Voltage - Max [Max]	Type	Current - Max [Max]	Features	Resistance	Qmax @ Th	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Stages

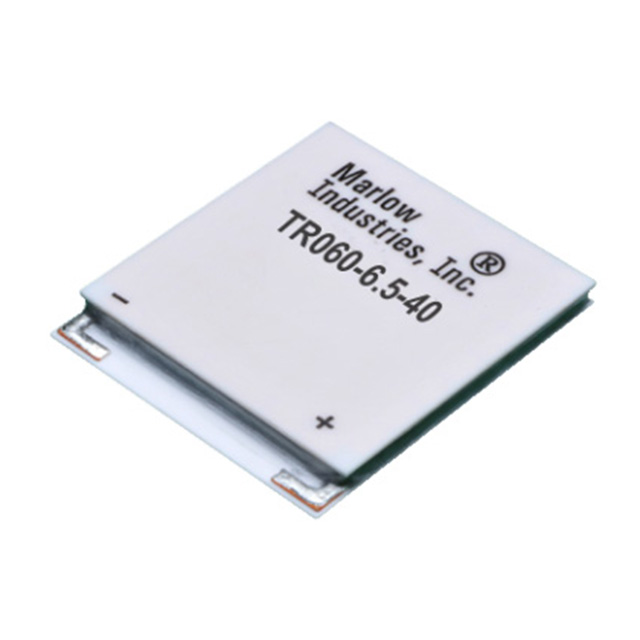

Marlow Industries, Inc. TR060-6.5-40-01LS	76 °C	15.8 V	TEC (Thermoelectric Cooler)	6.5 A	Lapped Lead Wires Sealed	2.1 Ohms	61 W	3.91 mm	40.13 mm	44.7 mm	1
Marlow Industries, Inc. TR060-6.5-40-01S	76 °C	15.8 V	TEC (Thermoelectric Cooler)	6.5 A	Lead Wires Sealed	2.1 Ohms	61 W	4.04 mm	40.13 mm	44.7 mm	1
Marlow Industries, Inc. TR060-6.5-40-01L	76 °C	15.8 V	TEC (Thermoelectric Cooler)	6.5 A	Lapped Lead Wires	2.1 Ohms	61 W	3.91 mm	40.13 mm	44.7 mm	1

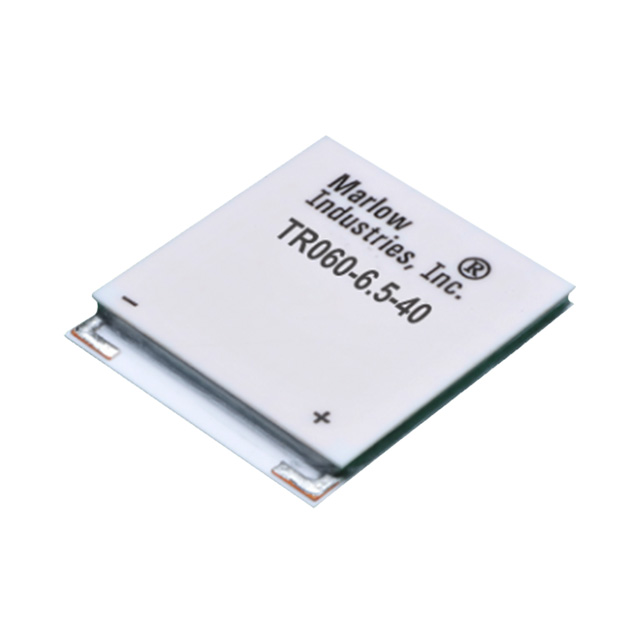

Marlow Industries, Inc. TR060-6.5-40-03LS	76 °C	15.8 V	TEC (Thermoelectric Cooler)	6.5 A	Lapped Lead Wires Sealed	2.1 Ohms	61 W	3.91 mm	40.13 mm	44.7 mm	1
