LM3017 Series
Manufacturer: Texas Instruments
Beta
⌘K

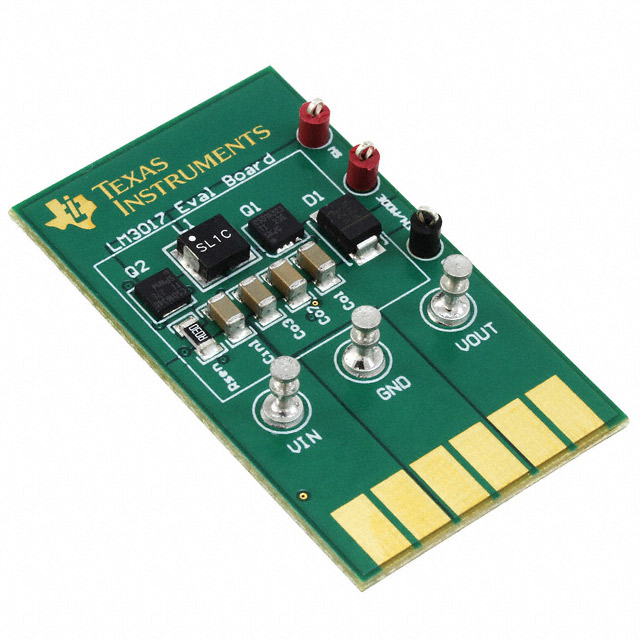

EVAL BOARD FOR LM3017
| Part | Main Purpose | Outputs and Type | Outputs and Type | Current - Output | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Board Type | Frequency - Switching | Regulator Topology | Utilized IC / Part | Supplied Contents | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Number of Outputs | Function | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Output Phases | Output Type | Topology | Synchronous Rectifier | Mounting Type | Control Features | Clock Sync | Duty Cycle (Max) [Max] | Output Configuration | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | DC/DC Step Up | Non-Isolated | 1 | 1 A | 15 VDC | 12 V | 8 V | Fully Populated | 600 kHz | Boost | LM3017 | Board(s) | |||||||||||||||||

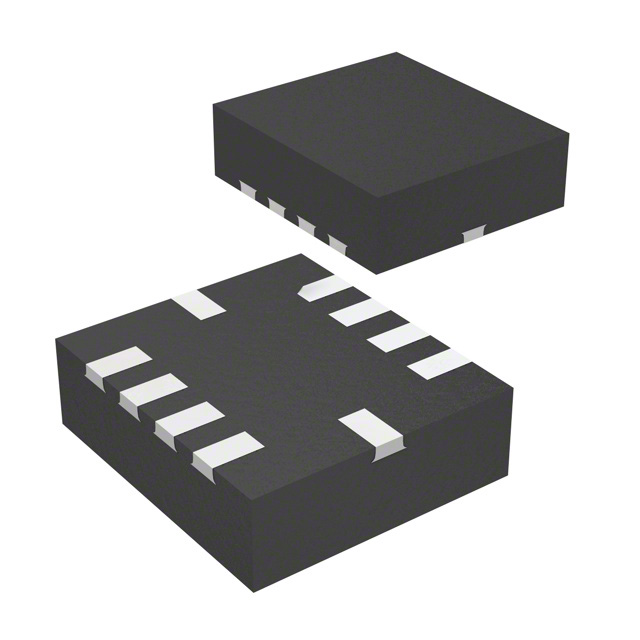

 Texas Instruments | 600 kHz | 18 V | 5.4 V | 1 | Step-Up | 10-WFQFN | -40 °C | 125 ¯C | 1 | Transistor Driver | Boost | Surface Mount | Enable | 86 % | Positive | 10-WQFN (2.4x2.7) | |||||||||||||
 Texas Instruments | 600 kHz | 18 V | 5.4 V | 1 | Step-Up | 10-WFQFN | -40 °C | 125 ¯C | 1 | Transistor Driver | Boost | Surface Mount | Enable | 86 % | Positive | 10-WQFN (2.4x2.7) |
