MLW Series

Catalog

ROCKER SWITCHES SNAP-IN MINIATURE ROCKER

Part	Termination Style	Mounting Type	Voltage Rating - DC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC	Switch Function	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Actuator Marking	Approval Agency	Color - Actuator/Cap	Electrical Life	Mechanical Life	Illumination Voltage (Nominal)	Features	Illumination Type, Color
NKK Switches MLW3013-00-RB-1B	Solder Lug	Panel Mount Snap-In	30 V	16.7 mm	18.7 mm	125 V	On-Off-On	Concave (Curved)	50 °C	-10 °C	SPDT	3 A 5 A	No Marking	UL	White

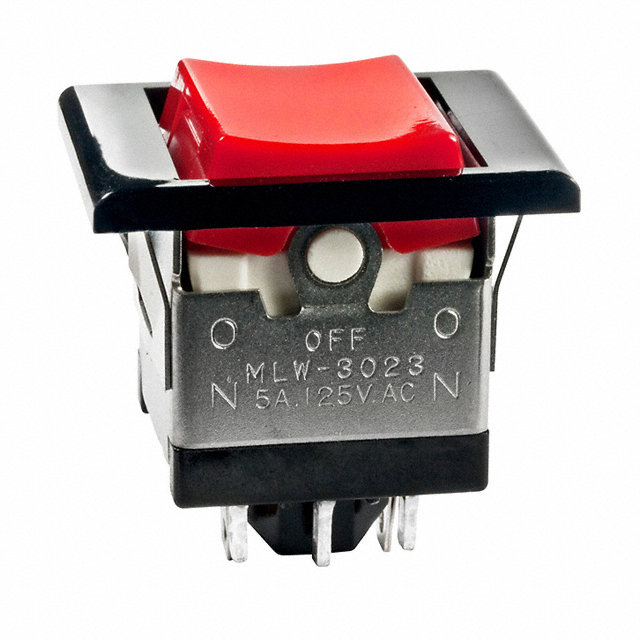

NKK Switches MLW3023-C-LC-1A	Solder Lug	Panel Mount Snap-In	30 V	16.7 mm	18.7 mm	125 V	On-Off-On	Concave (Curved) - Illuminated	50 °C	-10 °C	DPDT	3 A 5 A	No Marking	UL	Red	10000 Cycles	30000 Steps	1.85 VDC	Epoxy Sealed Terminals	LED Red
NKK Switches MLW3020-E-SE-1A	Solder Lug	Panel Mount Snap-In	30 V	16.7 mm	18.7 mm	125 V	On-On-On	Sculptured - Illuminated	50 °C	-10 °C	SP3T	3 A 5 A	No Marking	UL	Yellow			2 VDC	Jumper needed to achieve triple throw	LED Yellow
