29K101 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN MCX JACK STR 50OHM SMD
| Part | Includes | Body Finish | Dielectric Material | Mating Cycles | Body Material | Voltage Rating | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Impedance | Shield Termination | Contact Termination | Housing Color | Frequency - Max [Max] | Number of Ports | Fastening Type | Connector Style | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

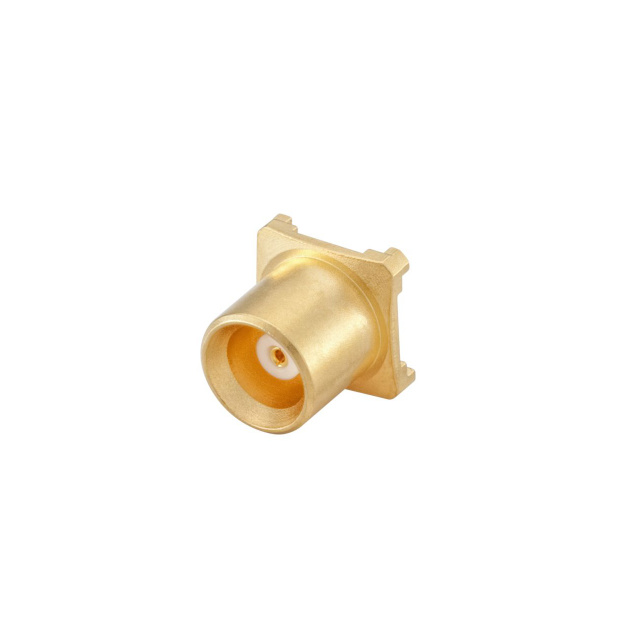

 Rosenberger | 1 Cap 1 Connector | Gold | Polytetrafluoroethylene (PTFE) | 500 | Brass | 335 V | Gold | 155 C | -55 C | Beryllium Copper | 50 Ohms | Solder | Solder | Gold | 6000 MHz | 1 | Snap-On | MCX | Surface Mount | Female Socket Jack |

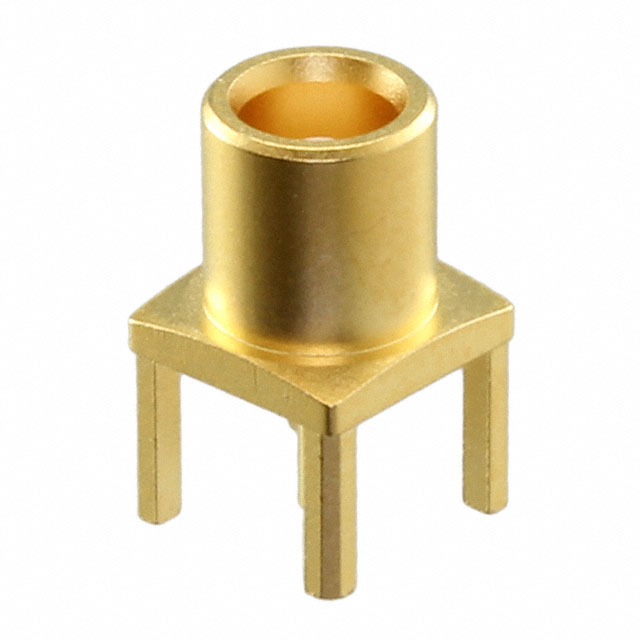

 Rosenberger | Gold | Polytetrafluoroethylene (PTFE) | 500 | Brass | 335 V | Gold | 155 C | -55 C | Beryllium Copper | 50 Ohms | Solder | Solder | Gold | 6000 MHz | 1 | Snap-On | MCX | Through Hole | Female Socket Jack |
