048146 Series
Manufacturer: Molex
Beta
⌘K

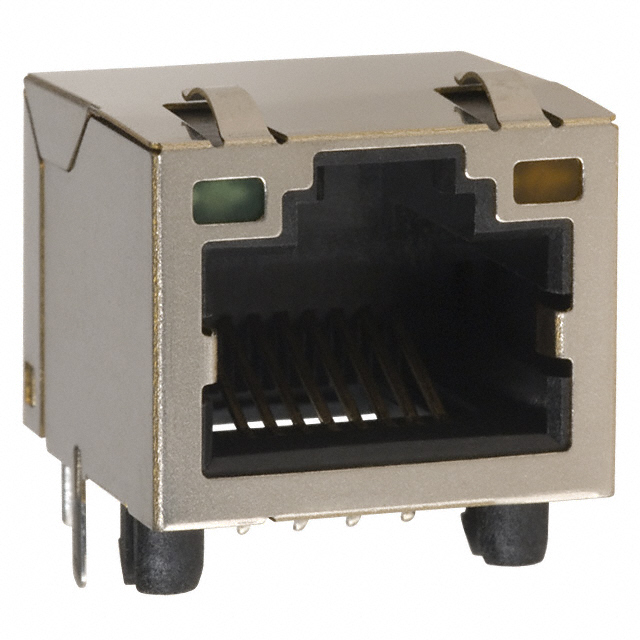

CONN MOD JACK 8P8C R/A SHIELDED
| Part | Number of Ports | LED Color | Contact Finish | Contact Material | Shielding | Orientation | Termination | Housing Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Tab Direction | Number of Positions/Contacts | Number of Rows | Mounting Type | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 1 | Amber Green | Gold | Phosphor Bronze | Shielded EMI Finger | 90 ° | Solder | Thermoplastic | Jack | 85 °C | -40 °C | 50 µin | 1.27 µm | Up | 8p8c (RJ45 Ethernet) | 1 | Through Hole | Cat5 |
Molex | 1 | Green - Green | Gold | Phosphor Bronze | Shielded EMI Finger | 90 ° | Solder | Thermoplastic | Jack | 85 °C | -40 °C | 50 µin | 1.27 µm | Up | 8p8c (RJ45 Ethernet) | 1 | Through Hole | Cat5 |
Molex | 1 | Amber Green | Gold | Phosphor Bronze | Shielded EMI Finger | 90 ° | Solder | Thermoplastic | Jack | 85 °C | -40 °C | 50 µin | 1.27 µm | Up | 8p8c (RJ45 Ethernet) | 1 | Through Hole | Cat5 |
