CCL-LX45 Series
Manufacturer: Lumex Opto/Components Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
LED RED CLEAR SMD
| Part | Lens Style | Size / Dimension Width | Size / Dimension Length | Viewing Angle | Current - Test | Lens Color | Configuration | Wavelength - Peak | Color | Millicandela Rating | Package / Case | Height (Max) | Package Name | Voltage - Forward (Vf) (Typ) | Lens Transparency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

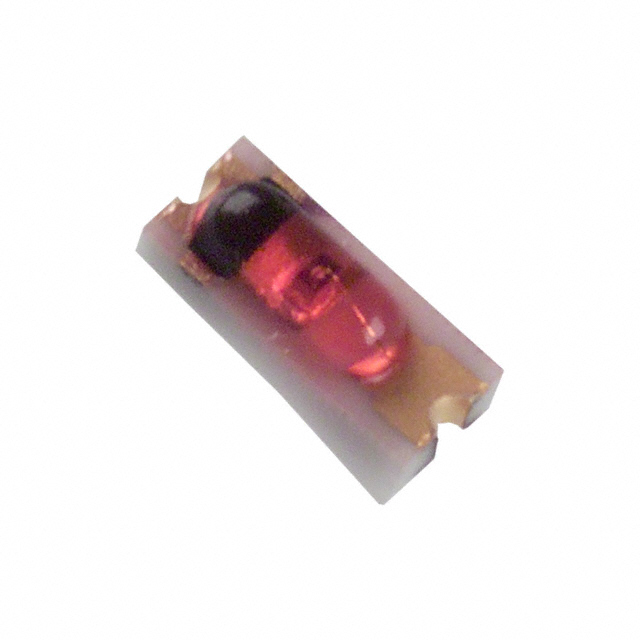

 Lumex Opto/Components Inc. | Domed Top Oval | 0.05 in | 3.2 mm | 180 ° | 20 mA | Red | Standard | 635 nm | Red | 7.2 mcd | 2-SMD No Lead | 1.2 mm | SMD | 2.1 V | Clear | Surface Mount |
Lumex Opto/Components Inc. | Domed Top Oval | 0.05 in | 3.2 mm | 180 ° | 20 mA | Green | Standard | 565 nm | Green | 7 mcd | 2-SMD No Lead | 1.2 mm | SMD | 2.2 V | Clear | Surface Mount |

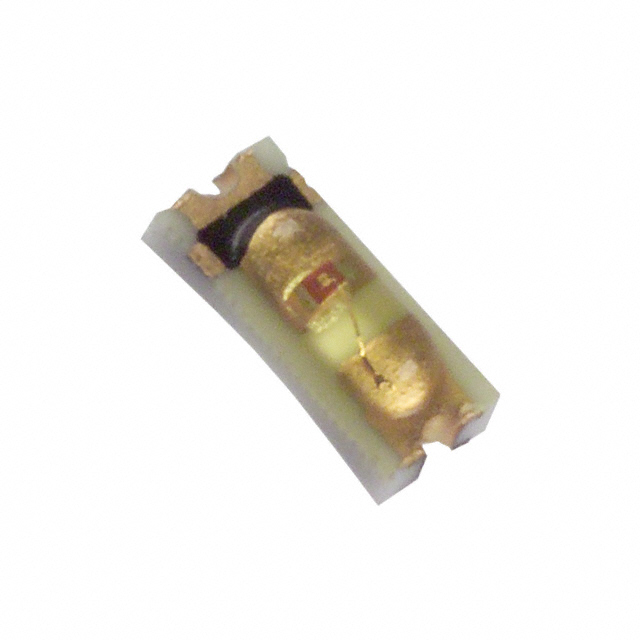

Lumex Opto/Components Inc. | Domed Top Oval | 0.05 in | 3.2 mm | 180 ° | 20 mA | Yellow | Standard | 585 nm | Yellow | 7 mcd | 2-SMD No Lead | 1.2 mm | SMD | 2.3 V | Clear | Surface Mount |

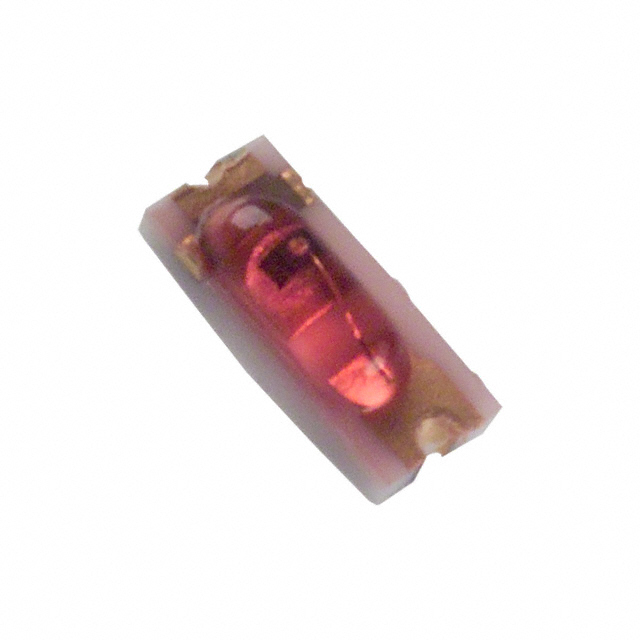

Lumex Opto/Components Inc. | Domed Top Oval | 0.05 in | 3.2 mm | 180 ° | 20 mA | Red | Standard | 660 nm | Red | 8 mcd | 2-SMD No Lead | 1.2 mm | SMD | 1.8 V | Clear | Surface Mount |
