6252-0 Series

Catalog

PIN PRESS-FIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Contact Material	Length - Overall [x]	Length - Overall [x]

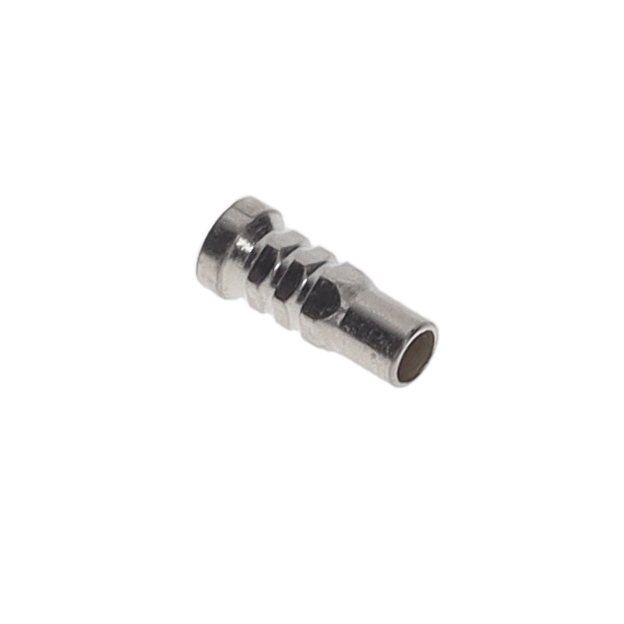

Mill-Max Manufacturing Corp. 6252-0-15-01-32-27-10-0	-55 C	125 °C	0.072 "	1.83 mm	Gold	2.54 mm	0.1 in	1.45 mm	0.057 in	Hex Press-Fit	30 Áin	0.76 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	Beryllium Copper	0.17 in	4.32 mm
Mill-Max Manufacturing Corp. 6252-0-15-01-32-14-10-0	-55 C	125 °C	0.072 "	1.83 mm	Gold	2.54 mm	0.1 in	1.45 mm	0.057 in	Hex Press-Fit	10 Áin	0.25 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	Beryllium Copper	0.17 in	4.32 mm
Mill-Max Manufacturing Corp. 6252-0-15-15-38-27-10-0	-55 C	125 °C	0.072 "	1.83 mm	Gold			1.45 mm	0.057 in	Hex Press-Fit	30 Áin	0.76 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	Beryllium Copper	0.17 in	4.32 mm

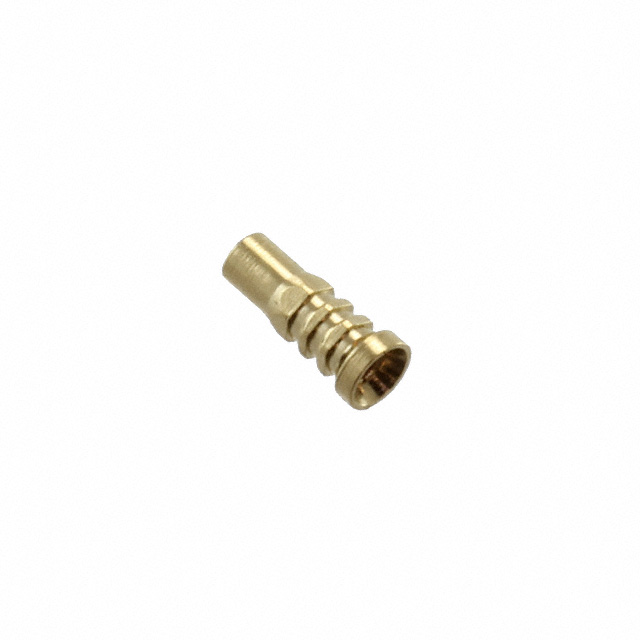

Mill-Max Manufacturing Corp. 6252-0-15-15-32-27-10-0	-55 C	125 °C	0.072 "	1.83 mm	Gold	2.54 mm	0.1 in	1.45 mm	0.057 in	Hex Press-Fit	30 Áin	0.76 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	Beryllium Copper	0.17 in	4.32 mm

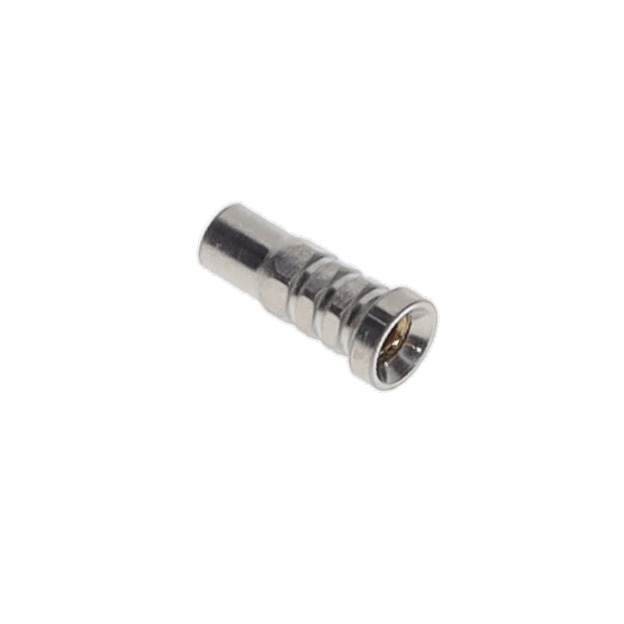

Mill-Max Manufacturing Corp. 6252-0-15-80-32-27-10-0	-55 C	125 °C	0.072 "	1.83 mm	Gold	2.54 mm	0.1 in	1.45 mm	0.057 in	Hex Press-Fit	30 Áin	0.76 Ám	0.64 mm	0.015 "	0.025 in	0.38 mm	No Tail	Beryllium Copper	0.17 in	4.32 mm
