AMPMODU MOD II Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

HEADERS & WIRE HOUSINGS 18P MOD2 STIFTLEIS

...

Part	Contact Finish - Post (Mating)	Number of Positions	Length - Stack Height	Length - Stack Height	Number of Rows	Length - Tail	Length - Tail	Pitch	Pitch	Color	Contact Finish Thickness - Post (Mating) [custom]	Contact Finish Thickness - Post (Mating) [custom]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Tail [x]	Number of Rows [custom]	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing	Row Spacing	Insulation Color	Style	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Insulation Material	Contact Type	Pitch - Mating	Pitch - Mating	Fastening Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Insulation Height	Insulation Height	Shrouding	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Shape	Current Rating (Amps)	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [custom]	Length - Post (Mating)	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Features	Length - Stack Height [custom]	Length - Stack Height [custom]
TE Connectivity AMP Connectors 1-966771-8	Gold	18	0.22 in	5.6 mm	1	8.2 mm	0.323 in	0.1 "	2.54 mm	Green	0.8 µm	31.5 µin	0.323 "	8.2 mm	Solder	Through Hole	0.866 in	22 mm
TE Connectivity AMP Connectors 5-146500-5	Gold	10				2.54 mm		0.1 "	2.54 mm	Black	0.38 Ám	15 Áin	0.33 in	8.382 mm	Solder	Through Hole	1.13 in	28.7 mm	0.1 in	2	17.78 mm	0.7 in	2.54 mm	0.1 "
TE Connectivity AMP Connectors 5-146466-9	Gold	9	0.5 in	12.7 mm	1	8.382 mm	0.33 in	0.1 "	2.54 mm	Black	0.38 Ám	15 Áin	0.1 "	2.54 mm	Solder	Through Hole	0.93 in	23.622 mm
TE Connectivity AMP Connectors 6-146459-2	Tin	12			1	2.8 mm	0.11 in	0.1 "	2.54 mm	Black	2.54 Ám	100 Áin	0.107 in	2.718 mm	Solder	Through Hole	0.617 in	15.672 mm			10.16 mm	0.4 in
TE Connectivity AMP Connectors 102690-6		80													Press-Fit Solder	Through Hole				2					Black	Board to Board Cable	Gold	0.76 Ám	30 Áin	Copper Alloy	Thermoplastic	Male Pin	0.1 "	2.54 mm	Push-Pull	UL94 V-0	0.32 in	8.13 mm	0.1 in	2.54 mm	250 VAC	0.55 in	13.97 mm	Shrouded - 4 Wall	Tin-Lead	105 ░C	-65 ░C	All	Square	3 A	Header	6.35 mm	0.25 in

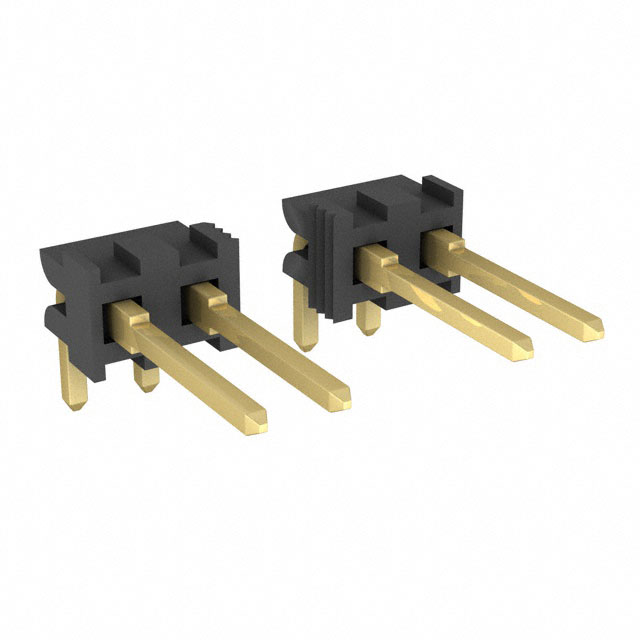

TE Connectivity AMP Connectors 87232-9		9			1										Solder	Right Angle Through Hole									Black	Board to Board Cable	Gold	0.76 Ám	30 Áin	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	Male Pin	0.1 "	2.54 mm	Push-Pull	UL94 V-0	0.318 in	8.08 mm						Unshrouded	Gold	105 ░C	-65 ░C	All	Square	3 A	Header	2.79 mm		Flash	3.5 mm	0.138 "	0.11 in
TE Connectivity AMP Connectors 6-146458-1	Tin	11			1	2.8 mm	0.11 in	0.1 "	2.54 mm	Black	2.54 Ám	100 Áin	0.123 in		Solder	Through Hole	0.533 in	13.538 mm			7.62 mm	0.3 in																																				3.124 mm

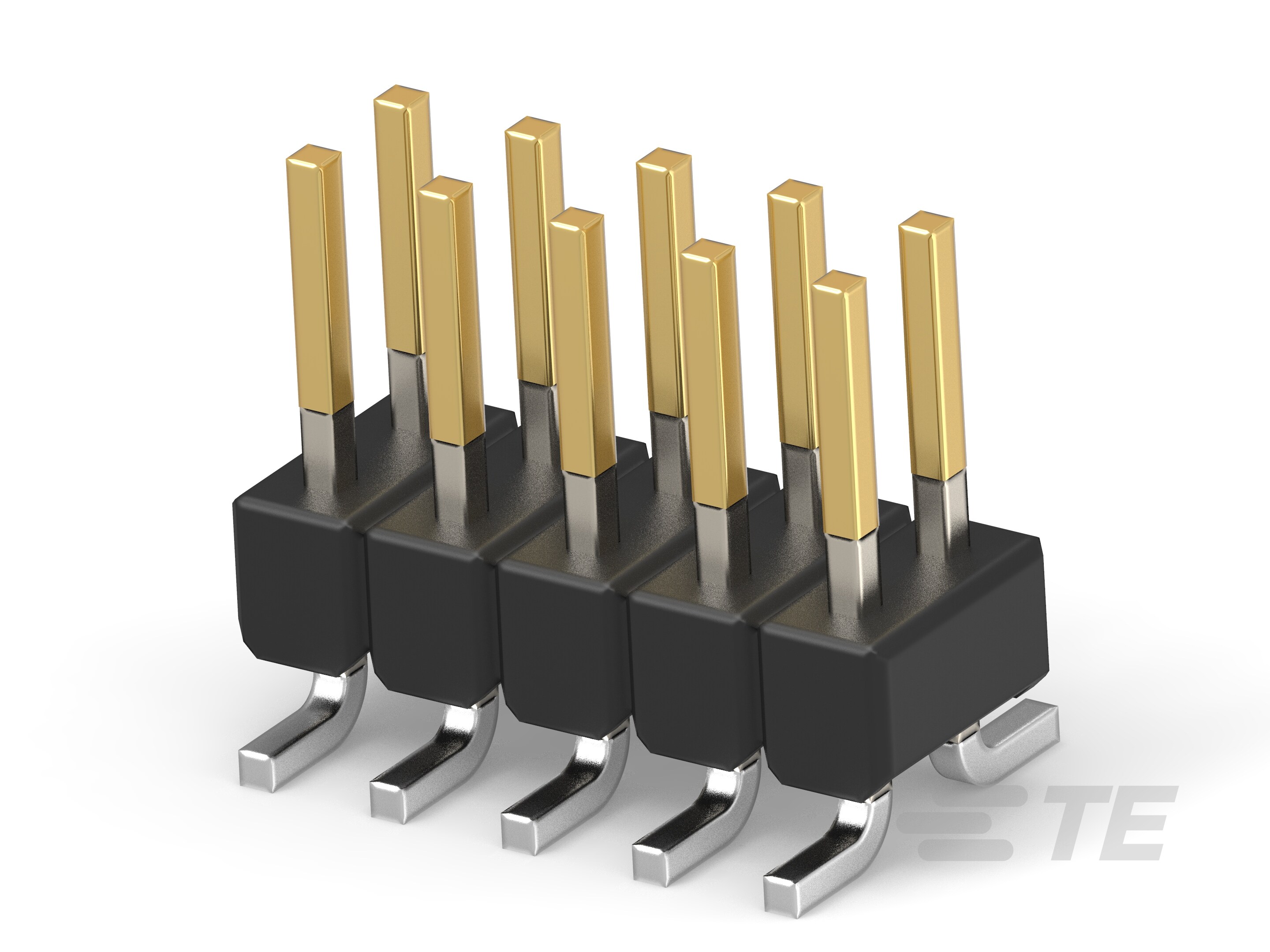

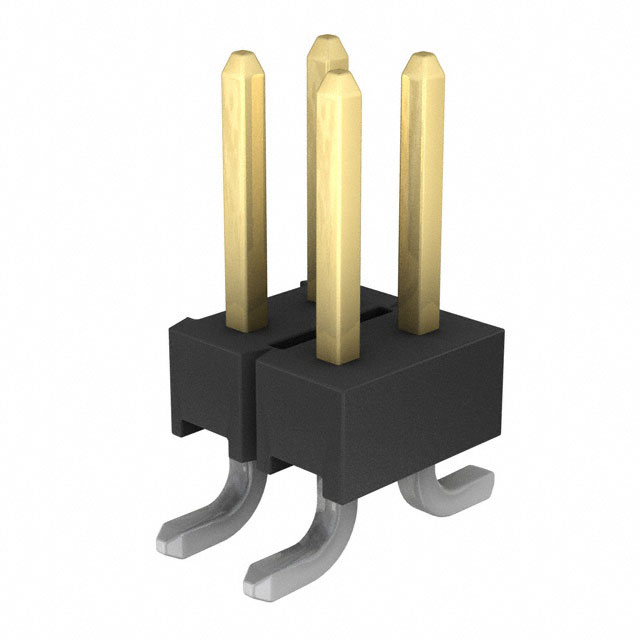

TE Connectivity AMP Connectors 966709-5		10													Solder	Surface Mount				2					Black	Board to Board Cable	Gold	0.099 µm	3.9 µin	Phosphor Bronze	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Male Pin	0.1 "	2.54 mm	Push-Pull		0.228 in	5.8 mm	0.1 in	2.54 mm				Unshrouded	Tin	105 ░C	-65 ░C	All	Square	5 A	Header Breakaway								118.1 µin	3 µm
TE Connectivity AMP Connectors 5-147447-5		10													Solder	Surface Mount				2					Black	Board to Board Cable	Gold	0.76 Ám	30 Áin	Copper Alloy	Liquid Crystal Polymer (LCP)	Male Pin	0.1 "	2.54 mm	Push-Pull	UL94 V-0	0.32 in	8.13 mm	0.1 in	2.54 mm	30 VAC			Unshrouded	Tin	105 ░C	-65 ░C	All	Square		Header Breakaway				2.29 mm	0.09 in					Pick and Place
TE Connectivity AMP Connectors 7-146456-0	Tin	20			1	2.8 mm	0.11 in	0.1 "	2.54 mm	Black	2.54 Ám	100 Áin	0.08 "	2.032 mm	Solder	Through Hole	0.44 in	11.176 mm																																												6.35 mm	0.25 in
