SA23-11 Series

Catalog

DISPLAY 7SEG 2.24" SGL RED 10DIP

Part	Current - Test	Package / Case	Package / Case	Package / Case	Power Dissipation (Max)	Wavelength - Peak	Common Pin	Millicandela Rating	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Display Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Color	Power Dissipation (Max) [Max]
Kingbright SA23-11SRWA	20 mA	2.37 in	60.1 mm	10-DIP	300 mW	660 nm	Common Anode	190 mcd	2.24 in	56.9 mm	1	7-Segment	12 mm	70 mm	0.472 "	2.756 "	1.89 in	48 mm	7.4 V	Red
Kingbright SA23-11YWA	20 mA			20-DIP (2.370 in 60.10mm)	300 mW	590 nm	Common Anode	40 mcd	2.24 in	56.9 mm	1	7-Segment	12 mm	70 mm	0.472 "	2.756 "	1.89 in	48 mm	8.4 V	Yellow
Kingbright SA23-11EWA	20 mA			20-DIP (2.370 in 60.10mm)	300 mW	627 nm	Common Anode	57 mcd	2.24 in	56.9 mm	1	7-Segment	12 mm	70 mm	0.472 "	2.756 "	1.89 in	48 mm	8 V	Red

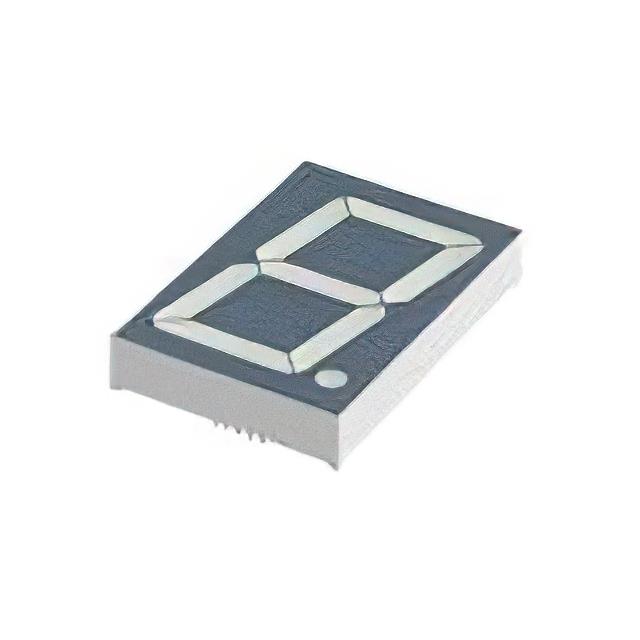

Kingbright SA23-11SURKWA	10 mA	2.366 in	60.1 mm	10-DIP		645 nm	Common Anode	440 mcd	2.24 in	56.9 mm	1	7-Segment	12.25 mm	70 mm	0.482 in	2.756 "	1.89 in	48 mm	3.7 V 7.4 V	Red	75 mw

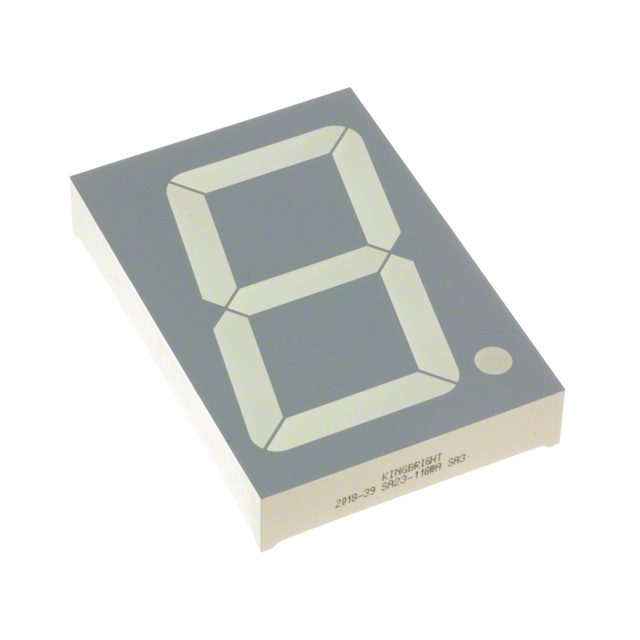

Kingbright SA23-11GWA	20 mA	2.37 in	60.1 mm	10-DIP		565 nm	Common Anode	65 mcd	2.24 in	56.9 mm	1	7-Segment	12 mm	70 mm	0.472 "	2.756 "	1.89 in	48 mm	8.8 V	Green	250 mW
