005125 Series

Manufacturer: Molex

Catalog

CONN D-SUB SOCKET 28-36AWG PCB

Part	Contact Type	Termination Finish	Wire Gauge [Min]	Wire Gauge [Max]	Contact Form	Contact Termination	Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Contact Material	Termination Finish Thickness	Termination Finish Thickness	Dielectric Material	Voltage Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Number of Positions	Material Flammability Rating	Termination	Shell Material, Finish	Connector Type

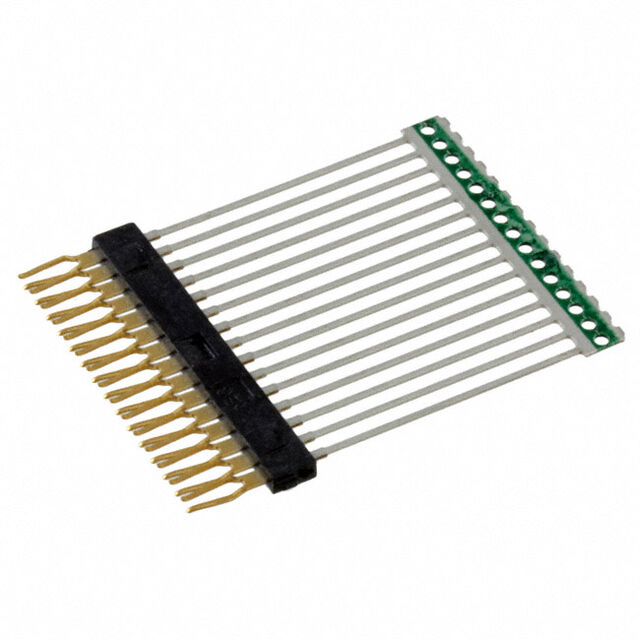

Molex 0051252011	Female Socket	Tin	27.5 AWG	36 AWG	Stamped	PCB Solder	Signal	30 Áin	0.76 Ám	Gold	Matrix Terminal Strip	Copper Alloy
Molex 0051251007	Male Pin	Tin	26 AWG	36 AWG	Stamped	Solder	Signal	30 Áin	0.76 Ám	Gold	Matrix Terminal Strip	Phosphor Bronze	100 µin	2.54 µm
Molex 0051251030	Signal							30 Áin	0.76 Ám	Gold	Grounding Indents Shielded	Phosphor Bronze			Liquid Crystal Polymer (LCP) Glass Filled	40 V	Black	80 °C	-20 ░C	Panel Mount Through Hole	Board to Board D-Type Matrix	0.05	0.05	Housing/Shell (M3)	160	UL94 V-0	Solder	Nickel Plated Steel	Plug Male Pins

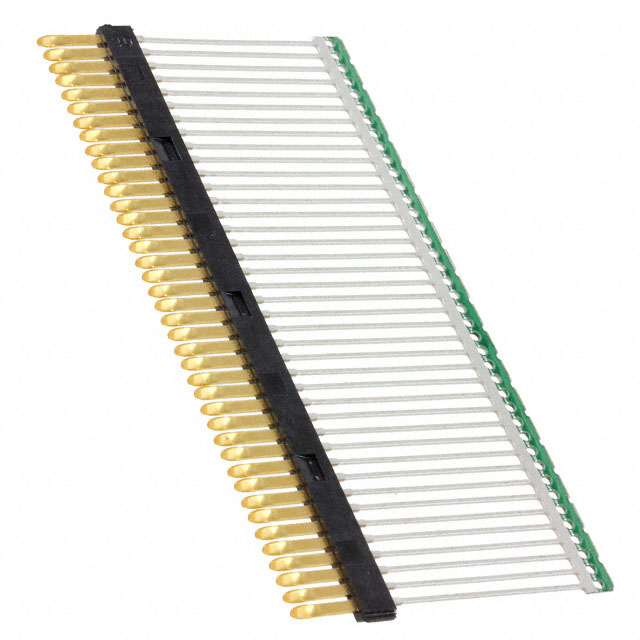

Molex 0051251020	Male Pin	Tin	27.5 AWG	36 AWG	Stamped	PCB Solder	Signal	30 Áin	0.76 Ám	Gold	Matrix Terminal Strip	Phosphor Bronze	100 µin	2.54 µm
Molex 0051251032	Signal							30 Áin	0.76 Ám	Gold	Grounding Indents Shielded	Phosphor Bronze			Liquid Crystal Polymer (LCP) Glass Filled	40 V	Black	80 °C	-20 ░C	Panel Mount Through Hole	Board to Board D-Type Matrix	0.05	0.05	Housing/Shell (Unthreaded)	160	UL94 V-0	Solder	Nickel Plated Steel	Plug Male Pins
Molex 0051252014	Female Socket	Tin	27.5 AWG	36 AWG	Stamped	PCB Solder	Signal	30 Áin	0.76 Ám	Gold	Matrix Terminal Strip	Copper Alloy

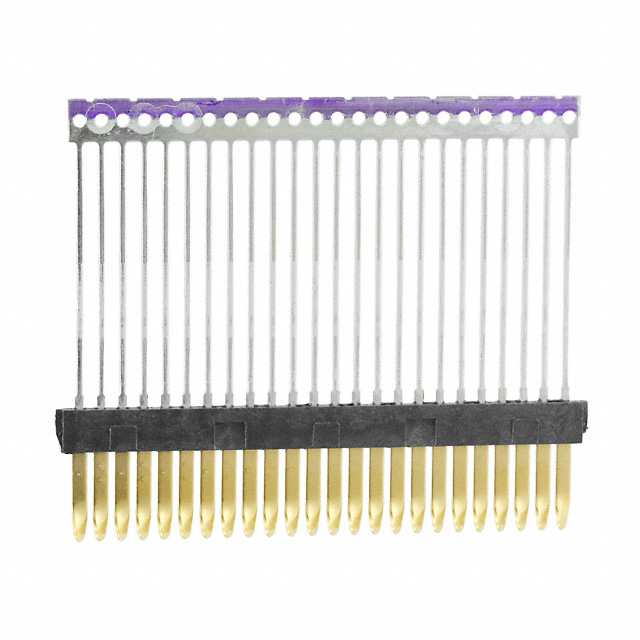

Molex 0051251005	Male Pin	Tin			Stamped	PCB Solder	Signal	30 Áin	0.76 Ám	Gold	Matrix Terminal Strip	Phosphor Bronze

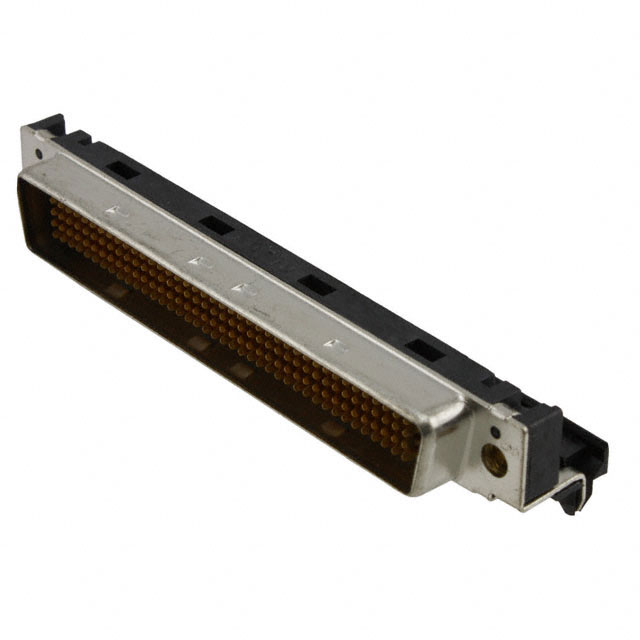

Molex 0051251040	Signal							30 Áin	0.76 Ám	Gold	Board Lock Grounding Indents Shielded	Phosphor Bronze			Liquid Crystal Polymer (LCP) Glass Filled	40 V	Black	80 °C	-20 ░C	Panel Mount Right Angle Through Hole	Board to Board D-Type Matrix	0.05	0.05	Housing/Shell (M3)	160	UL94 V-0	Solder		Plug Male Pins
