D25S24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

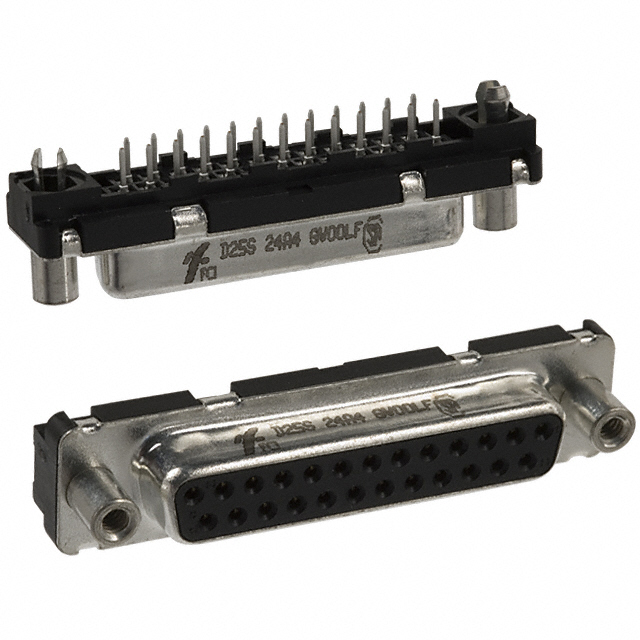

DSUB STR STB 25 SOCKET
| Part | Contact Material | Mounting Type | Number of Rows | Flange Feature | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Termination | Material Flammability Rating | Connector Style | Color | Contact Finish Thickness | Voltage Rating | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Features | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Phosphor Bronze | Through Hole | 2 | Housing/Shell (M3) | Receptacle Female Sockets | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | B DB | 3 | 5 A | Solder | UL94 V-0 | D-Sub | Black | Flash | 300 VDC | Gold | ||||
Amphenol ICC (FCI) | Phosphor Bronze | Through Hole | 2 | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | B DB | 3 | 5 A | Solder | UL94 V-0 | D-Sub | Black | 300 VDC | Gold | 0.76 Ám | 30 Áin | |||
Amphenol ICC (FCI) | Phosphor Bronze | Through Hole | 2 | Housing/Shell (4-40) | Receptacle Female Sockets | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | B DB | 3 | 5 A | Solder | UL94 V-0 | D-Sub | Black | 300 VDC | Gold | 0.76 Ám | 30 Áin | |||
Amphenol ICC (FCI) | Phosphor Bronze | Through Hole | 2 | Housing/Shell (Unthreaded) | Receptacle Female Sockets | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | B DB | 3 | 5 A | Solder | UL94 V-0 | D-Sub | Black | Flash | 300 VDC | Gold | ||||
Amphenol ICC (FCI) | Copper Alloy | Through Hole | 2 | Housing/Shell (4-40) | Receptacle Female Sockets | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) Glass Filled | Signal | B DB | 3 | 5 A | Solder Paste | UL94 V-0 | D-Sub | Black | 300 VDC | Gold | Board Guide | Nickel Plated Steel | |||
Amphenol ICC (FCI) | Phosphor Bronze | Through Hole | 2 | Housing/Shell (M3) | Receptacle Female Sockets | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | B DB | 3 | 5 A | Solder | UL94 V-0 | D-Sub | Black | 300 VDC | Gold | 0.76 Ám | 30 Áin | |||
Amphenol ICC (FCI) | Brass | Through Hole | 2 | Housing/Shell (4-40) | Receptacle Female Sockets | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) Glass Filled | Signal | B DB | 3 | 5 A | Solder Paste | UL94 V-0 | D-Sub | Black | 300 VDC | Gold | Board Guide | Nickel Plated Steel | |||
Amphenol ICC (FCI) | Brass | Through Hole | 2 | Housing/Shell (M3) | Receptacle Female Sockets | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) Glass Filled | Signal | B DB | 3 | 5 A | Solder Paste | UL94 V-0 | D-Sub | Black | 300 VDC | Gold | Nickel Plated Steel | ||||
 Amphenol ICC (FCI) | Phosphor Bronze | Through Hole | 2 | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | -55 °C | 125 °C | Polybutylene Terephthalate (PBT) | Signal | B DB | 3 | 5 A | Solder | UL94 V-0 | D-Sub | Black | Flash | 300 VDC | Gold | Steel Tin-Nickel Plated | |||
Amphenol ICC (FCI) | Copper Alloy | Through Hole | 2 | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) Glass Filled | Signal | B DB | 3 | 5 A | Solder Paste | UL94 V-0 | D-Sub | Black | 300 VDC | Gold | Board Guide | Nickel Plated Steel |
