90158 Series
Manufacturer: Preci-Dip
Beta
⌘K

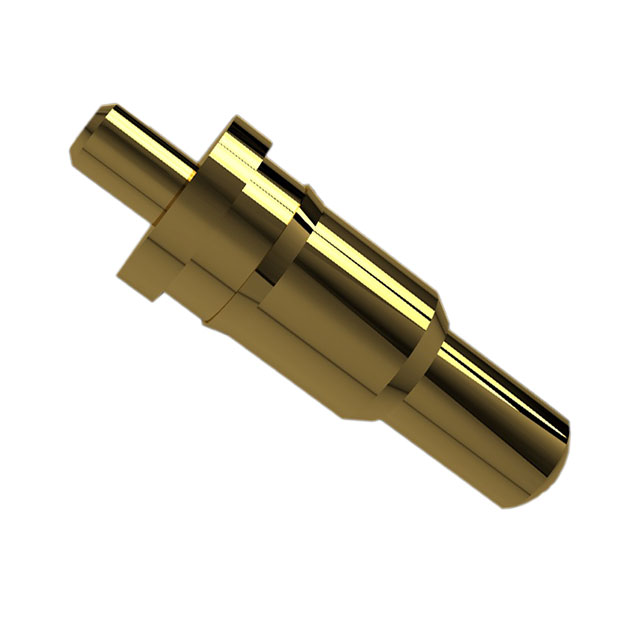

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Initial | Contact Finish | Pad Layout Dimension | Pad Layout Dimension | Operating Force - Mid Compression | Mounting Type | Current Rating (Amps) | Contact Material | Maximum Working Height [Max] | Maximum Working Height [Max] | Plunger Size [diameter] | Plunger Size [diameter] | Minimum Working Height | Minimum Working Height | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | Sleeve & Plunger (Pogo Pins) | 20 µin | 0.51 µm | 25.49 gf | Gold | 0.072 in | 1.83 mm | 61.18 gf | Through Hole | 3 A | Brass Alloy | 0.177 in | 4.5 mm | 0.042 in | 1.07 mm | 3.1 mm | 0.122 in | 40000 |
