1494210 Series

Catalog

SIZE(2.8) FASTON TAB

Part	Length - Overall [x]	Length - Overall [x]	Tab Length	Tab Length	Insulation Diameter	Insulation Diameter	Tab Thickness	Tab Thickness	Gender	Contact Material	Mounting Type	Tab Width	Tab Width	Terminal Type	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Insulation	Length - Overall	Length - Overall
TE Connectivity Raychem Cable Protection 1494210-2	24.4 mm	0.961 in	17.6 mm	0.693 in	3 mm	0.118 in	0.032 in	0.81 mm	Male	Copper Alloy	Free Hanging (In-Line)	2.79 mm	0.11 "	Standard	22 AWG	17.5 AWG	Crimp	Non-Insulated

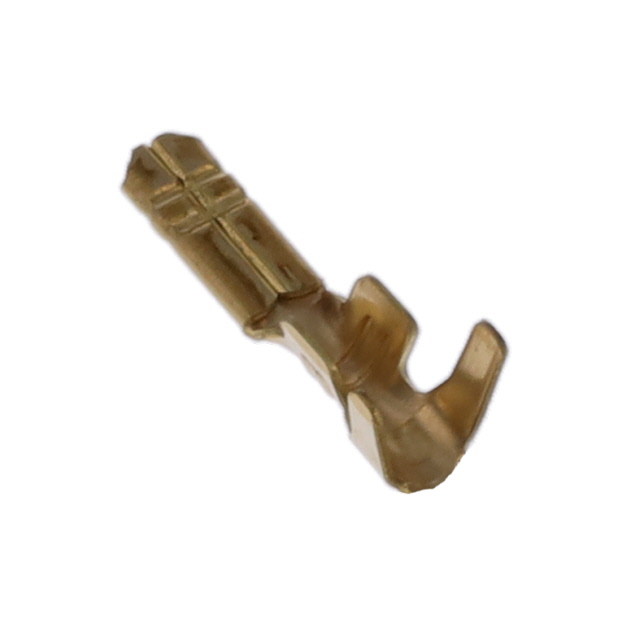

TE Connectivity Raychem Cable Protection 1494210-1			6.6 mm	0.26 in	3 mm	0.118 in	0.032 in	0.81 mm	Male	Copper Alloy	Free Hanging (In-Line)	2.79 mm	0.11 "	Standard	22 AWG	17.5 AWG	Crimp	Non-Insulated	13.2 mm	0.52 "
