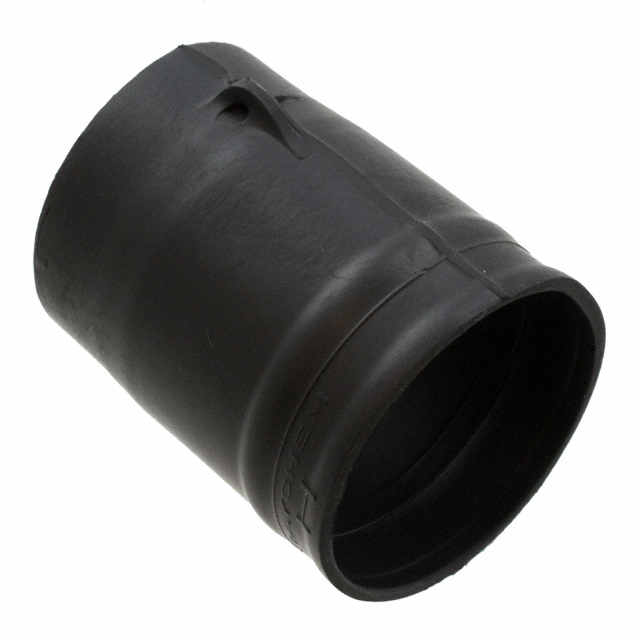

202K132 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT SZ32 BLACK

Part	Small Recovered Length	Small Recovered Length	Total Length Recovered	Total Length Recovered	Material	Large Recovered Length	Large Recovered Length	Large Diameter Supplied	Large Diameter Supplied	Shell Size - Insert	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Type	Features	Color	Small Recovered Length [x]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]
TE Connectivity Aerospace, Defense and Marine 202K132-25-01-0	11.51 mm	0.453 in	1.69 in	42.93 mm	Elastomer Semi-Rigid	20.07 mm	0.79 in	29.97 mm	1.18 in	32	0.559 in	14.2 mm	0.232 "	5.89 mm	Boot	Fluid Resistant Lip	Black
TE Connectivity Aerospace, Defense and Marine 202K132-25/225-CS-1858-0	18.03 mm		2.17 in	55.12 mm	Elastomer Semi-Rigid			29.97 mm	1.18 in	32	0.559 in	14.2 mm	0.232 "	5.89 mm	Boot	Adhesive Coating Eyelet and Clip Fluid Resistant Lip	Black	0.71 in
TE Connectivity Aerospace, Defense and Marine 202K132-12-01-0	11.51 mm	0.453 in	1.69 in	42.93 mm	Fluoroelastomer (FKM) Flexible	20.07 mm	0.79 in	29.97 mm	1.18 in	32	0.559 in	14.2 mm	0.232 "	5.89 mm	Boot	Chemical Resistant Lip	Black

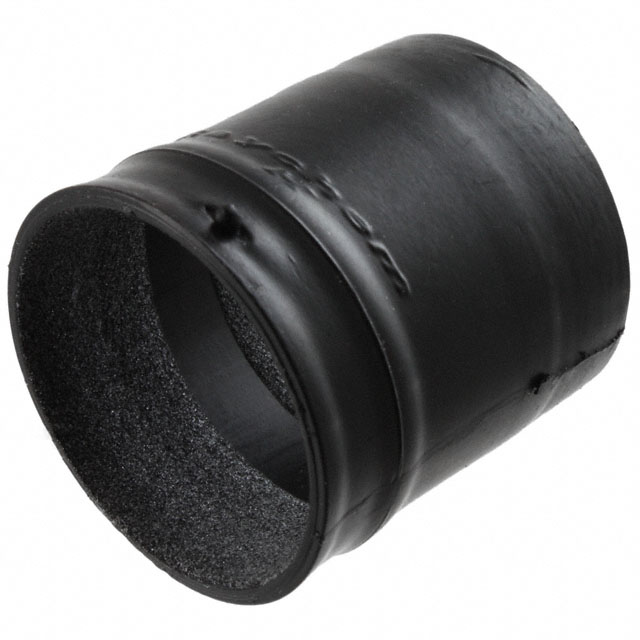

TE Connectivity Aerospace, Defense and Marine 202K132-25/225-0	18.03 mm		2.17 in	55.12 mm	Elastomer Semi-Rigid			29.97 mm	1.18 in	32	0.559 in	14.2 mm	0.232 "	5.89 mm	Boot	Adhesive Coating Fluid Resistant Lip	Black	0.71 in
TE Connectivity Aerospace, Defense and Marine 202K132-12-00-0	18.03 mm		2.17 in	55.12 mm	Fluoroelastomer (FKM) Flexible			29.97 mm	1.18 in	32	0.559 in	14.2 mm	0.232 "	5.89 mm	Boot	Chemical Resistant Lip Potting (Injection) Port	Black	0.71 in	0.551 in	14 mm

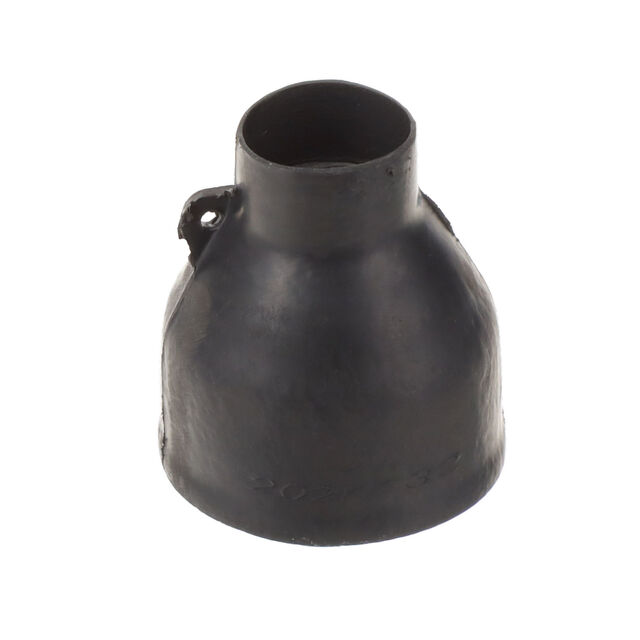

TE Connectivity Aerospace, Defense and Marine 202K132-100-01/86-0	11.51 mm	0.453 in	1.69 in	42.93 mm	Polyolefin (PO) Semi-Flexible Halogen Free	20.07 mm	0.79 in	29.97 mm	1.18 in	32	0.559 in	14.2 mm	0.232 "	5.89 mm	Boot	Adhesive Coating Lip	Black
TE Connectivity Aerospace, Defense and Marine 202K132-12-0	18.03 mm		2.17 in	55.12 mm	Fluoroelastomer (FKM) Flexible			29.97 mm	1.18 in	32	0.559 in	14.2 mm	0.232 "	5.89 mm	Boot	Chemical Resistant Lip	Black	0.71 in	0.551 in	14 mm
TE Connectivity Aerospace, Defense and Marine 202K132-3-01-CS-2068-0	11.51 mm	0.453 in	1.69 in	42.93 mm	Polyolefin (PO) Semi-Rigid	20.07 mm	0.79 in	29.97 mm	1.18 in	32	0.559 in	14.2 mm	0.232 "	5.89 mm	Boot	Flame Retardant Lip	Black

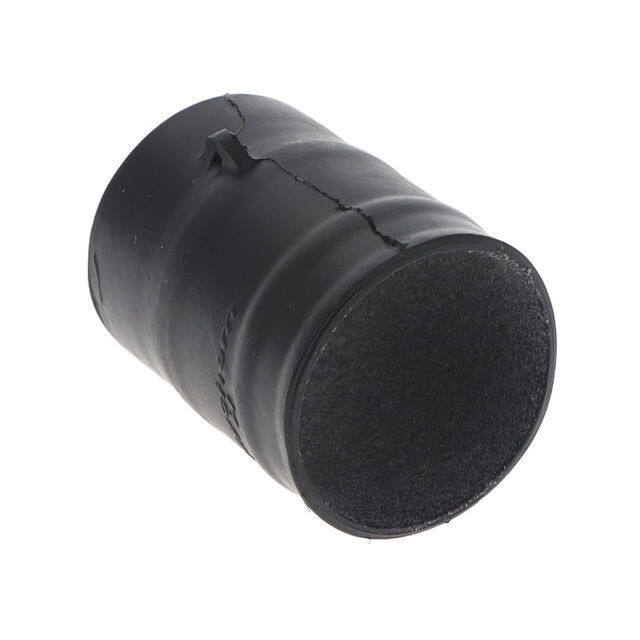

TE Connectivity Aerospace, Defense and Marine 202K132-25/225-CS-2065-0	18.03 mm		2.17 in	55.12 mm	Elastomer Semi-Rigid			29.97 mm	1.18 in	32	0.559 in	14.2 mm	0.232 "	5.89 mm	Boot	Adhesive Coating Fluid Resistant Lip	Black	0.71 in
TE Connectivity Aerospace, Defense and Marine 202K132-25-01/42-0	11.51 mm	0.453 in	1.69 in	42.93 mm	Elastomer Semi-Rigid	20.07 mm	0.79 in	29.97 mm	1.18 in	32	0.559 in	14.2 mm	0.232 "	5.89 mm	Boot	Adhesive Coating Fluid Resistant Lip	Black
